Tilta Cage
Aluminum for BMPCC6K FF L BSC
- Aluminum Full Cage Basic Kit
- For BMPCC 6K Full Frame L-Mount
- 1/4" Threads w Locating Pins
- Cold Shoe / Arca Swiss Baseplate
Introducing the redesigned Basic Camera Cage Kit for the Blackmagic Cinema Camera 6K!
The foundation of this Camera Cage for the BMCC 6K (Full Frame) provides protective armor for the camera body and allows users to secure different accessories to improve the camera’s functionality.
This updated version features a top plate that perfectly aligns with the 1/4″-20 thread on the top of the Full Frame camera body which is not currently compatible with our previous version of this cage.
The new design also feature two screws to connect the cage to the bottom of the camera which creates an incredibly secure three points of contact.

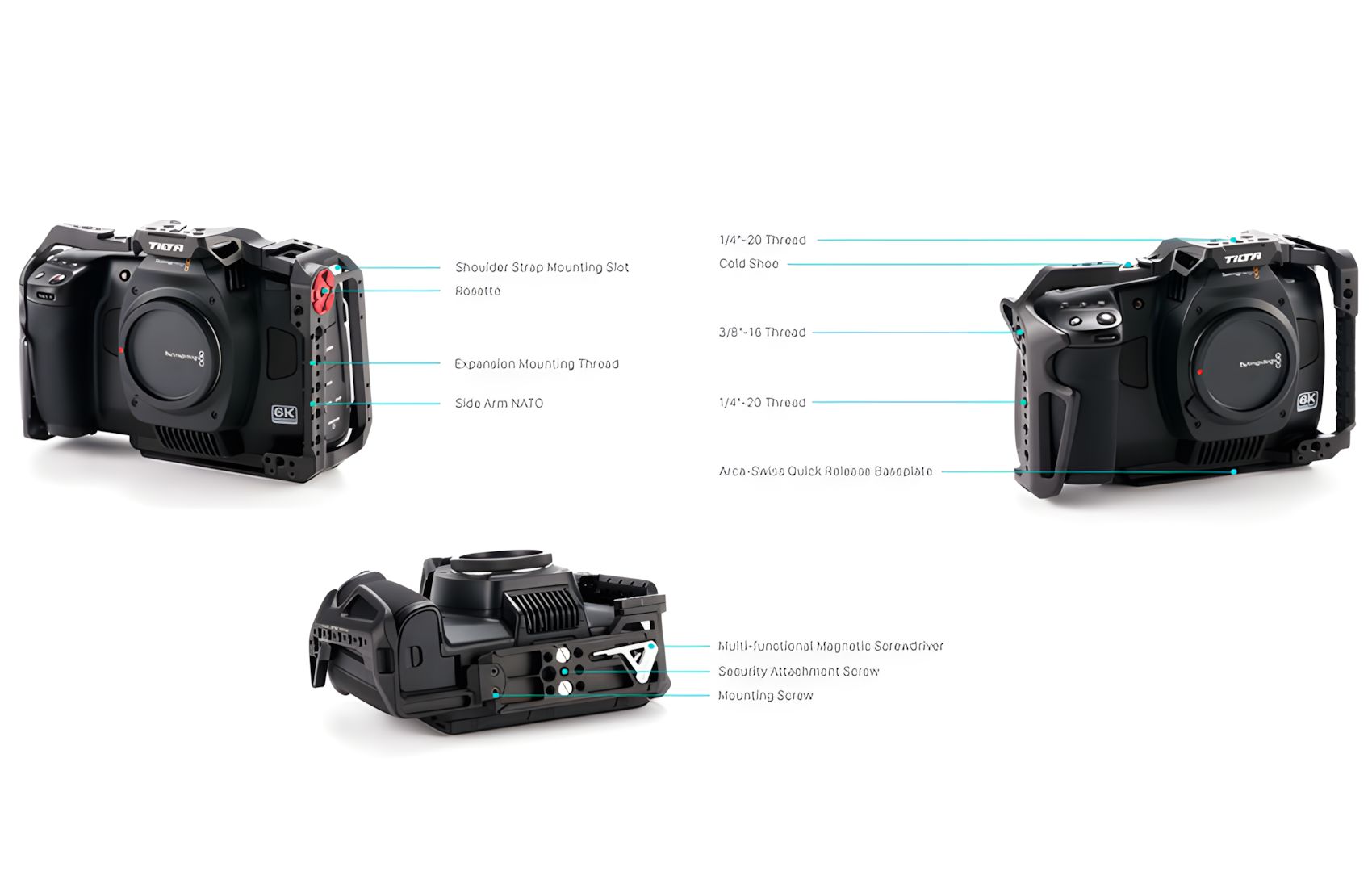

The Full Cage offers several 1/4”-20 threads with locating points, cold shoe receivers, an Arri compatible rosette and a NATO Rail for NATO based Side Handles and accessories.
The right side arm module can be removed to turn this Full Cage into a Half Cage, which offers more flexibility in situations where lighter builds are required, such as when using a gimbal.
The Bottom Plate provides several 1/4″-20 mounting points for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the DJI RS3 Pro.

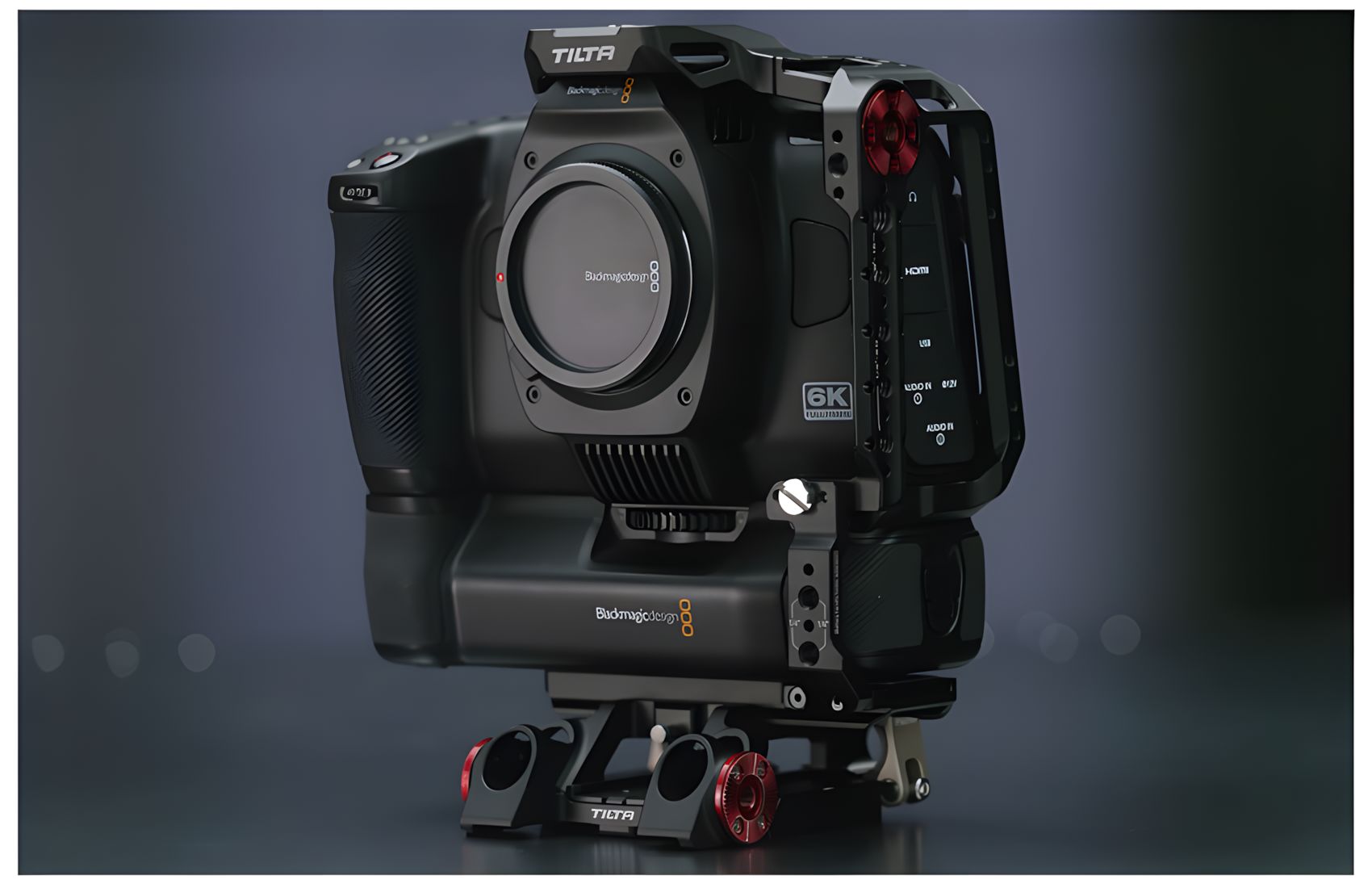

When using the Half Cage, the bottom plate can be extended to support the Black Magic Design Battery Grip and includes a 15mm Rod Holder to use rod based accessories in the correct LWS alignment with the Battery Grip.

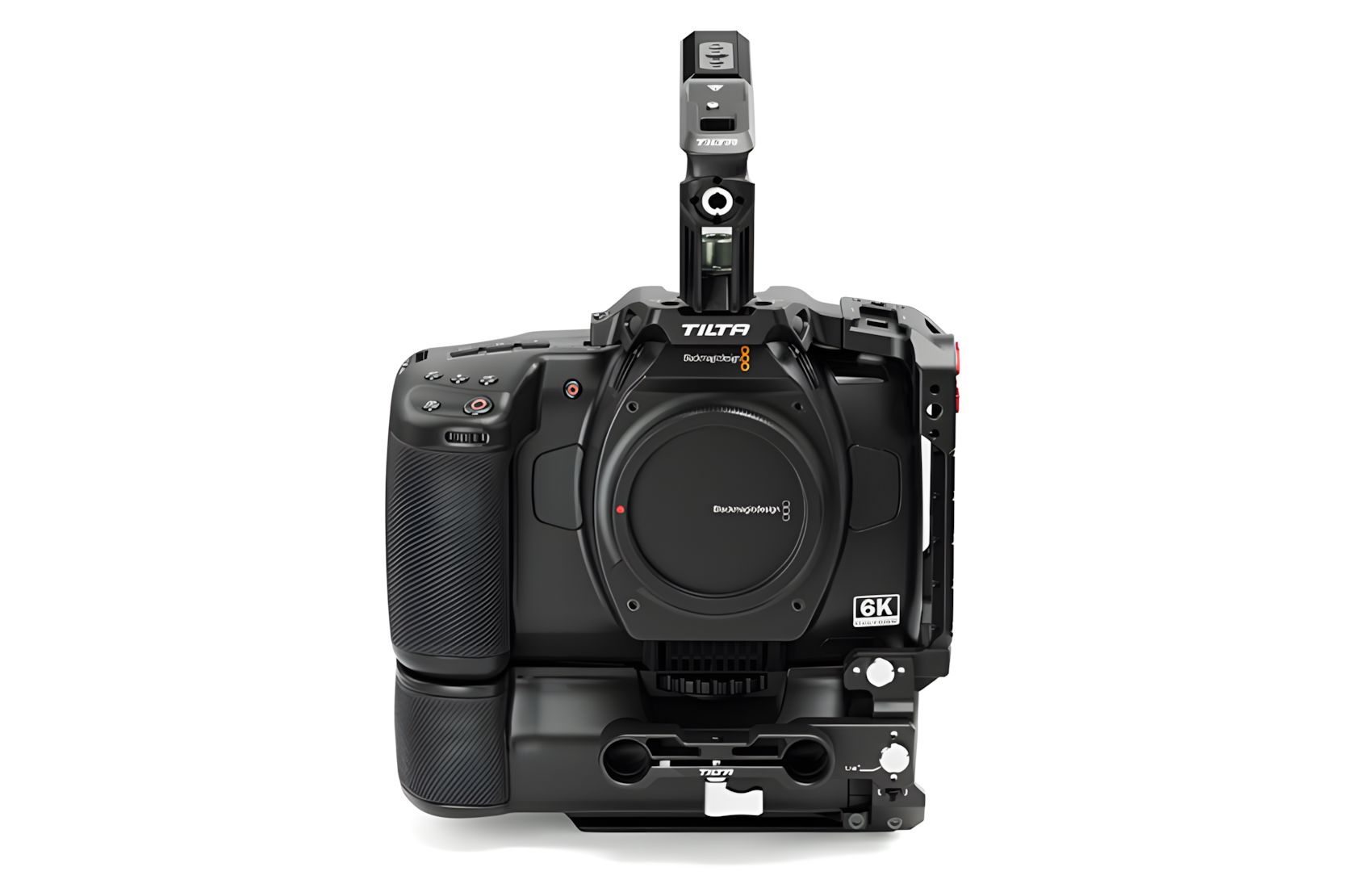

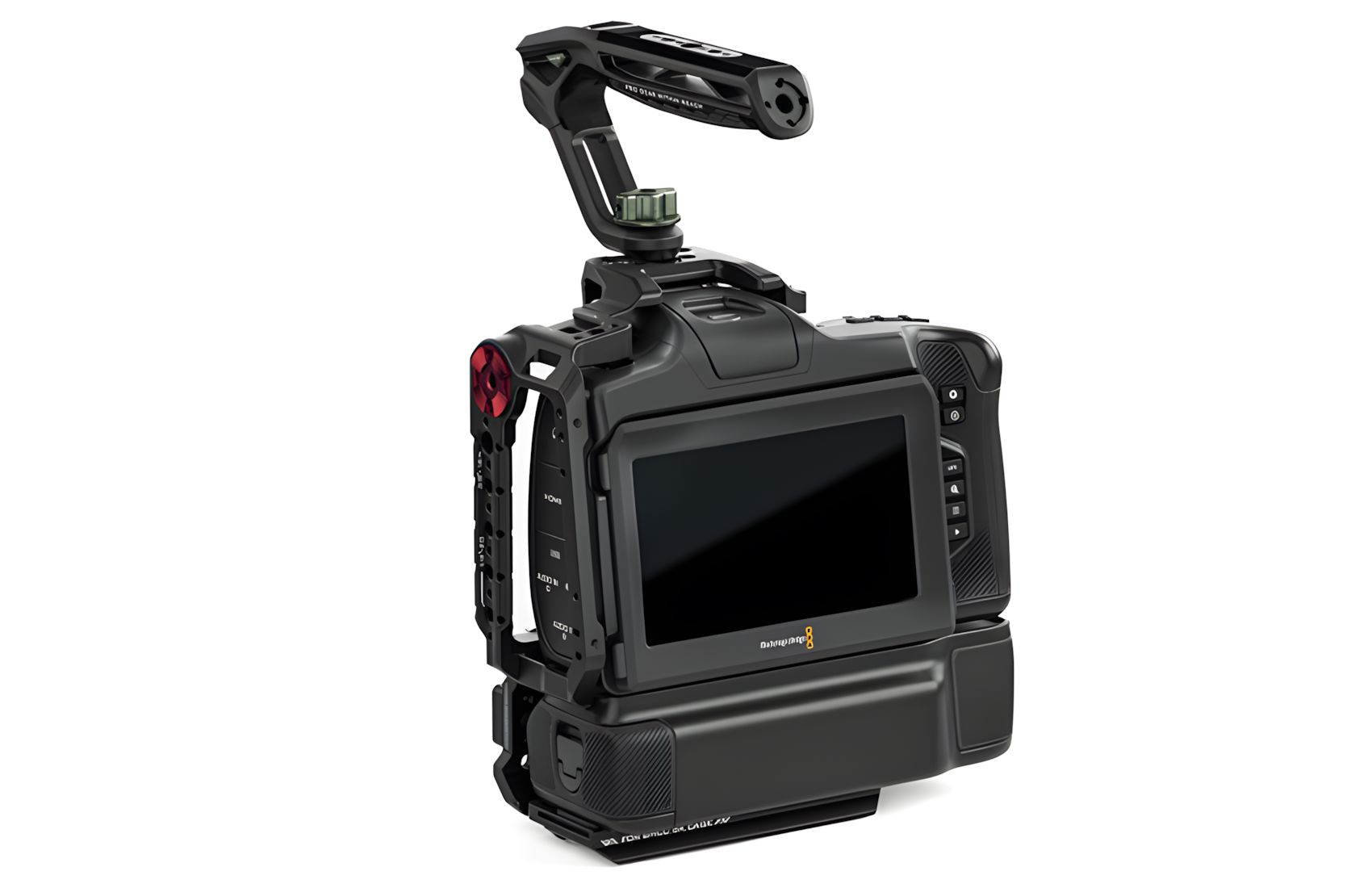

Included in the Basic Kit is the Xeno Top Handle which mounts to the cage via a 1/4″-20 screw with locating pins.
The handle features a silicone padded grip, which makes handling more comfortable while featuring numerous mounting points for additional accessories such as a cold shoe receiver, 1/4″-20 and 3/8″-16 threads.
The included 90 Degree HDMI Adapter attaches to the cage near the HDMI port which offers a secure connection that limits wear on the port.
The kit also includes an SSD Drive Holder that mounts via a 1/4″-20 screw with a locating pin, and allows users to clamp down on a Samsung T5 SSD drive for external recording.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Type
-
Cage
GENERAL FEATURES
- KIT Includes
-
Battery Grip Connector
Handle
Removable Cage
SSD Mount
- Suitable for
-
Blackmagic Pocket Cinema Camera 6K FF L-Mount
- Handles
-
Yes, one upper handle
- Color
-
Black
- Rods
-
Only Rail Mounts (Optional Rods)
- Material
-
Aluminum
Stainless Steel
- Camera Mount
-
1/4" Screw
- Tripod Mount
-
1/4" Thread
- Accessory Mount
-
1/4" Threads
3/8" Threads
Cold Shoe
Nato Rails
Rosette
Arca Swiss
MORE SPECIFICATIONS
- Country of Origin
-
China
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 28.9 x 22.9 x 10.9 cm
- Total Weight
- 1.13 kg

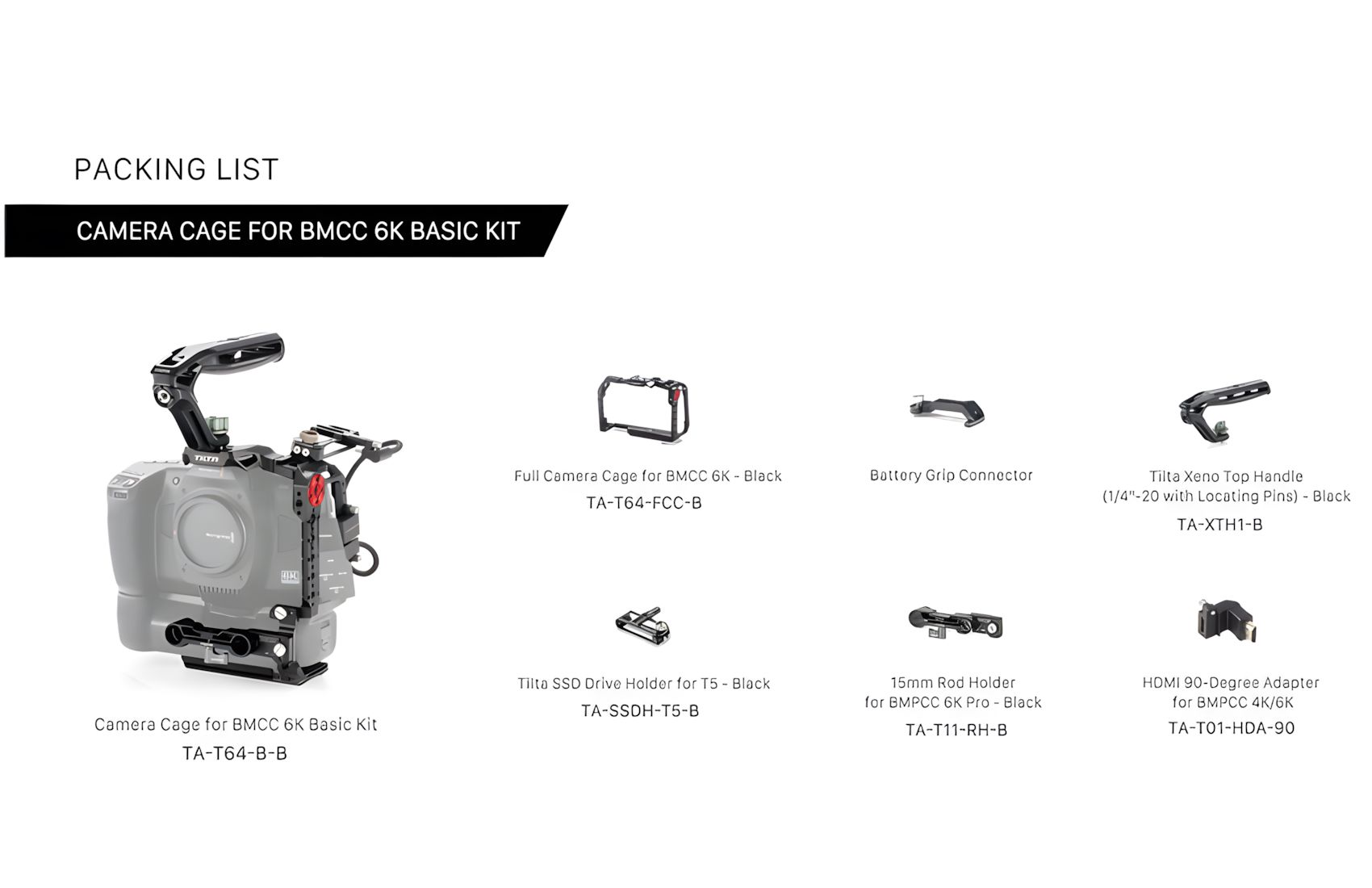

- 1x Full Camera Cage for BMCC 6K – Black（TA-T64-FCC-B)
- 1x Tilta Xeno Top Handle (1/4″”-20 with Locating Pins) – Black（TA-XTH1-B)
- 1x Tilta SSD Drive Holder for T5 – Black（TA-SSDH-T5-B)
- 1x 15mm Rod Holder for BMPCC 6K Pro – Black（TA-T11-RH-B)
- 1x HDMI 90-Degree Adapter for BMPCC 4K/6K（ TA-T01-HDA-90)
-
