Atomos Monitor
Shinobi 7 II
- On-Camera Monitor
- HDMI 4K Input
- Up to 4K 4096x2160 @30P
- 7" LCD 1920x1200 Touch Panel

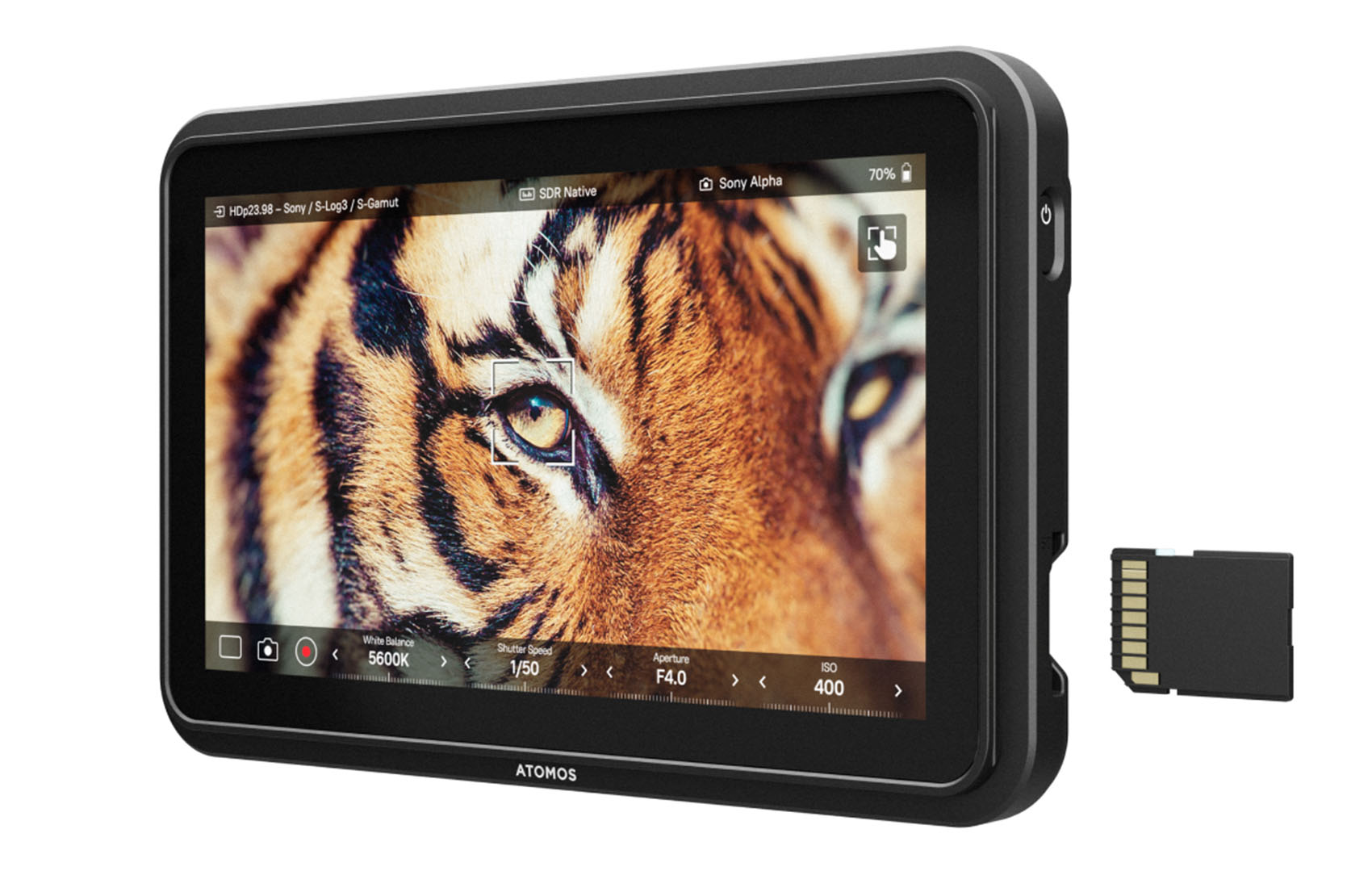

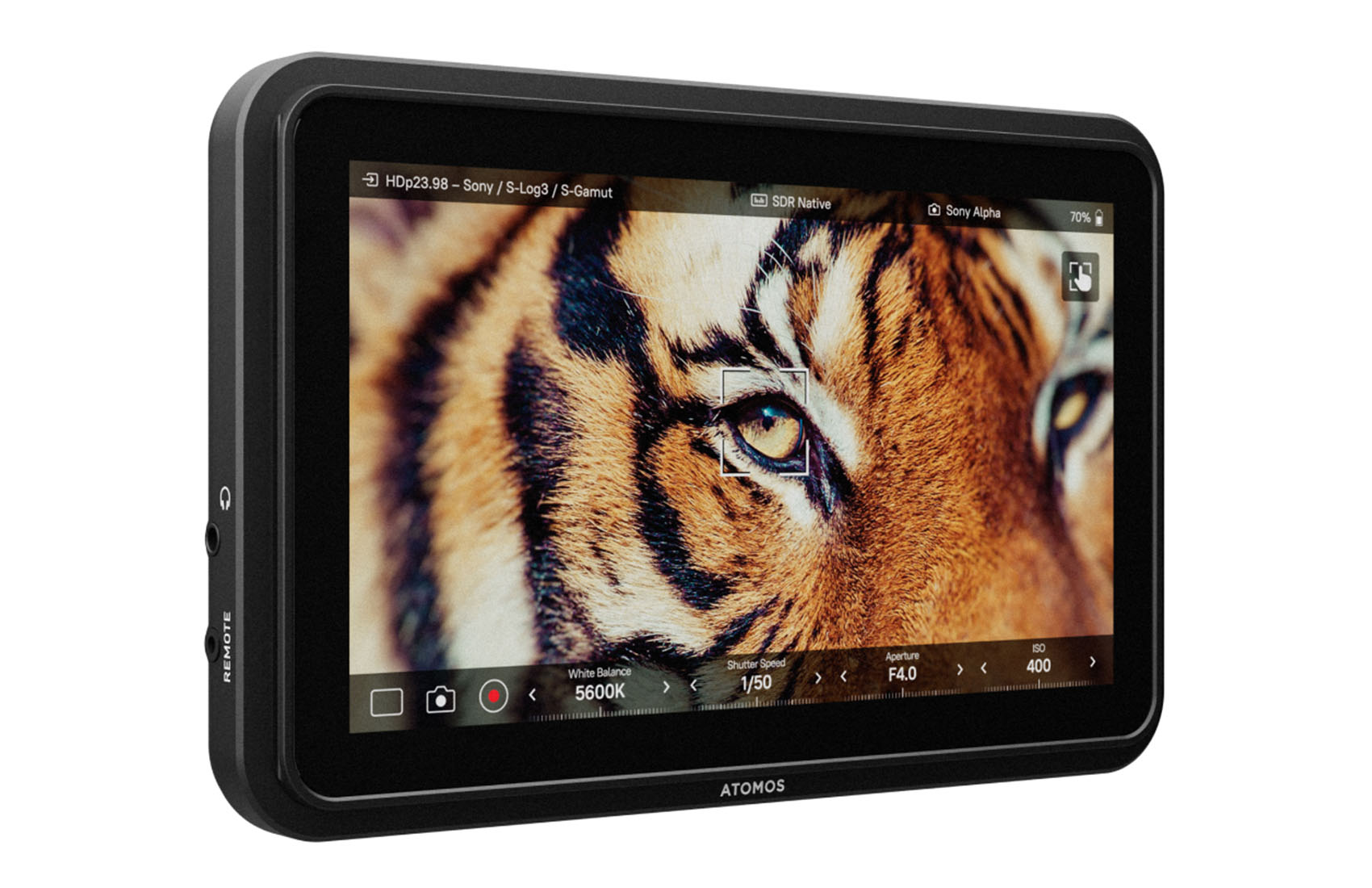

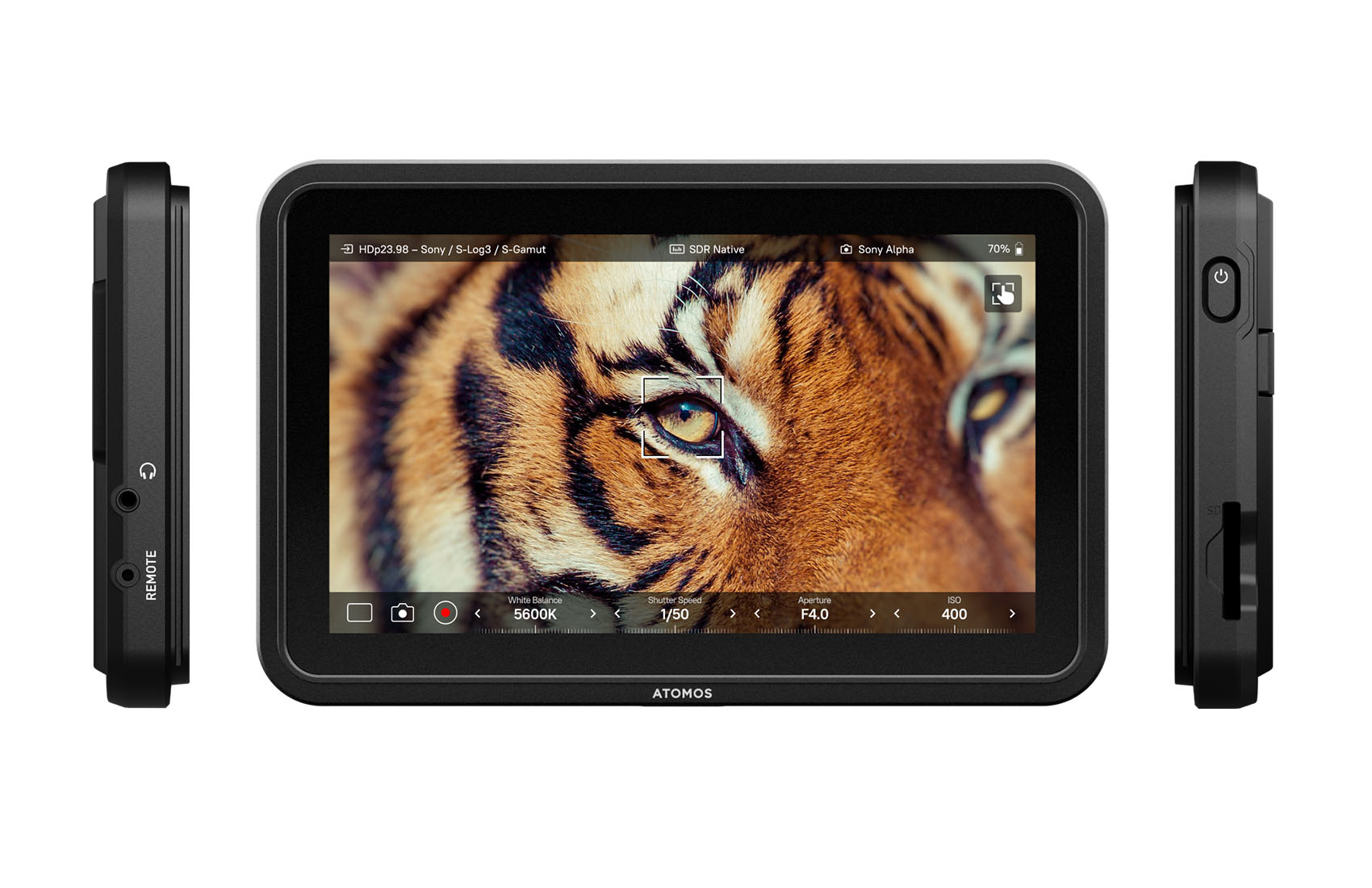

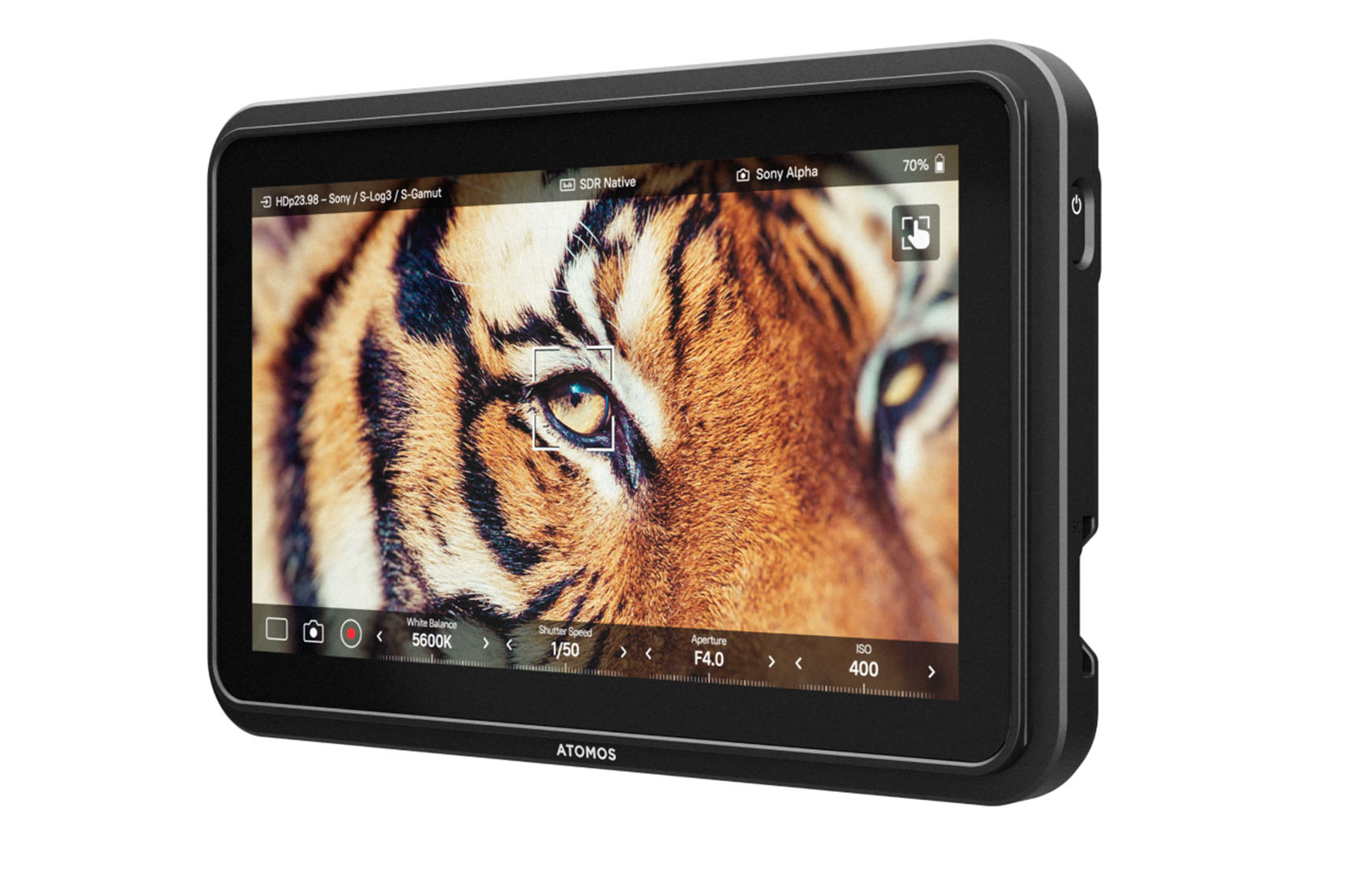

Shinobi 7 II – 7″ Camera Monitor
7-inch, 2800nit touchscreen monitor with HDMI input & output, camera control, touch to focus, and advanced exposure and anamorphic workflow tools
High-Brightness 7-inch touchscreen display
With 2800 nits of brightness and a 1920 × 1200 resolution, Shinobi 7 II delivers clear, detailed monitoring indoors or outside in bright sunlight. It supports Rec.709, PQ and HLG monitoring for HDR and Log workflows.

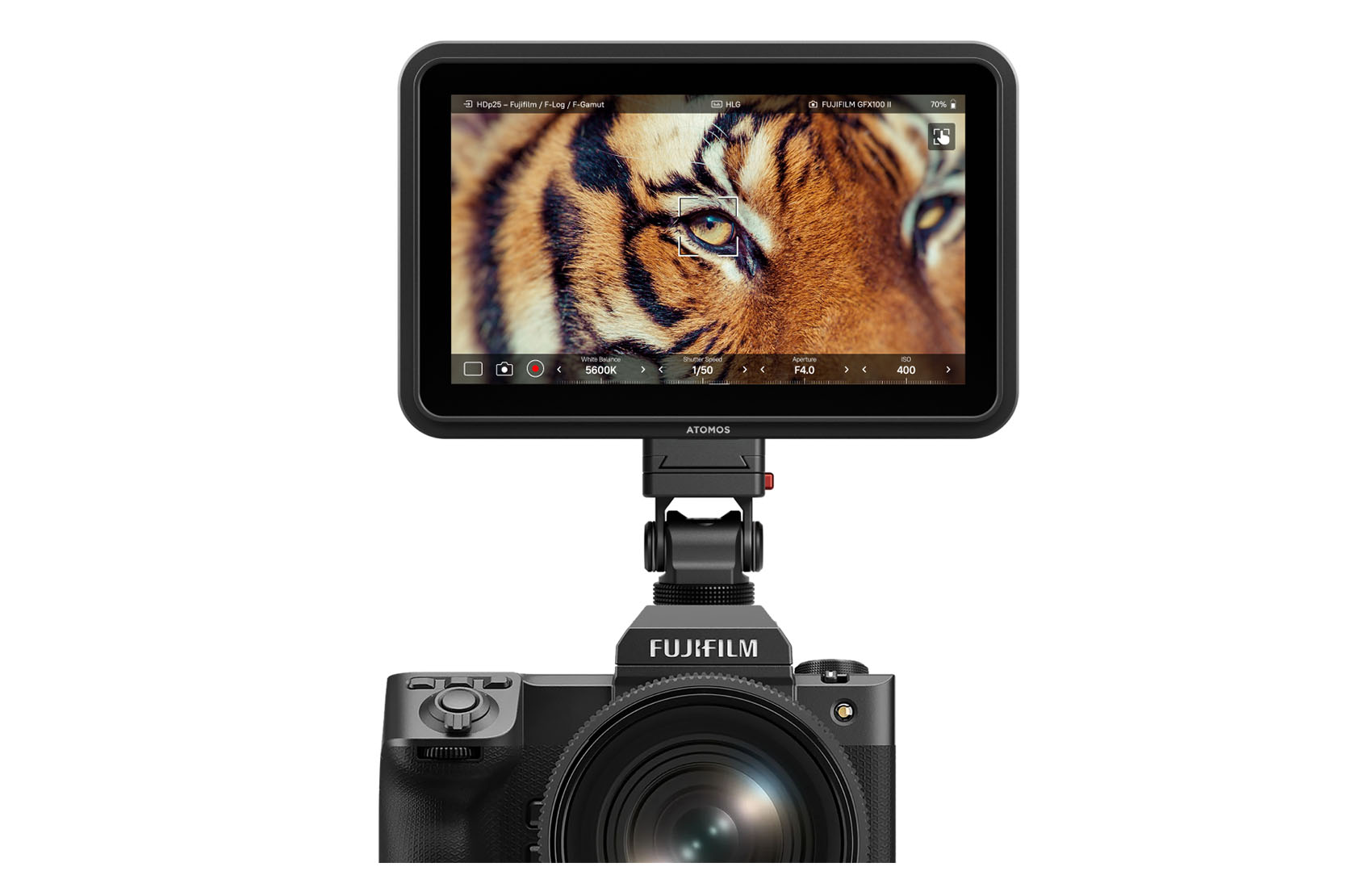

Camera control & touch-to-focus
Using intuitive, on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shinobi 7 II. Control most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (LANC cable required, purchased separately). Tap the Shinobi 7 II touchscreen to have the camera automatically focus on your point of interest. Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control and sharp images.
For a list of compatible camera control and touch-to-focus cameras click here.
Professional monitoring tools
Shinobi 7 II offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, EL Zone™ false color, frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). It also offers anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups, and 16:9 framing for social media.
EL Zone
Shinobi 7 II supports EL Zone, a professional false color exposure tool that helps you see exactly how bright or dark different parts of your image are. Unlike traditional false color systems that use rough IRE ranges, EL Zone assigns specific colors to exact exposure values — based on stops of light, in the same way your camera sees exposure. It’s a precise and consistent way to expose your image correctly every time.
LUTs
Shinobi 7 II can receive LOG signals from the camera and provide real-time LUT (Look‑Up Table) preview to approximate what the final graded image will look like in Rec.709. Custom LUTs (.cube files) can be loaded from SD card and used in conjunction with the built‑in monitoring tools for precise exposure control.
True-to-life display
High brightness
Shinobi 7 II has an ultra-bright 2800nit screen, which is exceptional for daylight shooting, even in bright sunlight.
High dynamic range
You can view 10+ stops of dynamic range from Log/PQ/HLG signals. Shinobi’s unique HDR monitoring features help you simplify the complexities of shooting Log and HDR, because it is possible to replicate post-production workflows when it matters most – while you are shooting.
High fidelity
Calibration is the key to a trustworthy monitor. Shinobi 7 II monitors can be calibrated with Calibrite Display Pro HL / Plus HL probe, and using the Atomos Calibrator app, to maintain accurate HDR and Rec.709 monitoring. Accurate monitoring ensures reliable results.
Connect, monitor and control

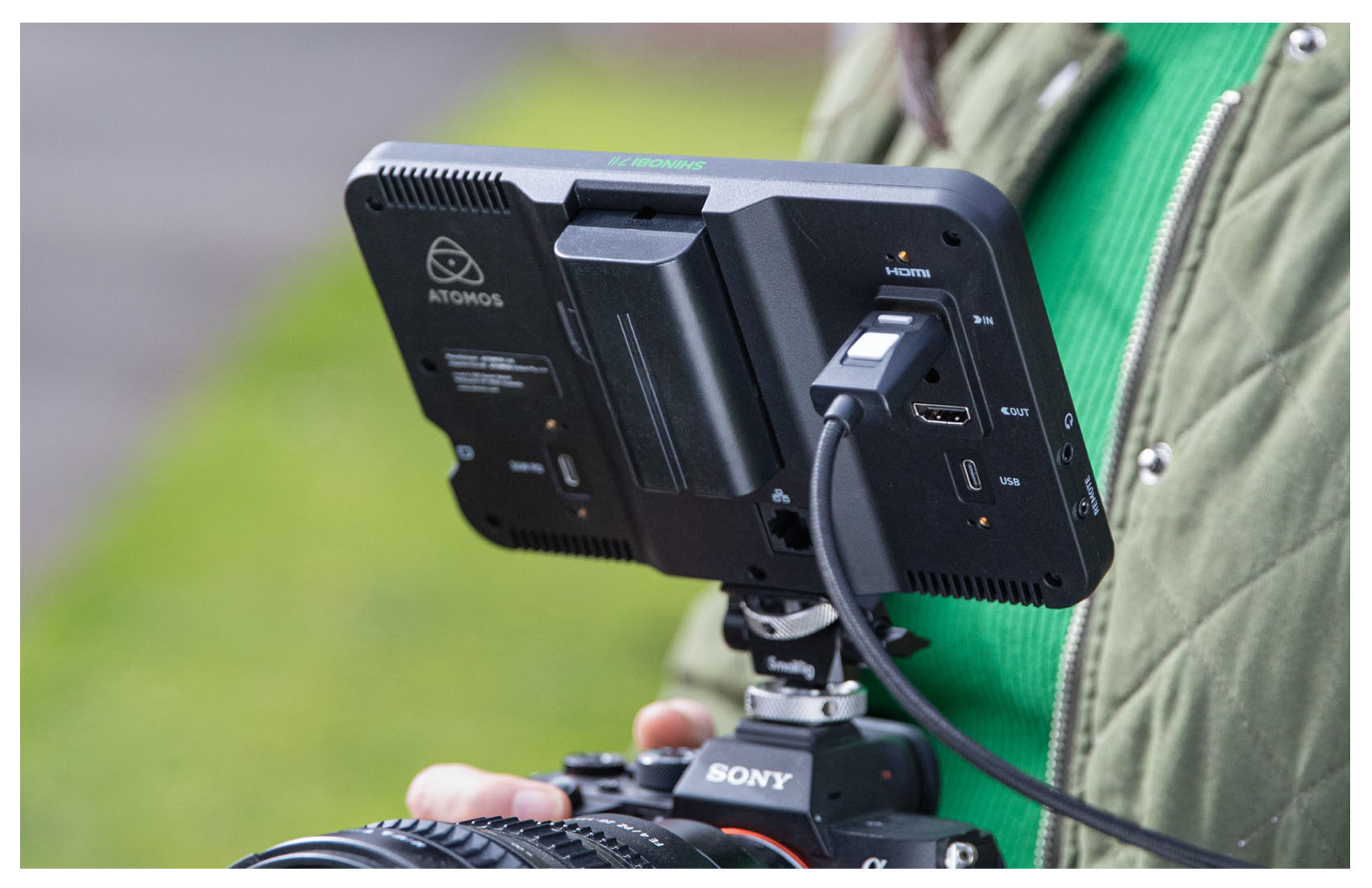

HDMI input and output make Shinobi 7 II easy to integrate into a camera rig or pass the signal through to another display. USB-C connectivity adds compatible camera control, allowing you to adjust key settings directly from the monitor’s touchscreen.
Who is it for?
The Shinobi 7 II is designed for filmmakers, DPs, directors, and ACs who need accurate wireless monitoring in a large, daylight-viewable display. It’s ideal for remote monitoring on set, video village viewing, and mobile production environments where flexibility and reliability are key.
STATUS
- Status
- New
- Availability
- Pre-Order only
- Monitor Type
-
On Camera Monitor
PANEL
- Panel Size
-
7"
- Panel Type
-
LCD IPS
- Panel Resolution
-
1920x1200pixels
- Panel Aspect Ratio
-
16:9
- Contrast
-
Not Specified
- Brightness
-
2800
- Color Depth
-
10-bit
- Viewing Angle
-
Not Specified

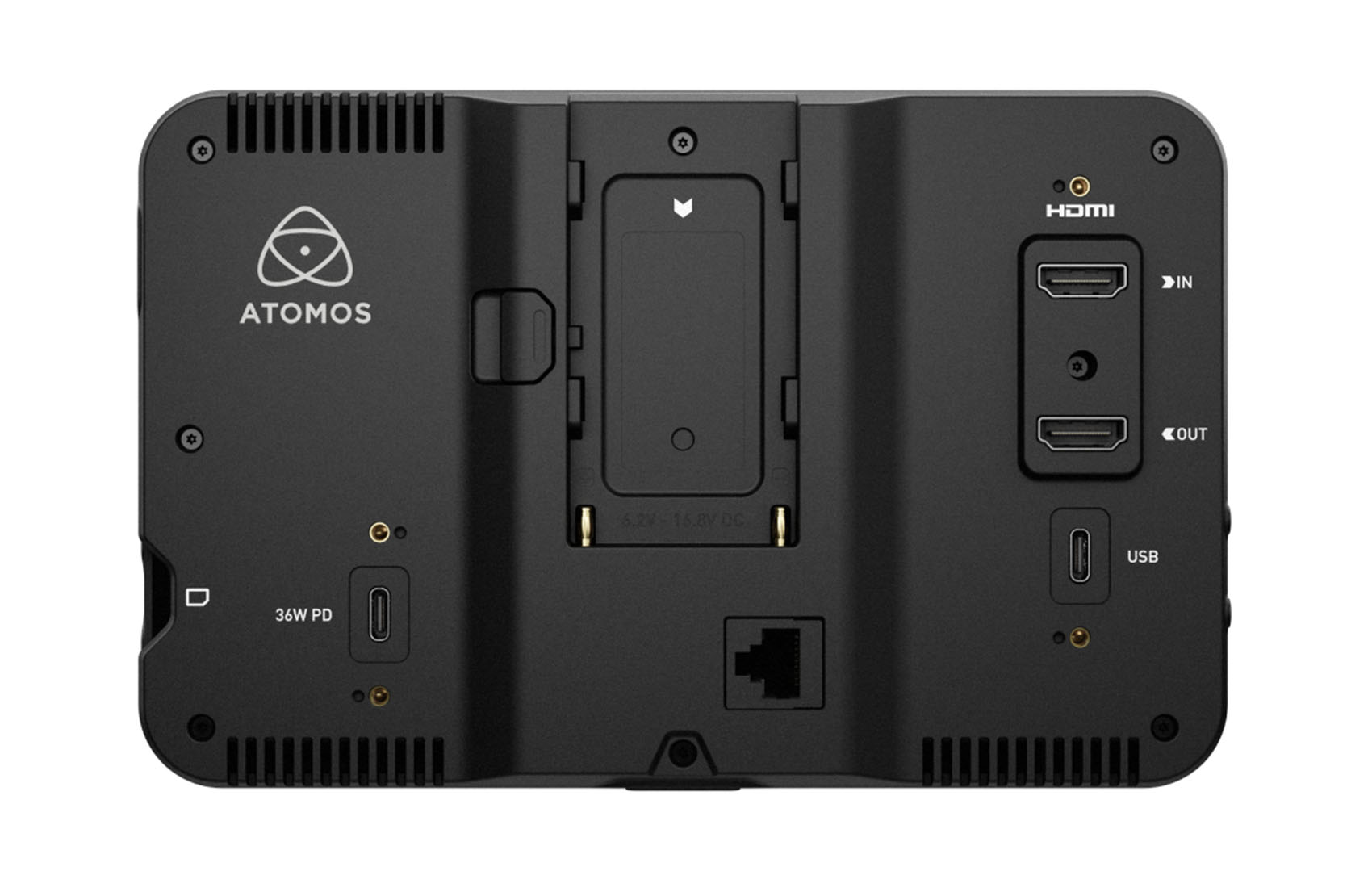

CONNECTIONS
- Video inputs
-
HDMI
- No. of Video inputs
-
1
- Video outputs
-
HDMI 4K
- No. of Video outputs
-
1
- Audio inputs
-
Jack 3.5mm Stereo
8CH embedded audio HDMI
- No. of Audio inputs
-
1/1(8-channel)
- Audio outputs
-
Jack 3.5mm Phones
8CH Embedded Audio HDMI
- No. of Audio outputs
-
1/1(8-Channel)
- PC Connections
-
USB C
WiFi
Bluetooth
- Other Connections
-
Remote (Jack 2.5mm)
GENERAL FEATURES
- Monitor Features
-
Waveform
Vectorscope
Histogram
Zebra
Peaking
Zoom
False Color
Image Flip
Anamorphic
Guides - Safety Marker
3D LUT Support
RGB Parade
Timecode Display
Grids
HDR (high dynamic range)
MORE SPECIFICATIONS
- Extras
-
Camera Control over USB-C.
Touch to Focus.
EL Zone & ARRI false color.
Power through Battery Eliminator purchased separately
- Power
-
USB-C
- No. of battery slots
-
1
- Power Consumption
-
13W
- Country of Origin
-
Australia
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 23.4 x 17.1 x 6 cm
- Dimensions Details
- 188x120x23mm
- Total Weight
- 750 gr
- Shinobi 7 II
- USB-C 2.0 cable
- HDMI & USB-C locking cable adapter
- Quick Start Guide
-
