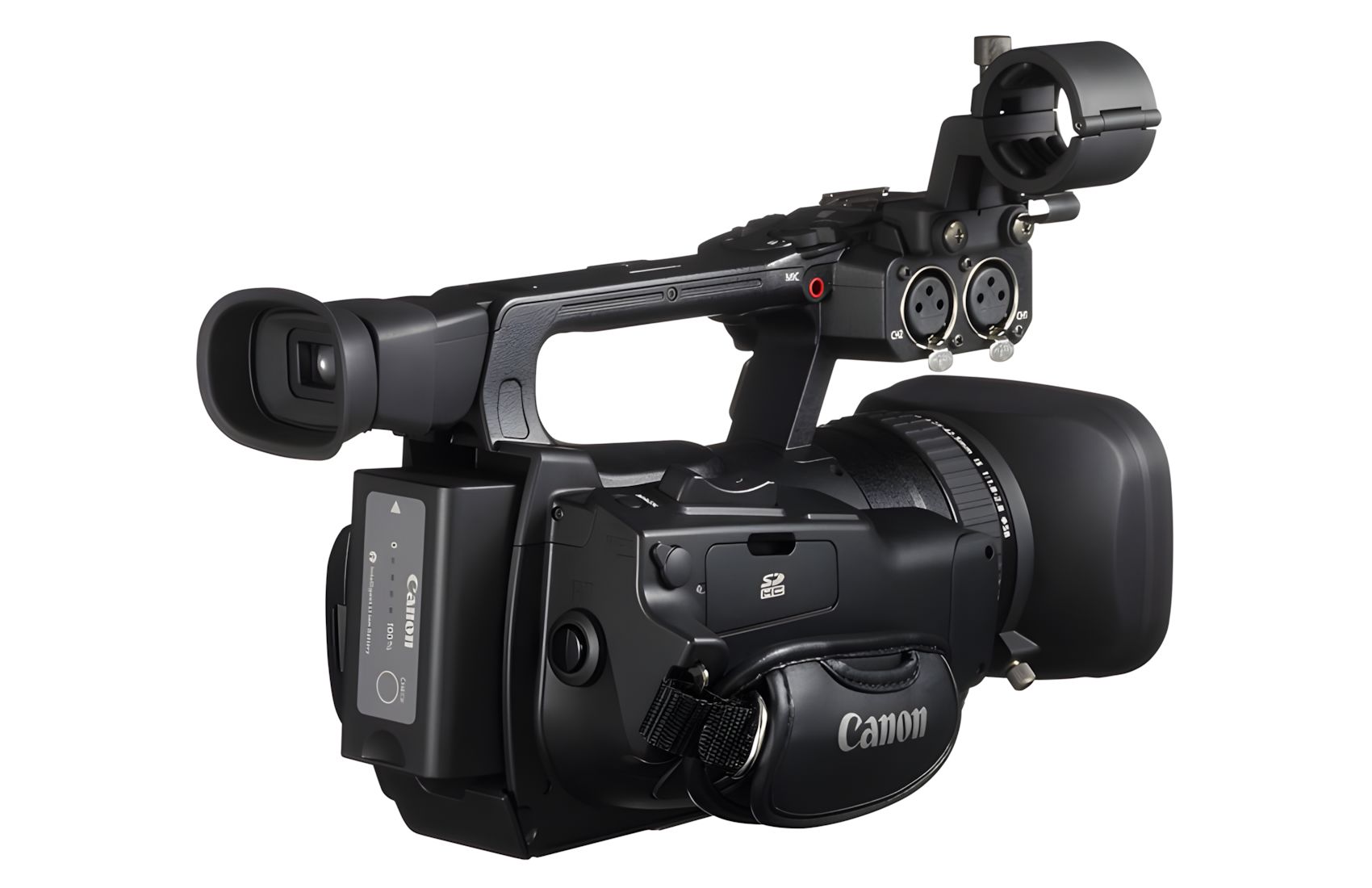

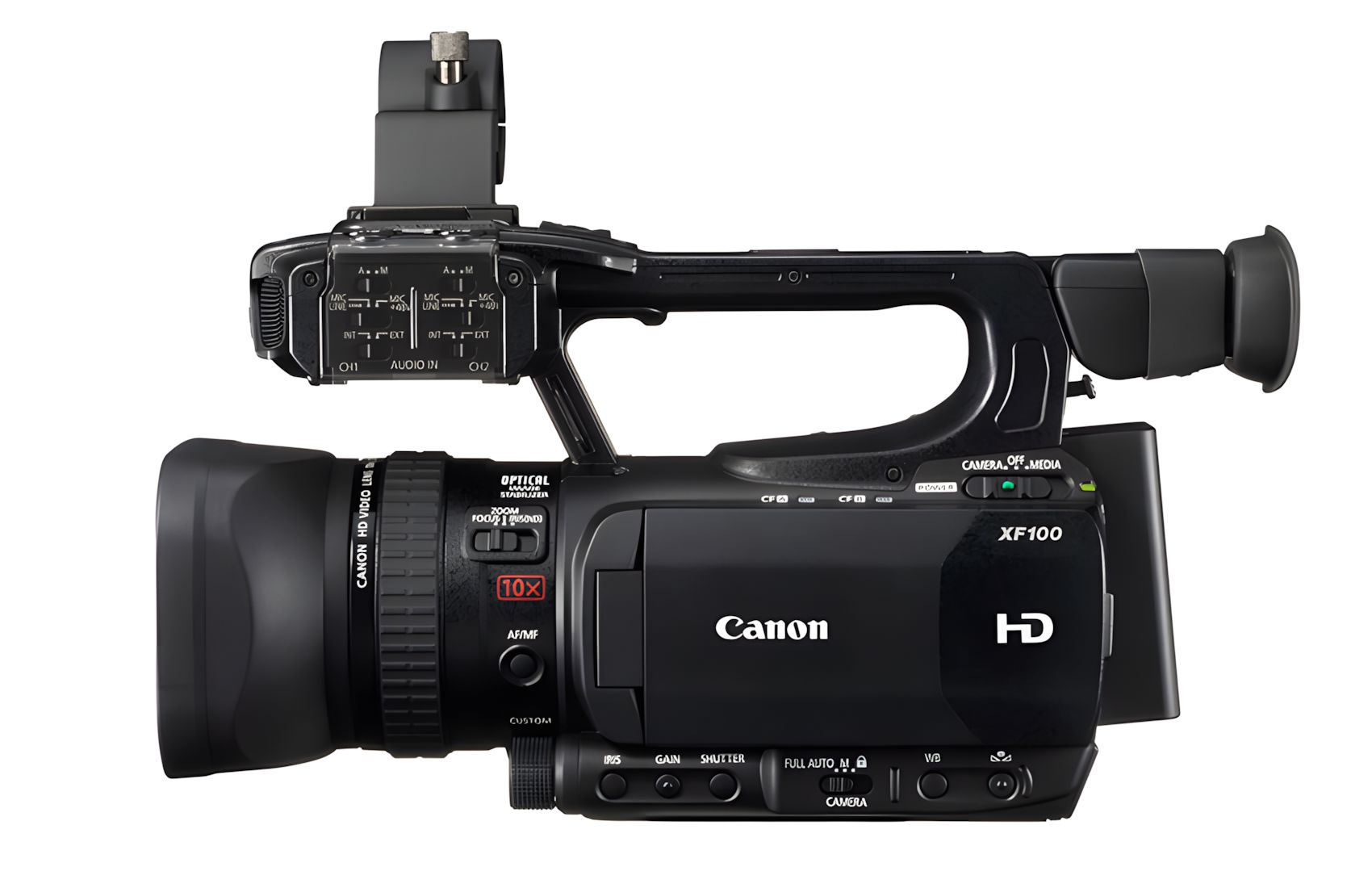

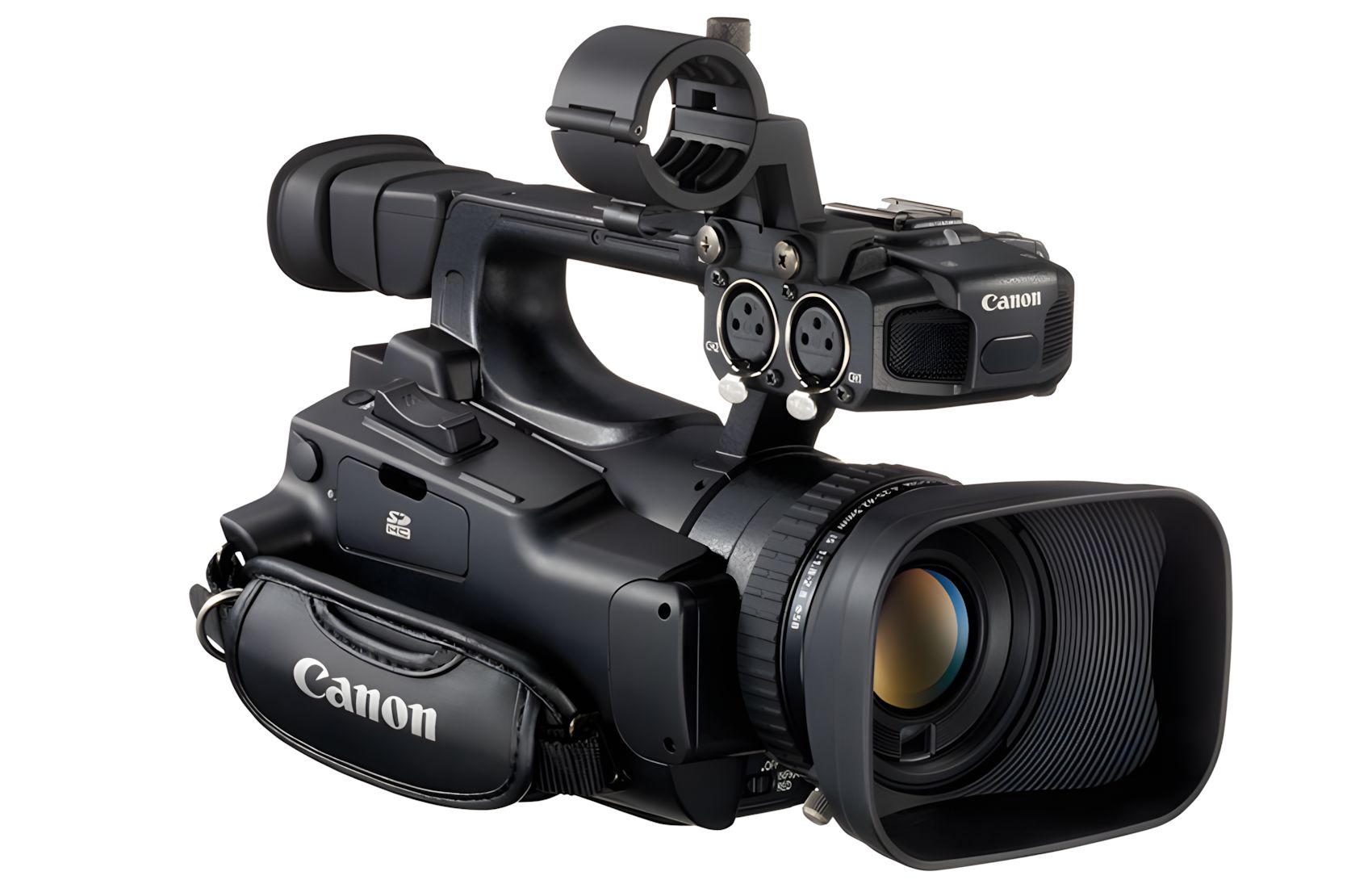

XF100

STATUS

Status

Discontinued

Availability

Available on order: 15 Business Days

Camera Type

Handheld Camera
HD Camera

VIDEO SPECIFICATIONS

Max Video Resolution

HD 720: 1280 x 720pixels (16:9 aspect ratio)
HD 1080: 1440 x 1080pixels (4:3 aspect ratio)

Slow Motion

No

Rec Media

SD/SD-HC/SD-XC Card x1
CF Card x2

STILL IMAGE

Image Format

JPEG

Max Image Resolution

1920x1080pixels (2MP)

LENS SYSTEM

Sensor Type

CMOS

Sensor Size

1/3" (crop factor 7.21)

Sensor Resolution

2.07MP

Lens Mount

Fixed

Focal Length (35mm equivalent)

30.4mm to 304mm (35mm equivalent)

Optical Zoom

10X

Max Aperture

Zoom out: F1.8 to F22
Zoom in: F2.8 to F34

Control Rings

1 Ring(Focus or Zoom or Iris)

Image Stabilizer

Yes

Filter Diameter

58mm

ND Filters

No

CONNECTIONS

Video outputs

HDMI x1
YPbPr (Jack to 3xRCA) x1
CVBS (Jack to RCA) x1

Audio inputs

3-PIN XLR Mic/Line x2
Jack 3.5mm Stereo x1

Audio outputs

Jack 3.5mm Stereo x1
Jack to 2xRCA x1

PC Connections

USB2.0

GENERAL FEATURES

Shutter speed

1/18sec to 1/2000sec

Min. Illumination

4.5LUX

Internal Streaming

No

LCD

3.5"

Viewfinder

0.24"

MORE SPECIFICATIONS

Extras

SD-HC Card only for Photo Capture

Power

Canon BP-975 Type battery
Power adapter

No. of battery slots

1

Power Consumption

5.1W(7.4V/0.68A - 8.4V/0.6A)

Country of Origin

Japan

Warranty

1 Year

PHYSICAL

Total Dimensions (LxWxH)

13.9 x 19.1 x 26.8 cm

Total Weight

1.12 kg
