TVLogic

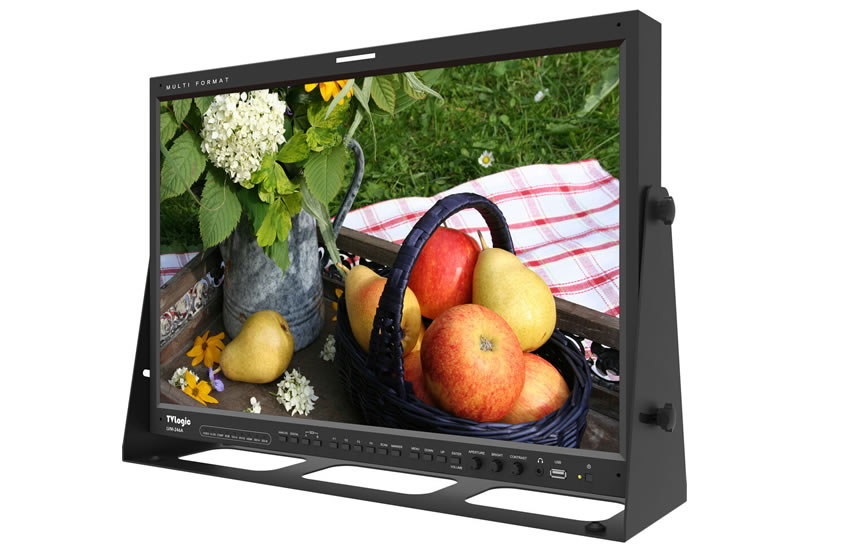

Monitor 24-Inch Full HD 3G-SDI

MFR #TVL-LVM-246ABLK #395-0107
Τιμή: € 3032.05 + ΦΠΑ
Online τιμή: € 2910.77 + ΦΠΑ
✓ Σε 6 άτοκες δόσεις ή μέχρι 36 έντοκες δόσεις.

  • Preview Monitor
  • LCD IPS 24", 1920x1200 Resolution
  • 2x 3G/HD/SD-SDI IN/OUT
  • HDMI, DVI IN
  • 3BNC (Composite) IN/OUT
  • Ethernet and USB connections
  • Contrast: 1000:1 - Brightness: 600nits
  • Focus Assist / WFM / Vectorscope

Μοιράσου το προϊόν

24-Inch Full HD 3G-SDI

24" Full HD Professional LCD Monitor



24" FHD for Multi Purpose Monitoring Applications

The LVM-246A is a balanced monitor between reasonable price and high performance. Supporting various video interfaces and providing professional features.



The LVM-246A is a balanced monitor between reasonable price and high performance.

Supporting various video interfaces and providing professional features.



Product Highlights
• 24” Full HD Resolution (1920 x 1200)
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• H/V Delay
• Luma(Y’) Zone Check
• Range Error
• User Aspect
• Various Scan Modes
• Closed Caption (CC-608, CC-708)
• Tally



3G-SDI Level A/B
Supports 3G-SDI Level A/B input.



Closed caption



Focus Assist
Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.



UMD
Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.



Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
