SlideKamera

Electric Motor X-Head-Studio

MFR #HGN-6v4
Price: € 5247.94 + VAT
Online price: € 5038.02 + VAT
✓ Installment payments by credit card.

  • Pan/Tilt Head for Camcranes
  • 16KG Payload
  • Wireless Control w Android
  • 360degrees X-axis & Y-axis
  • Max speed: 72degrees/sec
  • 3 Memory banks - store the motion
  • 10-17V external power
  • High Quality

Share this product

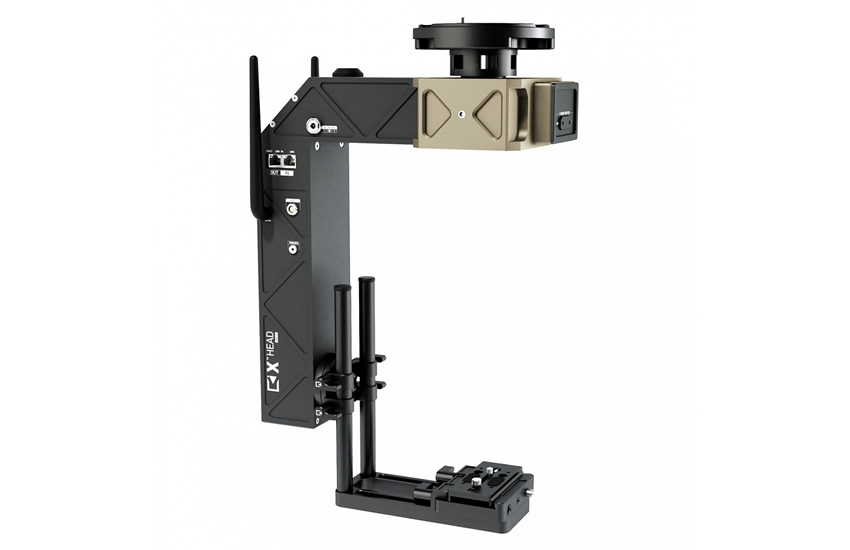

X-Head-Studio

This reinforced version of reliable X-HEAD is designed to work in a professional studio environment. The heavyweight gearbox, previously used only in panorama axis has been applied as well in the tilt axis. The new X-HEAD STUDIO has increased payload capacity and higher stability for precise motion.

The previous iteration, the lighter X-HEAD MK  III, is still available for less demanding applications.

REINFORCED GEARBOXES
Strengthened housing and redesigned mechanics, apart from increasing payload capacity, makes this head more stable and less prone for vibrations.

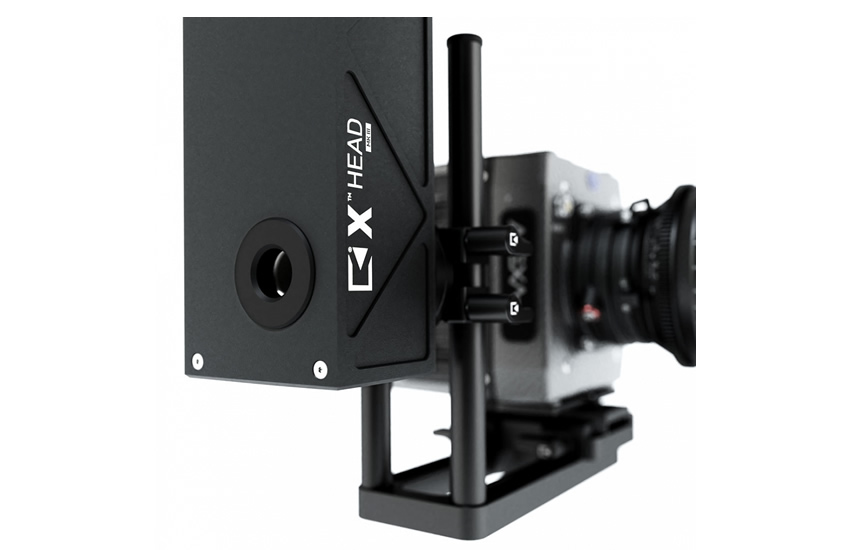

The new mounting bracket is suitable for large, broadcast and cine cameras.

OPTIONAL AION 2D CONTROLLER
  • simple and lightweight
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path

INTEGRATED WIRELESS ADAPTER
The X-HEAD STUDIO has a built-in SLIDELINK PRO adapter - a wireless WiFi & RF module .
The head is equipped with a LEMO connector that supports communication and power supply for the PDMOVIE drives (Lens Control System).

OVERSLUNG AND UNDERSLUNG

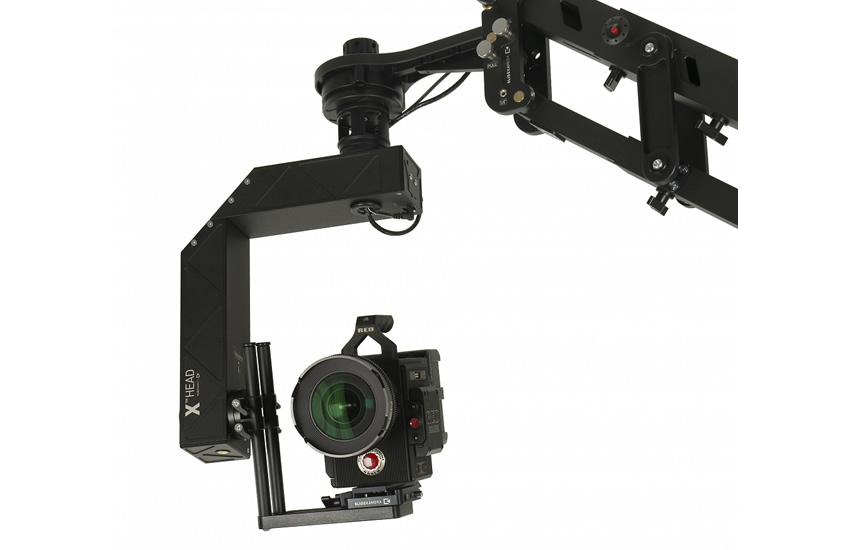

The head is designed to work underslung (hanging down) on jibs, cranes, or overhang sliders, and this way it works best. Thanks to the reinforced gearboxes, it can also work overslung (upright) on tripods, sliders, etc.
Note that the rigidity of the system might be decreased and a payload capacity should be reduced in the overslung mode.
