BlackMagic
Converter 2110 IP Mini BiDirect 12G SFP
MFR #CONVNVIPF/IP/12GSFP
Τιμή:
€ 368.61 + ΦΠΑ
Online τιμή:
€ 353.87
+ ΦΠΑ
✓ Σε 6 άτοκες δόσεις ή μέχρι 36 έντοκες δόσεις.
- Bidirect Converter & Talkback
- 12G/HD/SD-SDI to SFP
- 1x 5-pin XLR Talkback
- Up to DCI/UHD 4K60 Video
- 10G Ethernet 2110
- USB-C for Firmware
- Power Supplier is included
- Lightweight

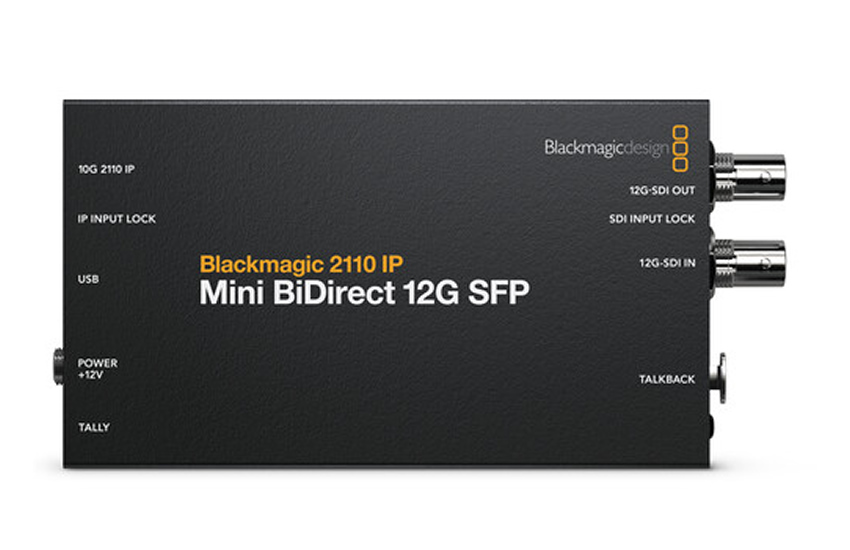

2110 IP Mini BiDirect 12G SFP
Blackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G SFP also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules. It also includes a 12 DC power supply.
SDI Video Inputs
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs/Outputs
1 x 10G Ethernet
Analog Audio Inputs
1 x 5 pin XLR Talkback.
Analog Audio Outputs
1 x 5 pin XLR Talkback.
SDI Audio Inputs
16 Ch embedded audio on SDI input.
SDI Audio Outputs
16 Ch embedded audio on SDI loop output.
SMPTE ST 2110 IP Audio Inputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Reclocking
Yes
Ethernet
1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
Computer Interface
1 x USB-C 3.0 for configuration and firmware updates.
Πηγή: https://www.blackmagicdesign.com/products/blackmagic2110ipconverter/techspecs/W-CONIP-05
