Argosy

Panel 1U 2x32 4K BNC Patch panel 12G

MFR #100521
Τιμή: € 939.76 + ΦΠΑ
Online τιμή: € 902.17 + ΦΠΑ
✓ Σε 6 άτοκες δόσεις ή μέχρι 36 έντοκες δόσεις.
⌦ Διαθέσιμα σε 15 μέρες κατόπιν παραγγελίας.

  • Termination Panel 2x32 sockets
  • Rackmount Unit - 1U
  • 64x 4K UHD BNC Connectors
  • Max. Frequency: 12GHz
  • Easy Adjustment
  • Black Color
  • Durable Material
  • High Quality

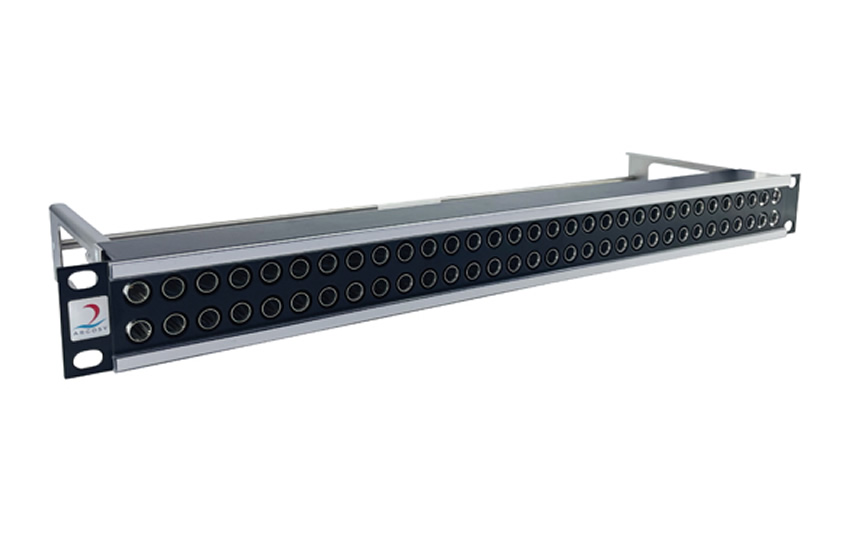

1U 2x32 4K BNC Patch panel 12G

The Argosy 4K UHD BNC termination panels are design for use in 2160p full HD video circuits. These panels offer exceptional electrical performance at 12GHz with better than -15.7dB return loss, falling to -26.0dB at 6GHz.

These panels are manufactured from extruded Aluminium which delivers a light weight yet extremely strong panel and are fitted with a snap fit Ident strip.



Technical Specification

  • Impedance: 75 Ohm
  • Max. Frequency: 12GHz
  • Dielectric Withstanding: 1500 V RMS Max.
  • Working Voltage: 500V RMS Max.
  • Temp. Range: -55 to +85 °C
  • RoHS: Yes
  • Dielectric: Delrin
  • Body: Brass, Nickel Plate
  • Contact: Brass, Gold Plate
  • Washer: Steel, Nickel Plate
  • Locknut: Brass, Nickel Plate
  • Durability: 500 Cycles per connector
