Datavideo Mixer
HD 12-CH Mobile Video Studio
- 12-input Mobile Studio Mixer Full HD
- Mixer SE-3200 & 1x Monitor
- HDR-90 Recorder & ITC-300 Intercom System
- 4x HDMI & 8x SDI Inputs
- 4x 3-pin XLR Audio IN & 2x 3-pin XLR Audio OUT
- PD-2A Power Center
- Ethernet Ports/Tally Out
- Intercom & Talkback Functionality
Completely Customizable 12 Inputs Full HD Production Switcher
The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.
The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.
Suitable for Large-Sized Productions
The SE-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.

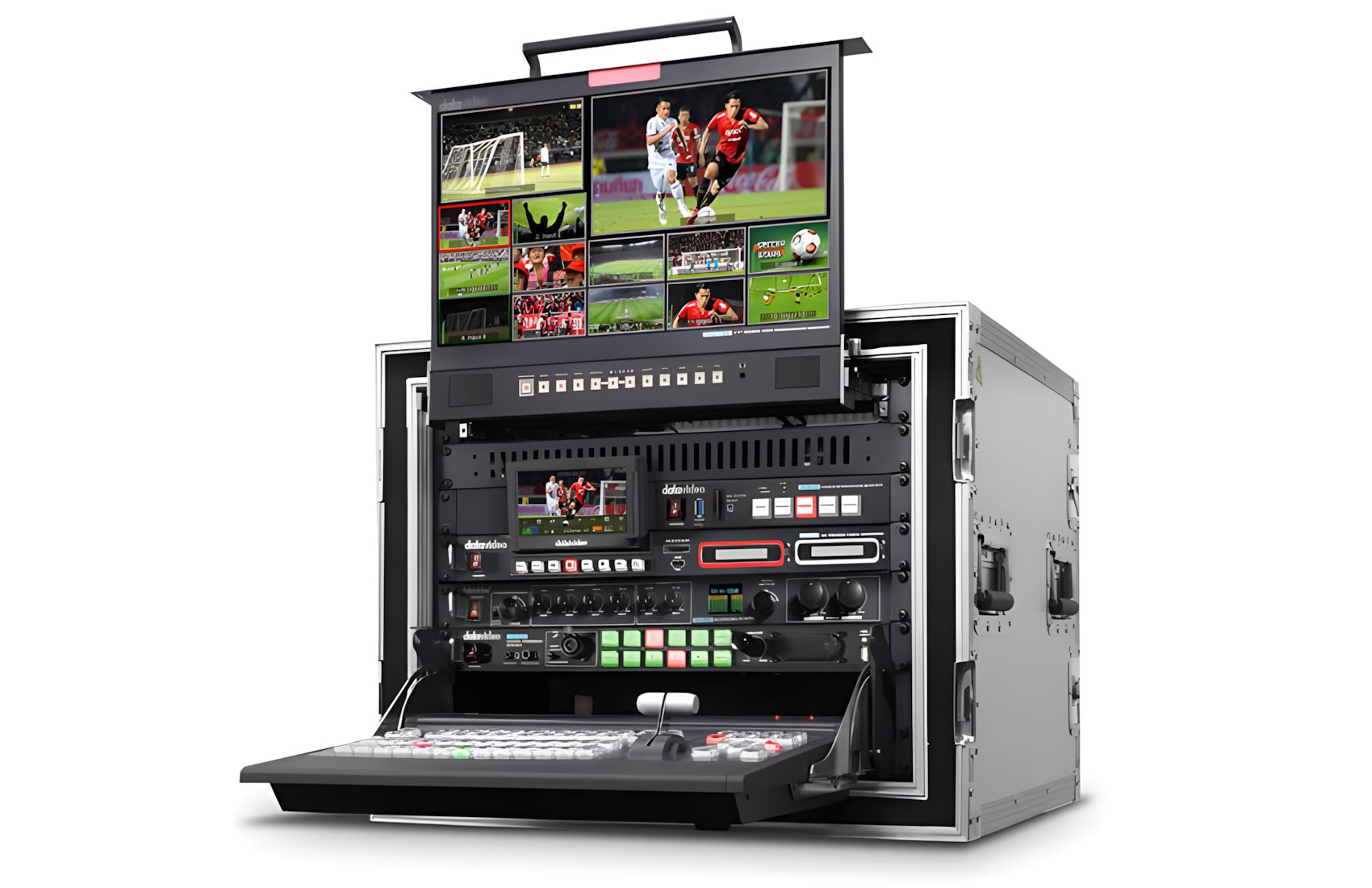

17.3'' Full HD Pull-Out Monitor
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.
Intercom and Talkback Functionality
Single wired communication system, featuring power over Ethernet to 8 belt packs.
Free from noise.
UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProRes
Large 5" LCD Touch screen for operating and monitoring.
H.264 Streaming and Recording Simultaneously
NVS-35 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
The encoder supports different bitrates for recording and streaming, allowing user live stream video to YouTube, Facebook and many other platforms.
Recording to SD Card with either NTFS and FAT file system to keep the continuous recording with a file size limit of 4GB.
Several Optional Accessories Available
Multiple accessories available including audio mixers, camera control, test & measurement tools and more.
Seamlessly Compatible with dvCloud
Get the most out of your streaming hardware using DVCloud. The MS-3200 is seamlessly compatible with Datavideo’s DVCloud service.
This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.
You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.
Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Mixer Type
-
Video Mixer HD
Mobile Studio Mixing System
- Available inputs
-
12-input Mixer
CONNECTIONS
- Video inputs
-
SD-SDI (BNC) x8
HDMI x4
- Video outputs
-
SD-SDI x6
HDMI x3
- Audio inputs
-
3-pin XLR x4
Embedded audio SDI x8
Embedded audio HDMI x4
- Audio outputs
-
3-pin XLR x2
Embedded Audio SDI x8
Embedded Audio HDMI x6
- PC Connections
-
USB
RS-232
RS-422
GPI
Ethernet RJ-45

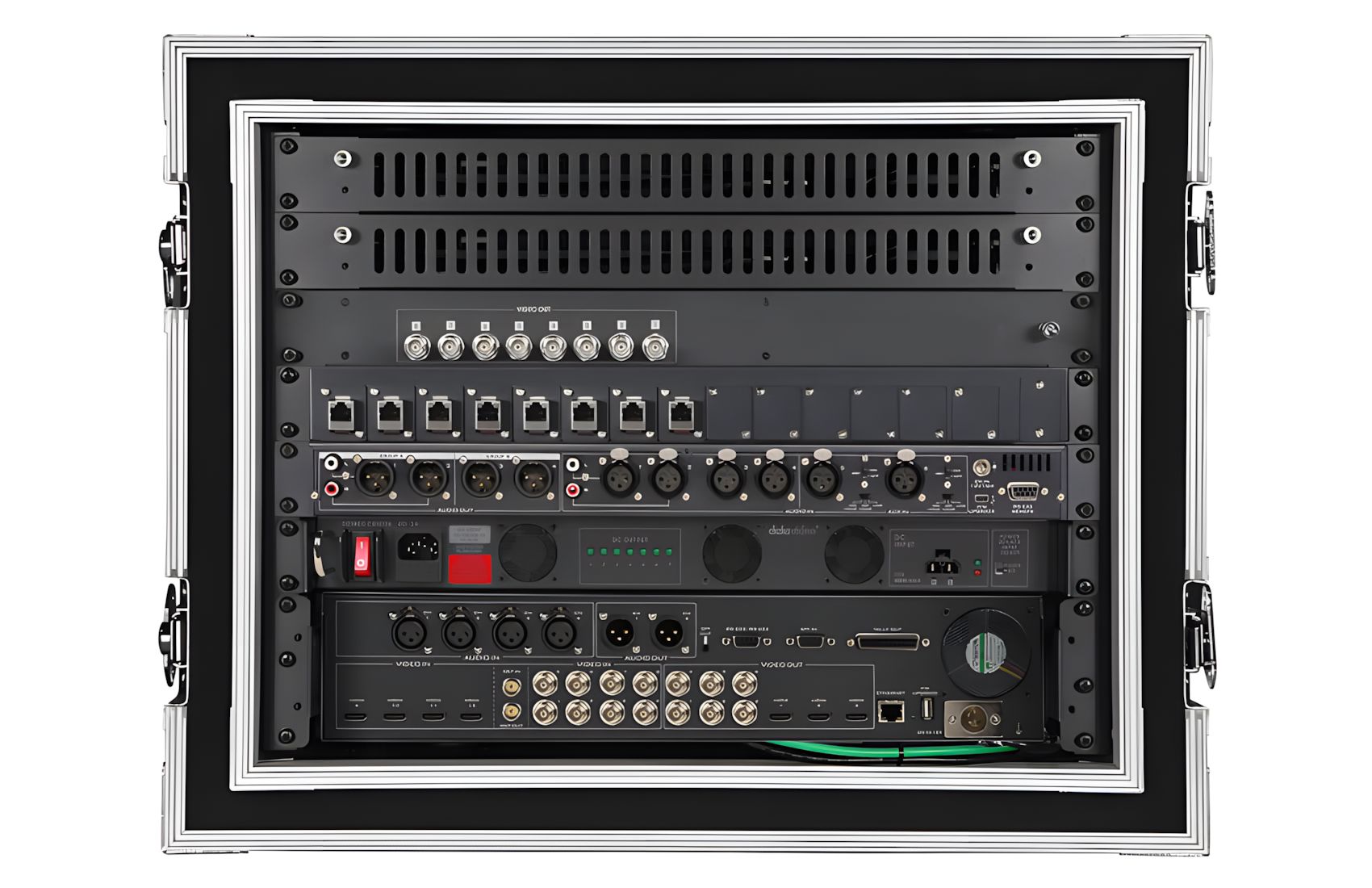

- Other Connections
-
Genlock input (BNC)
Tally 25-pin
GENERAL FEATURES
- Mobile Studio Includes
-
SE-3200 12CH Mixer.
17.3" Full HD LCD Monitor.
HDR-90 Recorder.
ITC-300 Digital Intercom System.
PD-2A Rack Power Center..
- Max Resolution Supported
-
4K: 4096 x 2160pixels (1.89 aspect ratio)
- Frames Supported
-
24P/25P/30P/50P/60P 4096x2160Pixel.
24P/25P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
- Streaming
-
No
- Recording
-
Yes
- Recording Formats
-
ProRes 422 HQ.
ProRes 422.
ProRes 422 LT.
ProRes 422 Proxy.
- Audio Mixing
-
Yes
- Video Playlist
-
No
- Replay
-
No
- Slow Motion
-
No
- Tally Support
-
Yes
MORE SPECIFICATIONS
- Extras
-
Rack System Integration: 8RU Flight Case.
- Power
-
AC 240V
DC input 12V
- Power Consumption
-
400Watts Max (12V DC Input).
- Country of Origin
-
China
- Warranty
- 3 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 67 x 80 x 62 cm
- Dimensions Details
- Body only
- Total Weight
- 65 kg
- 1x MS-3200 product
- 4x ITC-300SL Belt Pack
- 4x Tally LED Indicator
- 4x Headset with microphone
- 1x Goose neck MIC
- 4x Ethernet Cable
- 4x RJ-45 Protective Shield Set
- 4x GPI Cable
- 1x AC Power Cord
- 1x Y type USB cable
- 5x 120mm cable tie
- 10x 200mm cable tie
- 1x Y type 2 pin MOLEX cable
- 2x 2.5" HDD enclosure
- 1x SATA to USB Cable
- 10x Screw M3*4mm
- 10x Anti-vibration screw + M5*10 washer
- 2x ISO screw 2*6mm
- 4x Black Velcro 36cm
- Podcast Brochure
- Datavideo_Podcast_Brochure.pdf
- Operation Manual
- Datavideo_MS-3200_Instruction-Manual.pdf
