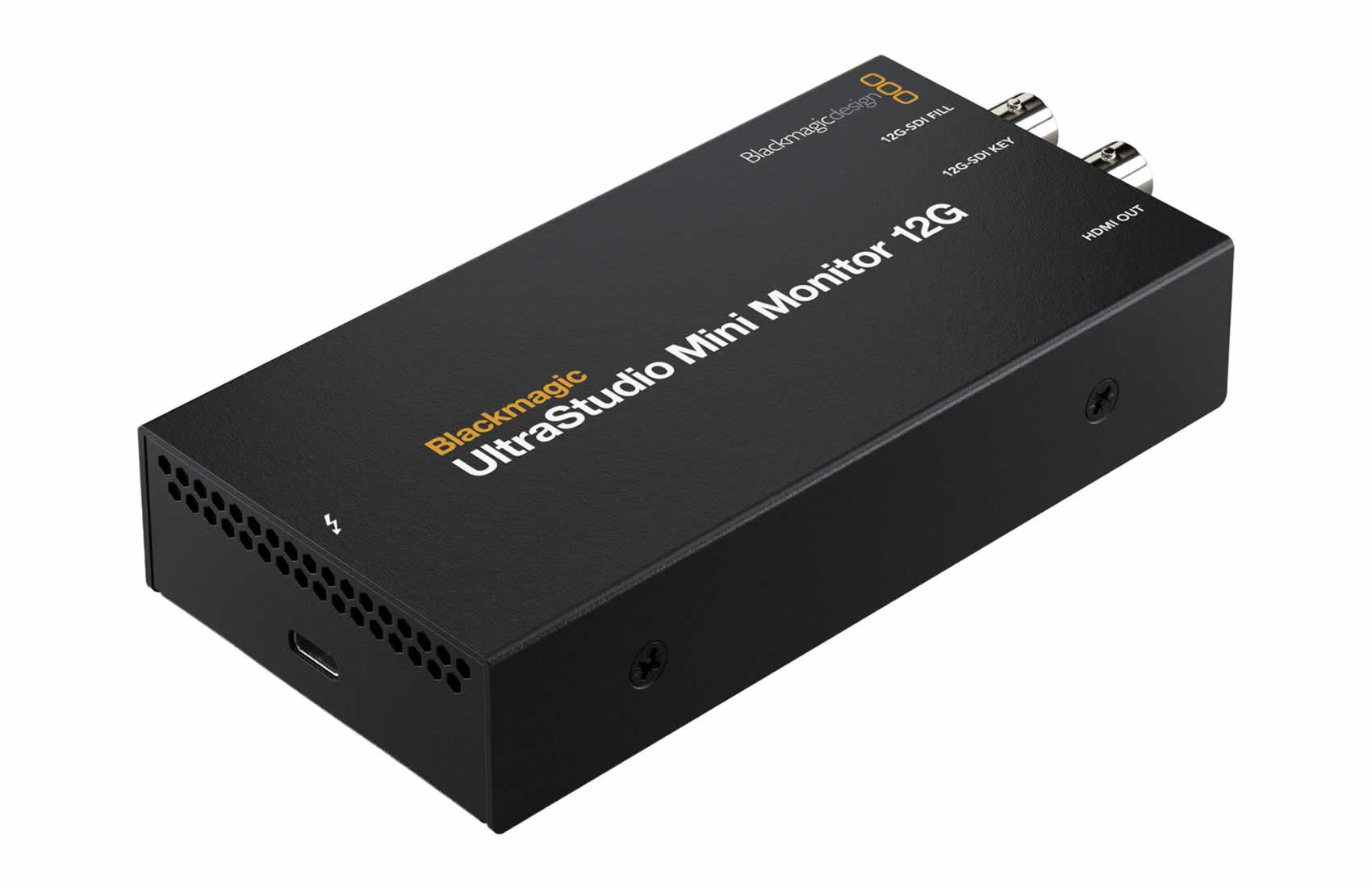

BlackMagic PC-Box

UltraStudio Mini Monitor-12G

MFR# BDLKULSDZMINMON12G

in-Store Price: 345,00€ + VAT

Online Price: 331,20€ + VAT

Video PC-Box for Playback

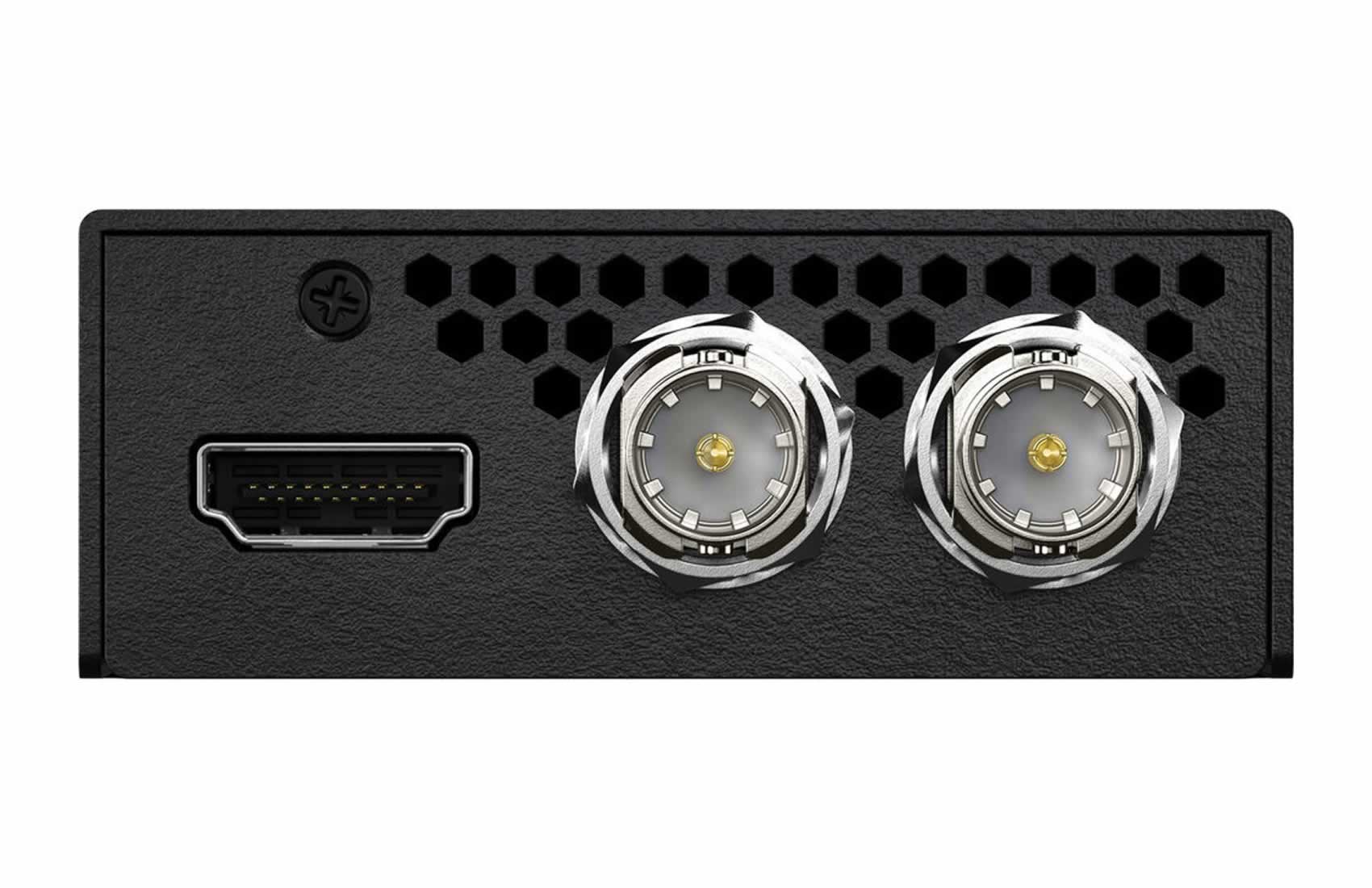

3G/HD/SD-SDI & HDMI OUT
16CH Embedded Audio OUT
USB 4 & Thunderbolt 4 Connection

Not in stock
Available on order: 15 Business Days

Get compact 3G-SDI and HDMI video playback from your USB4 or Thunderbolt 4 laptop or desktop computer! UltraStudio Express Monitor 3G supports broadcast quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software.

Connections
SDI Video Outputs
1 x 10-bit SD/HD switchable

SDI Rates
270Mb, 1.5G, 3G

SDI Audio Outputs
16 Channels embedded in SD/HD

HDMI Video Outputs
1 x HDMI 2.0 type A connector

HDMI Audio Outputs
8 Channels embedded in SD/HD

Computer Interface

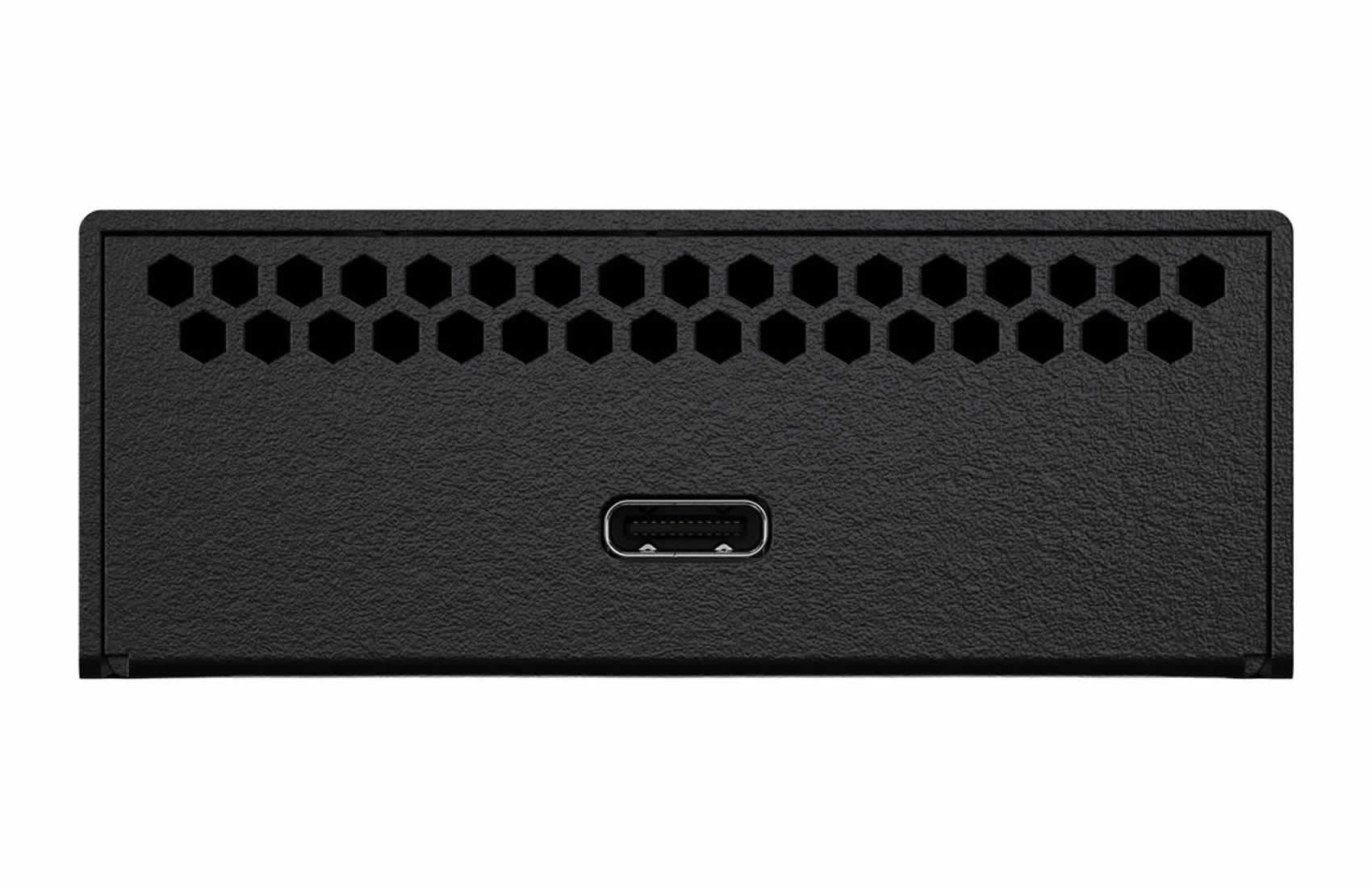

1 x USB Type-C® supporting USB 40Gbps.

Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Source: https://www.blackmagicdesign.com/products/ultrastudiomini/techspecs/W-DLUS-15

STATUS

Status: New
Availability: Available on order: 15 Business Days
PC-Box Type: Video PC-Box

CONNECTIONS

Video outputs: 12G-SDI
HDMI
Audio outputs: Embedded Audio SDI
Embedded Audio HDMI
PC Connections: Thunderbolt 4.0

GENERAL FEATURES

Max Resolution Supported: 4K: 4096 x 2160pixels (16:9 aspect ratio)
Frames Supported: 24P/25P/30P/50P/60P @4096x2160Pixel
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
50i @720x576Pixel
60i @720x486Pixel
Operating System Supported: Windows 10
Windows 11
MAC OS Tahoe
MAC OS Sequoia
Software Supported: Adobe Premiere
Apple Final Cut
Avid Media Composer

MORE SPECIFICATIONS

Extras: 4:4:4 12bit
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer
Final Cut
Power: Through Thunderbolt
Country of Origin: Australia
Warranty: 1 Year
