BlackMagic PC-Box

UltraStudio Express Recorder-3G

MFR# BDLKULSDMAEXREC3G BLK# 492-0207

in-Store Price: 139,00€ + VAT

Online Price: 133,44€ + VAT

Video PC-Box for Capture
3G/HD/SD-SDI & HDMI IN
16CH Embedded Audio IN
USB 4 & Thunderbolt 4 Connection

4pcs in stock
Immediate Shipping

Get pocket sized 3G-SDI and HDMI video capture for your USB4 or Thunderbolt 4 laptop or desktop computer! UltraStudio Express Recorder 3G features broadcast quality 10-bit video connections in both HDMI and 3G-SDI. It's compatible with all popular video software such as DaVinci Resolve plus AI image processing and live streaming software.

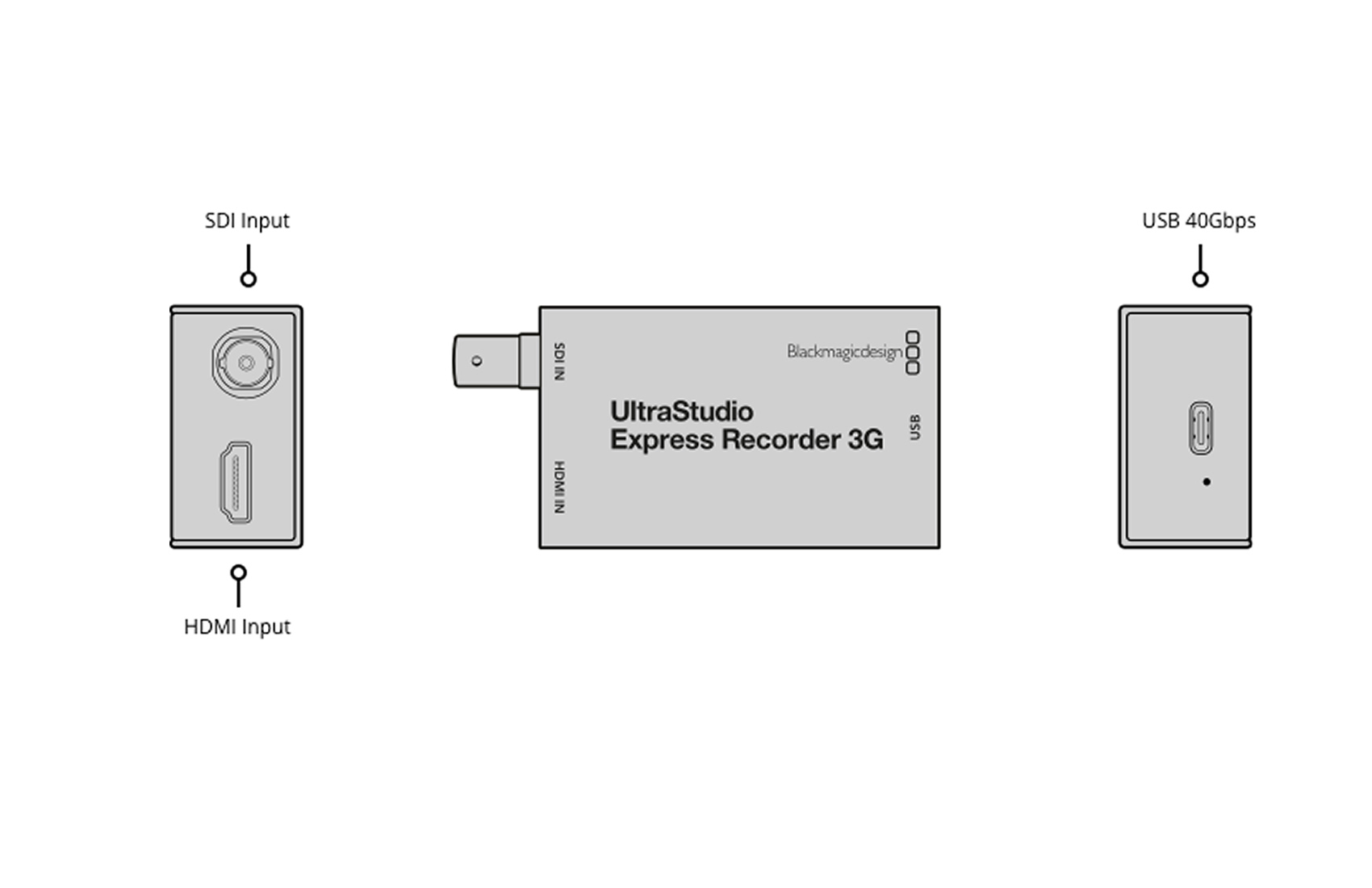

Connections
SDI Video Inputs
1 x 10-bit SD/HD switchable

SDI Rates
270Mb, 1.5G, 3G

SDI Audio Inputs
16 Channels embedded in SD/HD

HDMI Video Inputs
1 x HDMI 2.0 type A connector

HDMI Audio Inputs
8 Channels embedded in SD/HD

Computer Interface
1 x USB Type-C® supporting USB 40Gbps.

Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Source: https://www.blackmagicdesign.com/products/ultrastudio/techspecs/W-DLUS-17

STATUS

Status: New
Availability: Available on order: 15 Business Days
PC-Box Type: Video PC-Box

CONNECTIONS

Video inputs: 3G/HD/SD-SDI (BNC)
HDMI
Audio inputs: Embedded audio SDI
Embedded audio HDMI
PC Connections: Thunderbolt 4.0

GENERAL FEATURES

Max Resolution Supported: Full HD: 1920 x 1080pixels (16:9 aspect ratio)
Frames Supported: 24P/25P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
50i @720x576Pixel
60i @720x480Pixel
Operating System Supported: Windows 8
Windows 10
Linux
MAC OS Tahoe
MAC OS Sequoia
Software Supported: Adobe Photoshop
Adobe Premiere
Apple Final Cut
Avid Media Composer

MORE SPECIFICATIONS

Extras: 4:2:2 10bit
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer
Final Cut
Power: Through Thunderbolt
Country of Origin: Australia
Warranty: 1 Year
