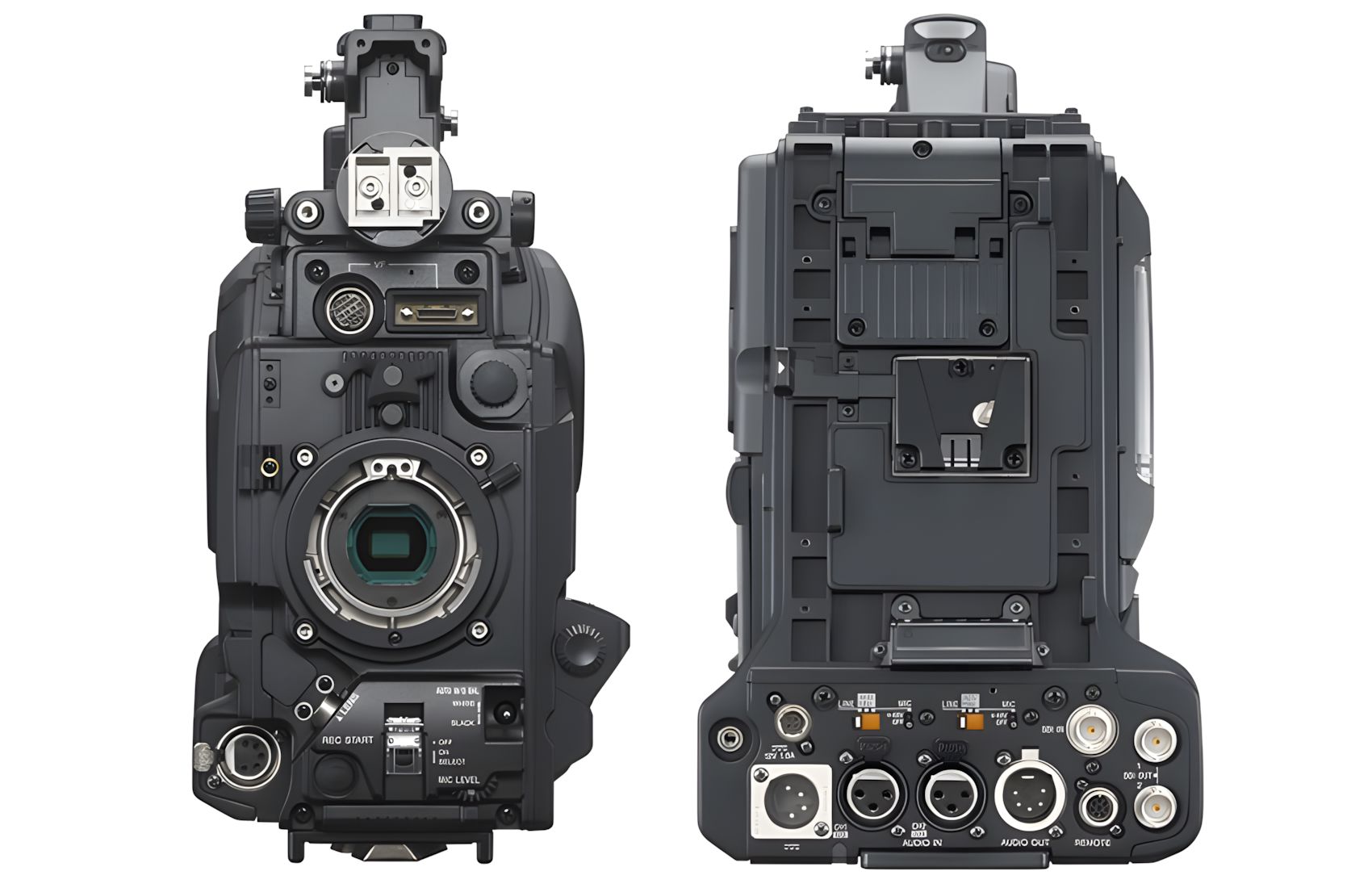

Sony Camera
X400-U 3CMOS 2/3
MFR# PXW-X400-U
BLK# 260-0149
- Shoulder Camera HD
- 200/100/50Mbps XAVC-I/L
- 3CMOS 2/3" 2.07MP
- Lens not Included (Body only)
User-oriented advanced shoulder camcorder ideal for Full HD broadcast operations.
The PXW-X400 is an advanced shoulder camcorder that records a variety of professional broadcast quality formats including XAVC-L at 50p and 59.94p. The camcorder offers exceptional weight balance and low power consumption alongside excellent networking features and high picture quality. The reengineered design dramatically reduces the load on the operator’s right-arm. It supports Sony viewfinders including the QHD LCD CBK-VF02 and optionally available Full HD OLED HDVF-EL30 and HDVF-EL20. The camcorder also offers improved network connectivity, with built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function** for easy Wi-Fi setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application. SD or HD-SDI (up to 1.5G) input supports pool feed recording.
* The NFC function will be available in July, 2016.
The PXW-X400 is an advanced shoulder camcorder that records a variety of professional broadcast quality formats including XAVC-L at 50p and 59.94p. The camcorder offers exceptional weight balance and low power consumption alongside excellent networking features and high picture quality. The reengineered design dramatically reduces the load on the operator’s right-arm. It supports Sony viewfinders including the QHD LCD CBK-VF02 and optionally available Full HD OLED HDVF-EL30 and HDVF-EL20. The camcorder also offers improved network connectivity, with built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function** for easy Wi-Fi setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application. SD or HD-SDI (up to 1.5G) input supports pool feed recording.
* The NFC function will be available in July, 2016.
-
Shooting in Full HD plus 4K options
The PXW-X400 supports a variety of formats including HD XAVC Long GOP at 50p and 59.94p. With the optional CBK-Z450UK upgrade kit, the camcorder also supports 4K QFHD as XAVC Intra and XAVC Long GOP at 50p/59.94p.
-
Full HD XAVC-L 50p and 59.94p operations
Supports variety of formats including XAVC-Long GOP at 50p and 59.94p.
-
Low power and ergonomic design
Designed to minimise power consumption, while lighter lens grip reduces front weight and helps reduce the load on the right-arm.
-
Improves network connectivity
Connectivity features include built-in wireless module, RJ-45 Ethernet 100B-T connection and NFC function for easy Wi-Fi setup. The camcorder’s SDI input allows SD-SDI or HD-SDI pool feed recording up to 1.5Gbps.
-
PXW-X400KC - 20X Manual Focus Lens Kit Model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption, plus 20x manual focus zoom lens kit.
The PMW-X400KC camcorder kit is supplied with a 20x manual focus zoom lens kit that includes the 3.5-inch LCD viewfinder plus short gun stereo microphone.
-
PXW-X400KF - 16X Auto Focus Lens Kit Model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption, plus 16x auto focus zoom lens kit*
The camcorder is supplied with a 16x auto focus zoom lens kit that includes a 3.5-inch LCD viewfinder, plus shot gun stereo microphone.
* The auto focus function is available July 2016.
-
PXW-X400 – customizable model
Three 2/3-inch type Exmor CMOS sensors XDCAM weight-balanced advanced shoulder camcorder with improved network connectivity and low power consumption.
This camcorder is supplied without Zoom lens , without viewfinder and microphone, allowing full customization of the camcorder.
With a selection of broadcast 2/3’’ Zoom lenses , Stereo or Mono Microphones and the new HDVF-EL20 or HDVF-EL30 OLED / LCD viewfinders to match the production requirements.
STATUS
- Status
- Discontinued
- Availability
- Available on order: 15 Business Days
- Camera Type
-
Shoulder Camera
HD Camera
VIDEO SPECIFICATIONS
- Recording Video Format
-
XAVC-I
XAVC-L
- Max Video Resolution
-
Full HD
- Slow Motion
-
No
LENS SYSTEM
- Sensor Type
-
3CMOS
- Sensor Size
-
2/3" (crop factor 3.93)
- Sensor Resolution
-
2.07MP
- Lens Mount
-
2/3"
- Built-in ND Filters
-
Yes
CONNECTIONS
- Video outputs
-
3G-SDI x2
HDMI x1
Composite (CVBS) x1
- Audio inputs
-
3-pin XLR x2
5-pin XLR x1
- Audio outputs
-
5-pin XLR x1
Jack 3.5mm x1
Embedded Audio SDI x2
Embedded Audio HDMI x1
- PC Connections
-
USB2.0
USB3.0
Ethernet RJ-45
- Other Connections
-
TC IN (BNC)
TC OUT (BNC)
RCU Connector
WiFi Remote Control
GENERAL FEATURES
- Shutter speed
-
1/60sec to 1/2000sec
- Min. Illumination
-
0.013LUX
- LCD
-
3.5"
- Viewfinder
-
Yes, 3.5" LCD
MORE SPECIFICATIONS
- Power
-
V-Lock Type Battery
4pin XLR 12-16V
4pin DC OUT 12V
- No. of battery slots
-
1
- Power Consumption
-
24W(14.4V/1.66A - 12V/2.0A)
- Country of Origin
-
Japan
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 15 x 26.9 x 33.2 cm
- Dimensions Details
- Body only
- Total Weight
- 3.6 kg
- Weight Details
- Body Only
- Shoulder strap (1)
- Cold shoe kit (1)
- Operation Guide (1)
- Operation Manual (CD-ROM) (1)
- USB wireless LAN module (IFU-WLM3) (1)
-
