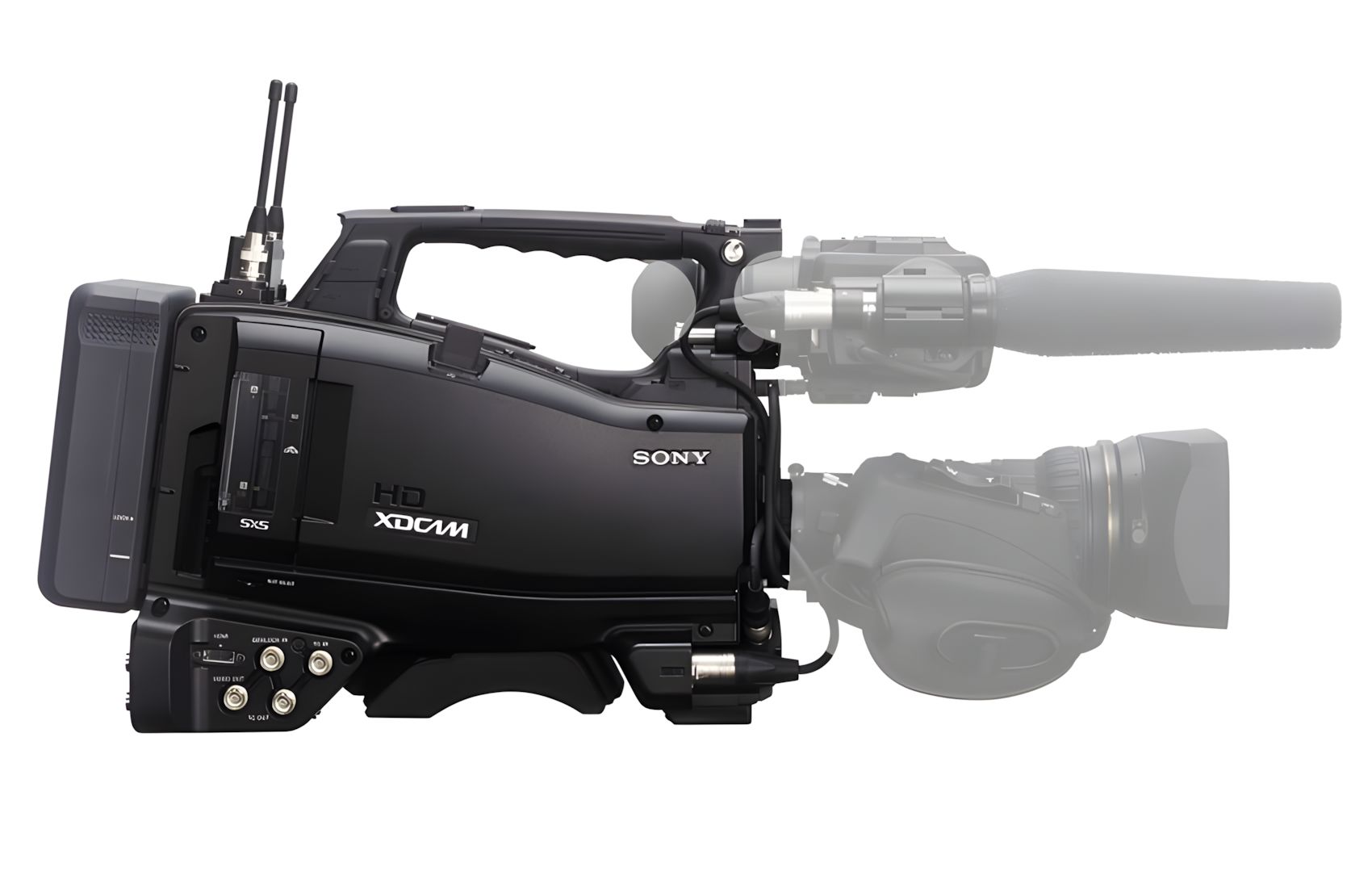

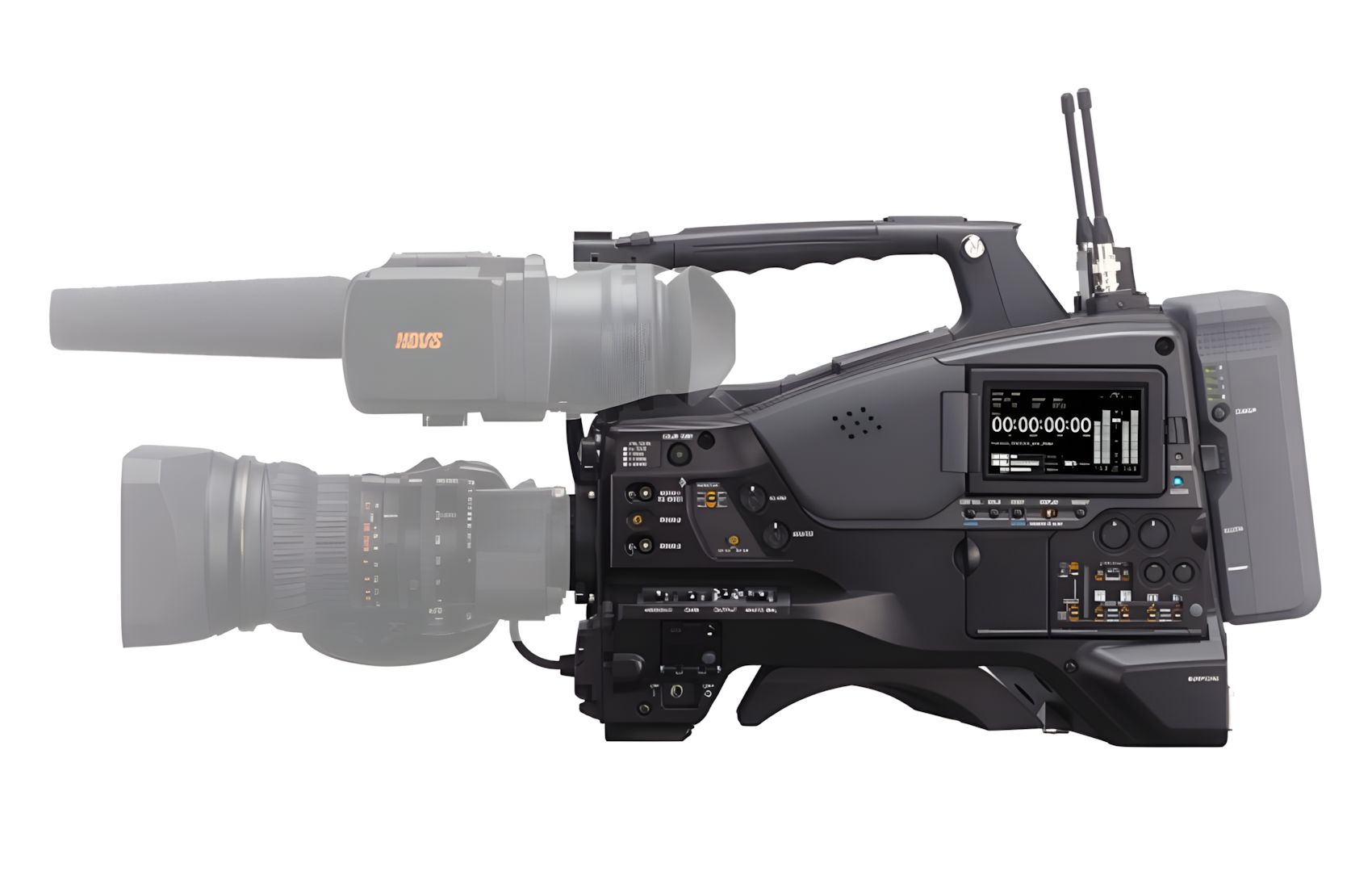

Sony Camera
PXW-X500-U
MFR# PXW-X500-U
- Shoulder Camera
- 100/200Mbps XAVC
- 3CCD 2/3"
- Changeable Lens
- 1920x1080 50/60P
- F12 - S/N: 60dB
- SxS Cards & XQD
- HD/SD-SDI & HDMI Output
The PXW-X500 has three 2/3-inch type Full HD CCD sensors, offering a high sensitivity and low noise image. The camcorder gives broadcasters a high degree of flexibility, allowing you to shoot in a wide variety of HD and SD formats, including XAVC Intra and XAVC Long GOP, MPEG SStP 422 Lite (HDCAM SR), MPEG HD 422 and MPEG HD 420, as well as MPEG IMX and DVCAM. Options allow the camcorder to record directly in Avid DNxHD and Apple ProRes, offering direct compatibility with NLEs. The camcorder also has a host of leading professional features, such as Slow & Quick Motion up to 30 fps for MPEG HD 422 (as standard) and up to 120 fps for XAVC (as an option), wireless operation, picture cache recording, built-in GPS, Digital Extender, variable ND filter control, HyperGamma, and many more. A wide range of connectors, including 3G/HD/SD-SDI, HDMI and USB, increase the flexibility further.
-
Records a wide variety of HD and SD formats, including XAVC
XAVC Intra and XAVC Long GOP, MPEG SStP 422 Lite (HDCAM SR), MPEG HD 422 and MPEG HD 420, as well as MPEG IMX and DVCAM.
-
Direct compatibility with NLEs
Options allow the camcorder to record directly in Avid DNxHD and Apple ProRes.
-
Slow & Quick Motion options
Up to 30 fps for MPEG HD 422 (as standard) and up to 120 fps for XAVC (as an option).
-
Professional features
Includes wireless operation, picture cache recording, built-in GPS, Digital Extender, variable ND filter control, HyperGamma, and more.
STATUS
- Status
- Discontinued
- Availability
- Available on order: 15 Business Days
- Camera Type
-
Shoulder Camera
HD Camera
VIDEO SPECIFICATIONS
- Max Video Resolution
-
SD
HD
- Slow Motion
-
Yes
- Rec Media
-
SD Card x1
XQD Card x1
LENS SYSTEM
- Sensor Type
-
3CCD
- Sensor Size
-
2/3" (crop factor 3.93)
- Sensor Resolution
-
2.07MP
- Lens Mount
-
2/3"
- Built-in ND Filters
-
Yes
CONNECTIONS
- Video outputs
-
HD-SDI x2
HDMI x1
Composite (CVBS) x1
- Audio inputs
-
3-pin XLR x2
- Audio outputs
-
5-pin XLR x1
Jack 3.5mm x1
- PC Connections
-
USB2.0
USB2.0 Host
WiFi
- Other Connections
-
Remote (12pin)
TC IN (BNC)
TC OUT (BNC)
Genlock input (BNC)
RCU Connector
WiFi Remote Control
GENERAL FEATURES
- Shutter speed
-
1/60sec to 1/2000sec
- Min. Illumination
-
0.003LUX
- Internal Live Streaming
-
No
- LCD
-
3.5"
- Viewfinder
-
Optional
MORE SPECIFICATIONS
- Extras
-
SD Cards can be used only for Utility or Proxy Recording
GPS
- Power
-
V-Lock Type Battery
4pin XLR 12-16V
4pin DC OUT 12V
- No. of battery slots
-
1
- Power Consumption
-
37W(14.4V/2.56A - 12V/3.08A)
- Country of Origin
-
Japan
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 15 x 26.9 x 33.2 cm
- Total Weight
- 3.8 kg
- Shoulder Strap
- Cold Shoe Kit
- Instructions
- CD-ROM
- General Features
- General_Features.pdf
