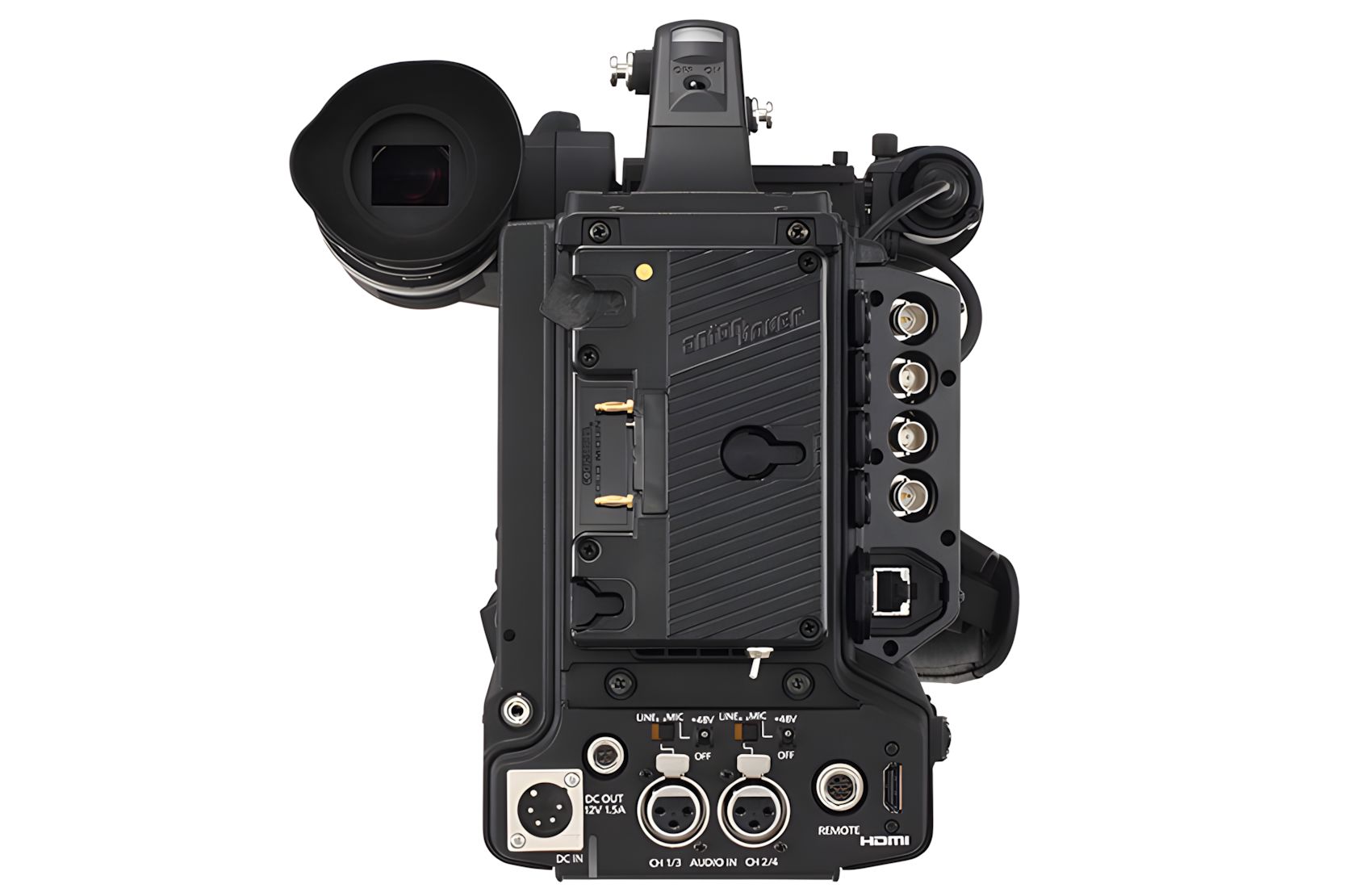

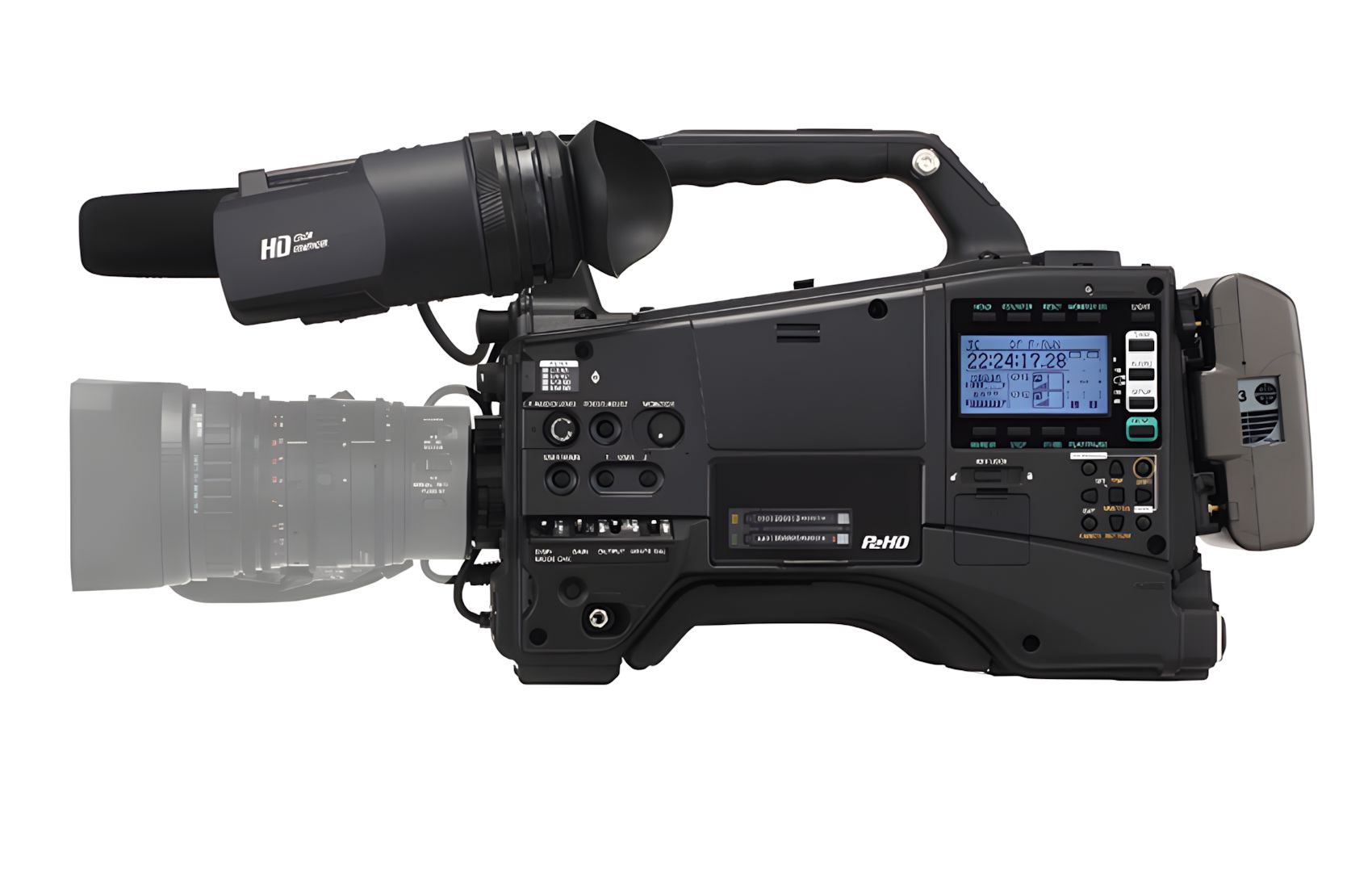

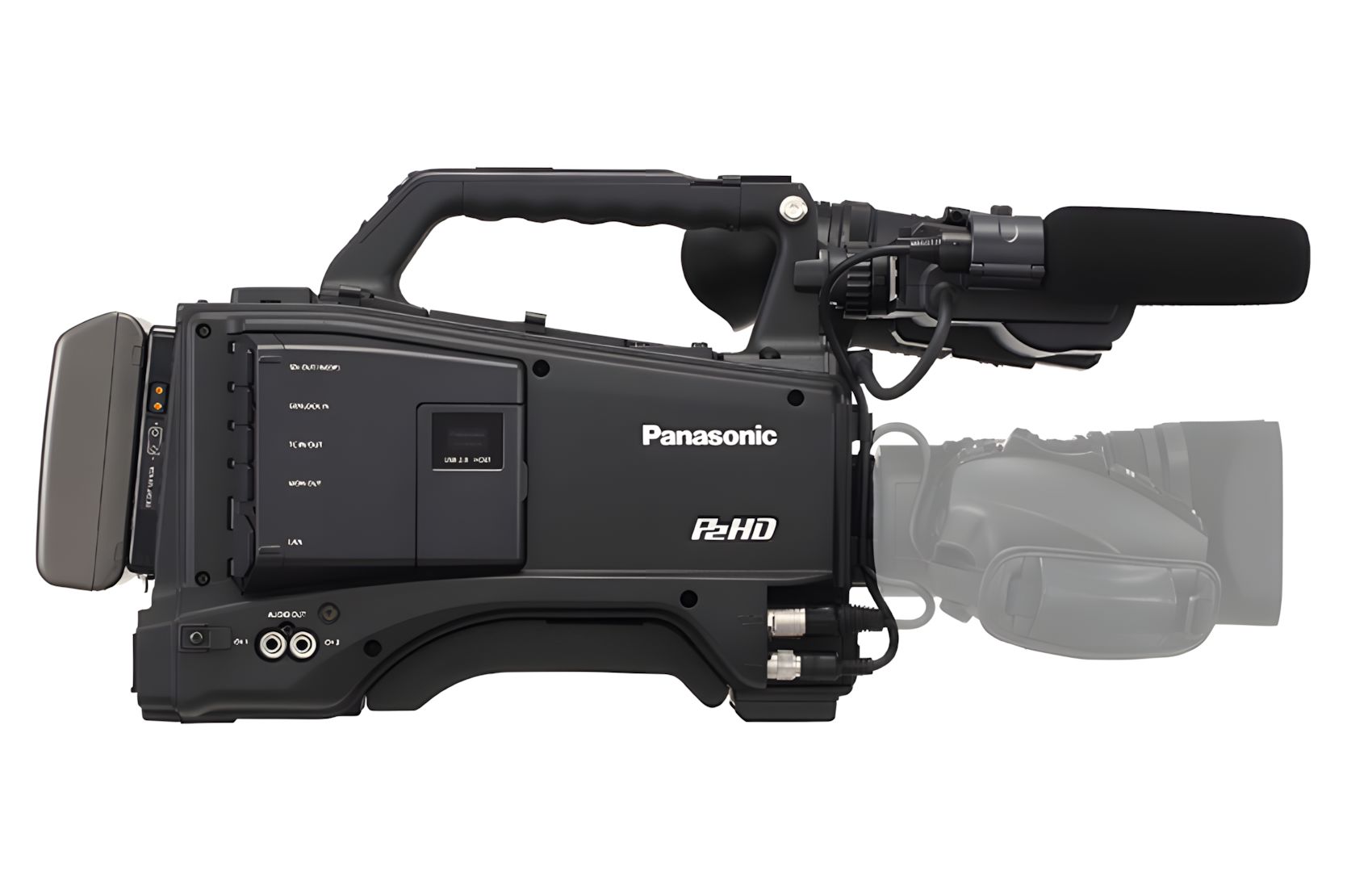

Panasonic Camera

AG-HPX610EJH

MFR# AG-HPX610EJH

Shoulder Camera
AVC-Intra 100Mbps
MOS 2/3"
F13 Sensitivity

The AG-HPX610 marks a milestone in the development of camera-recorders giving full quality HD images and markers cost effectively. The AG-HPX610 has been designed from scratch to be a platform solution where users can choose from a range of options to tailor the camera to their needs. It also features a 2/3 type lens mount, enabling the use of industry standard lenses ensuring total flexibility.

We have designed two packages with your needs in mind. The AG-HPX610EJH is a combination of the body with the AG-CVF15G viewfinder.

Features:

State-of-the-art glass elements for improved uniform optical performance overall from wide to tele end at a high quality level
Includes Fujinon’s GO-Technology, minimising longitudinal chromatic aberration
QuickZoom function with a zoom speed of only one second.
Manual or Auto focus operation with macro focus
Automatic flange back

With a simple slide of the focus ring the AG-HPX610 converts the manual focus lens into a fully autofocus lens.

AG-HPX610:

A compact body for superb mobility.
Featuring a newly developed MOS sensor providing excellent image quality with high sensitivity (F13 at 50 Hz) and low noise with an S/N of 59 dB.
Incorporates a smart user interface for quick and easy access to common functions.
The 2/3-type lens mount accommodates a large variety of existing interchangeable lenses.
Comes standard with AVC-Intra100/50, DVCPRO HD, DVCPRO50, DVCPRO and the DV format.
50 Hz/60 Hz switchable (standard equipped).
Built-in versatility with a range of optional functions, users can select and install only the functions they need*.

The AG-HPX610, a P2 HD camcorder with 10-bit, 4:2:2 AVC-Intra recording and a low weight. Weighing approx. 2.8kg and using low power, the AG-HPX610 incorporates a newly-developed 2/3 type MOS sensor to produce beautiful HD and SD images. The AG-HPX610 will achieve the high sensitivity of F13 (at 50 Hz) and a signal-to-noise ratio of 59dB. It supports AVC-Intra100/50, DVCPRO HD, DVCPRO50, DVCPRO, and DV as standard. It is 50 Hz and 59.94 Hz switchable for worldwide use.
This camera will provide inventive functionality and improved workflows, with options such as wireless metadata input, proxy recording, and variable frame rates. The AG-HPX610 also features wireless and wired connection ability.
Ideal for virility of applications, this interchangeable lens camcorder will be equipped with Chromatic Aberration Compensation (CAC) to maximize lens performance, Dynamic Range Stretch (DRS) function to help compensate for wide variations in lighting, and a highly accurate flash band detection and compensation software that eliminates this effect. Original features will include a smart user interface that permits accessibility to the camera’s extensive functions from an LCD display on the side of the camera. The AG-HPX610 will offer two P2 Card Slots and an SD Card Slot.

Source: http://pro-av.panasonic.net/en/sales_o/p2/ag-hpx610th/index.html

STATUS

Status: Discontinued
Availability: Available on order: 15 Business Days
Camera Type: Shoulder Camera
Studio Camera
HD Camera

VIDEO SPECIFICATIONS

Max Video Resolution: SD
SD
SD
SD
HD
HD
Slow Motion: No

LENS SYSTEM

Sensor Type: MOS
Sensor Size: 2/3" (crop factor 3.93)
Sensor Resolution: 2.2MP
Lens Mount: 2/3"
Built-in ND Filters: Yes

CONNECTIONS

Video outputs: HD-SDI x2
HDMI x1
Composite (CVBS) x1
Audio inputs: 3-pin XLR x3
Audio outputs: Jack 3.5mm x1
RCA x2
PC Connections: USB2.0
USB2.0 Host
Other Connections: Remote (12pin)
TC IN (BNC)
TC OUT (BNC)
Genlock input (BNC)
RCU Connector
WiFi Remote Control

GENERAL FEATURES

Shutter speed: 1/25sec to 1/2000sec
Internal Live Streaming: No
Viewfinder: 1"

MORE SPECIFICATIONS

Power: G-Lock Type Battery
4pin XLR 12-16V
4pin DC OUT 12V
No. of battery slots: 1
Power Consumption: 22W (14.4V/0.65A - 12V/1.83A)
Country of Origin: Japan
Warranty: 1 Year

PHYSICAL

Total Dimensions (LxWxH): 14.4 x 26.7 x 35 cm
Total Weight: 2.8 kg

Viewfinder AG-CVF15G
CD-ROM
Mount Cap
Shoulder strap

Pdf not available.

Video not available.
