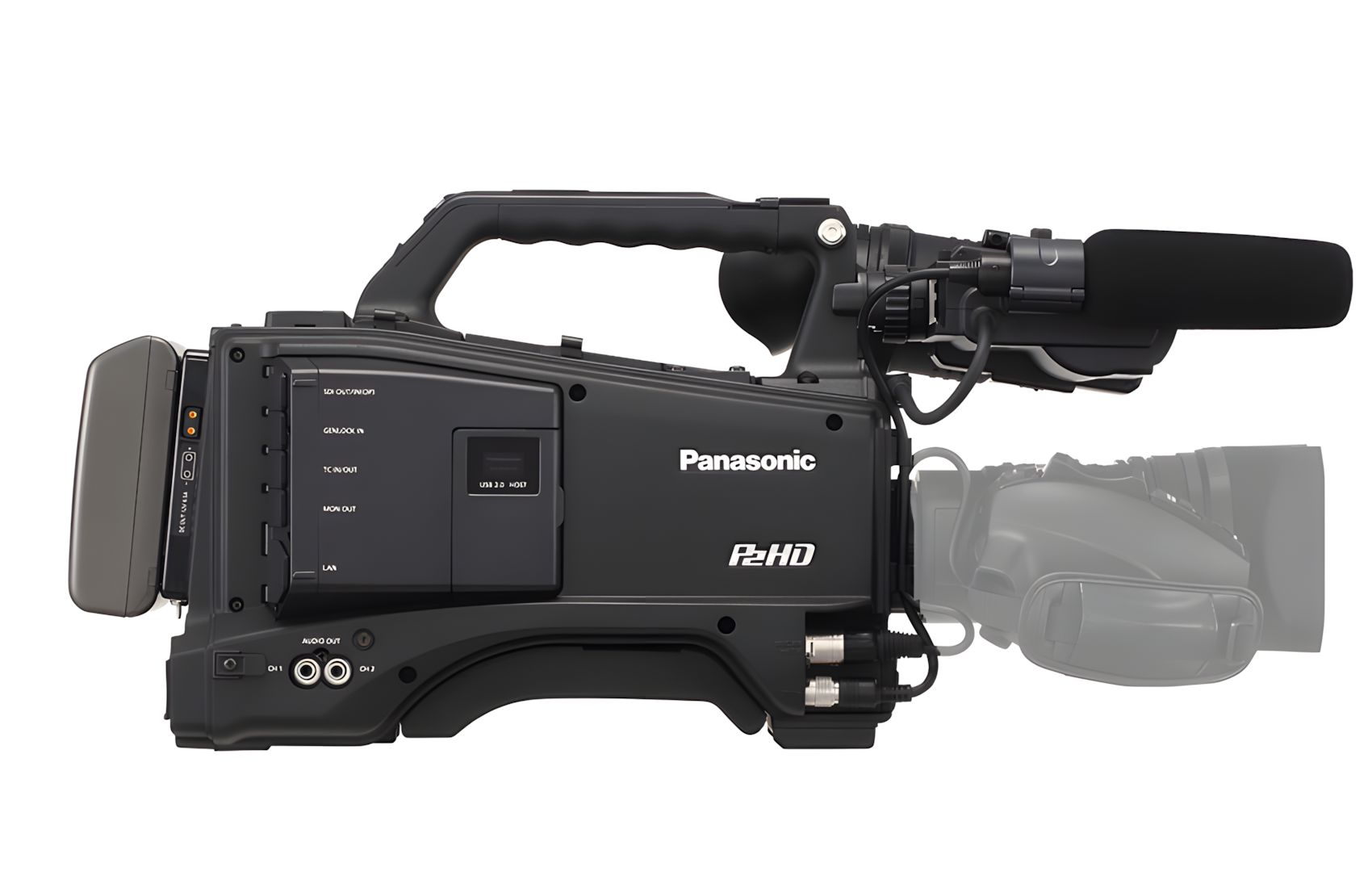

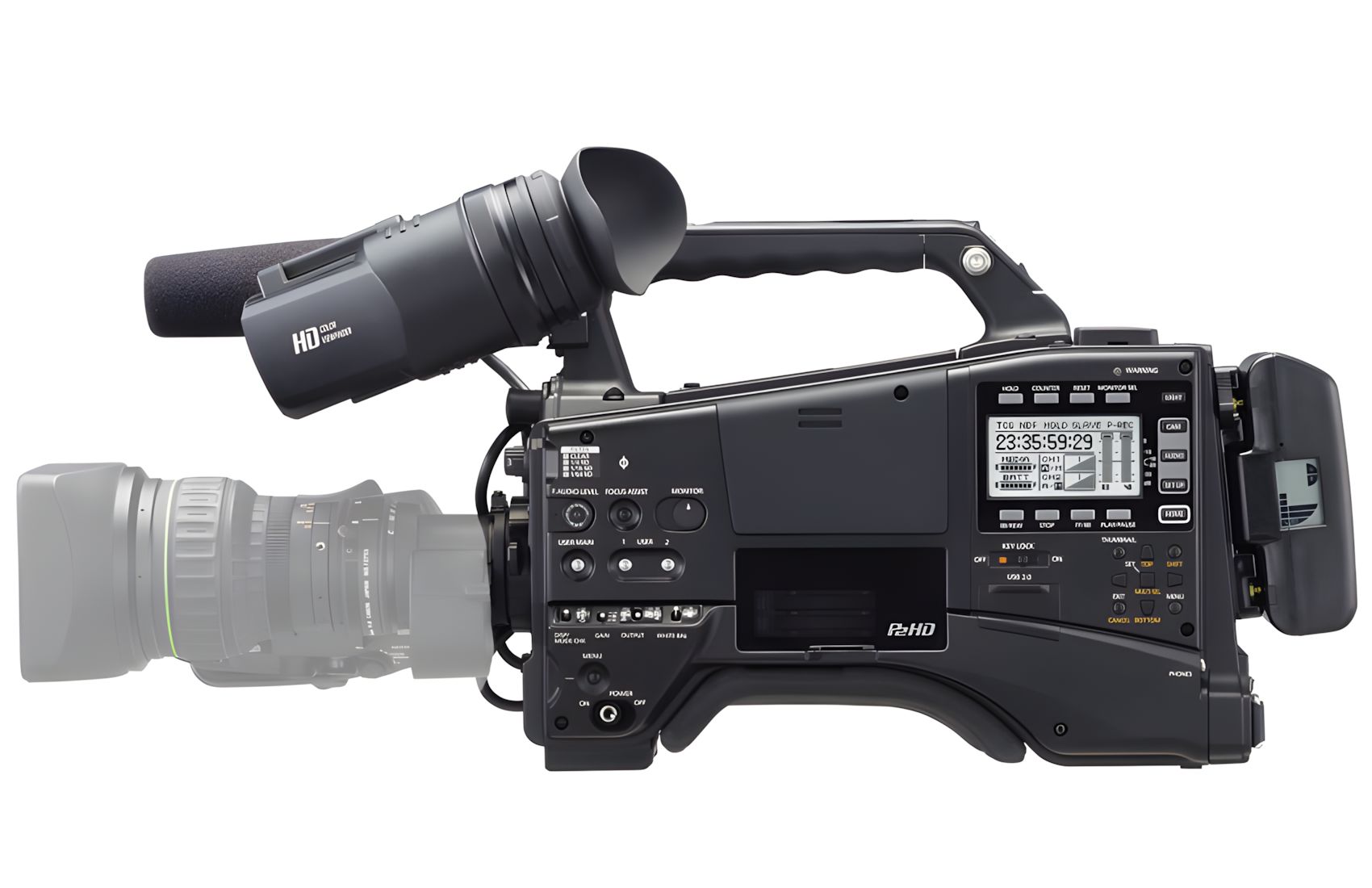

Panasonic Camera

AG-HPX600EJB

MFR# AG-HPX600EJB

Shoulder Camera
AVC-Intra 100Mbps
MOS 2/3"
F13 Sensitivity

The AG-HPX600 P2 HD shoulder mount camcorder offers 10-bit, 4:2:2 AVC-Intra recording, and low power consumption of only 18 watts. The world’s first 2/3” shoulder camcorder under 7 lbs , the HPX600 is equipped with a newly-developed 2/3 type MOS sensor and records in AVC-Intra100/50, DVCPRO HD, DVCPRO50, DVCPRO, and DV.

The HPX600 provides innovative features and efficient workflows, with options such as wireless metadata input, proxy recording, and variable frame rates. The HPX600 also features wireless and wired connection ability with Wi-Fi, USB and Gigabit Ethernet.

The interchangeable lens camcorder is equipped with Chromatic Aberration Compensation (CAC) to maximize lens performance, Dynamic Range Stretch (DRS) function to help compensate for wide variations in lighting, and a highly accurate Flash Band detection and compensation algorithm that minimizes this effect. A smart user interface permits accessibility to the camera’s extensive functions from an LCD display on the camera’s side. The HPX600 offers two P2 Card Slots and an SD Card Slot.

Other features include:

• Digital Zoom function for 2x and 4x close-ups.
• Scan Reverse function for use with a cinema lens adaptor.
• Digital Zoom function for 2x and 4x close-ups.
• Variable Shutter Speed from 1/12 to 1/2000 sec plus Synchro Scan function.
• Four-position (CLEAR, 1/4 ND, 1/16 ND, 1/64 ND) optical neutral density filter wheel.
• Variable Frame Rate Shooting and 24PsF Output.
• GENLOCK IN: For synchronized recording with a multi-camera system.
• Digital image settings: H Detail, V Detail, Detail Coring, Skin Tone
• TC IN/OUT: A built-in SMPTE time code generator/reader. IN/OUT selectable by menu settings.
• Four-position (CLEAR, 1/4 ND, 1/16 ND, 1/64 ND) optical neutral density filter wheel
• Focus Assist button to expand the center section of the viewfinder screen for easier focusing
• Auto White Balance with an auto tracking white function
• 48kHz/16-bit 4-channel digital audio
• 5-year limited warranty program (1 year + 4 additional years with online registration)
• Optional AG-YDX600G High-Resolution Proxy Video Encoder Board
• Optional AG-SFU601G Upgrade Software Key enables the use of a wireless or wired (Ethernet) LAN. Requires optional AJ-WM30 WiFi module.
• Optional AG-SFU602G production package upgrade software for Variable Frame Rate Shooting and 24PsF Output.
• Optional AG-YA600G HD/SD-SDI input board for line recording
• Optional AG-CVF10G 3.45” HD color LCD viewfinder

Source: http://www.panasonic.com/my/business/professional-av/broadcast/p2hd-series/ag-hpx600.specs.html

STATUS

Status: Discontinued
Availability: Available on order: 15 Business Days
Camera Type: Shoulder Camera
Studio Camera
HD Camera

VIDEO SPECIFICATIONS

Max Video Resolution: SD
SD
SD
SD
HD
HD
Slow Motion: No

LENS SYSTEM

Sensor Type: MOS
Sensor Size: 2/3" (crop factor 3.93)
Sensor Resolution: 2.2MP
Lens Mount: 2/3"
Built-in ND Filters: Yes

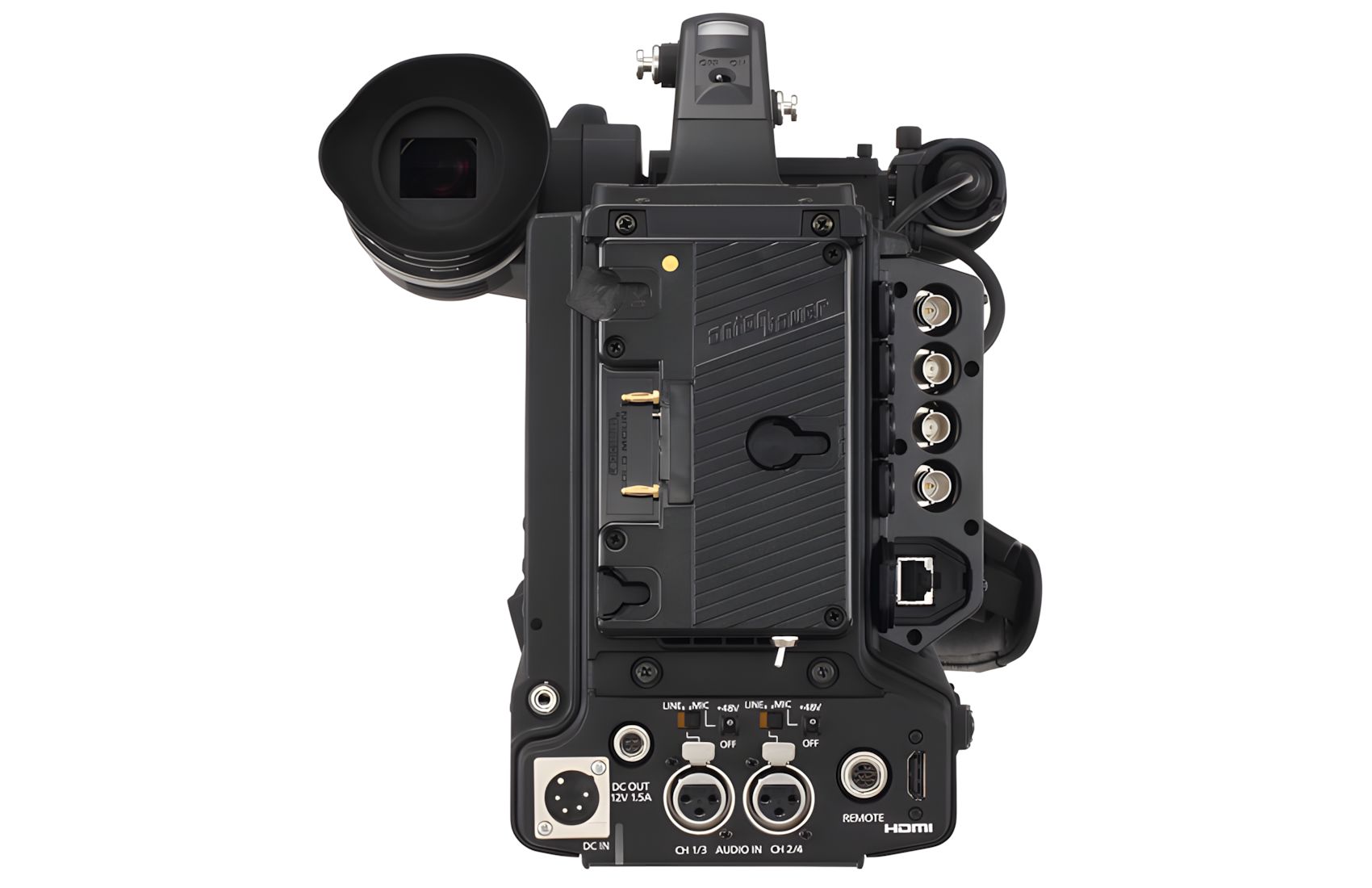

CONNECTIONS

Video outputs: HD-SDI x2
HDMI x1
Composite (CVBS) x1
Audio inputs: 3-pin XLR x3
Audio outputs: Jack 3.5mm x1
RCA x2
PC Connections: USB2.0
USB2.0 Host
Other Connections: Remote (12pin)
TC IN (BNC)
TC OUT (BNC)
Genlock input (BNC)
RCU Connector
WiFi Remote Control

GENERAL FEATURES

Shutter speed: 1/25sec to 1/2000sec
Internal Live Streaming: No
Viewfinder: 1"

MORE SPECIFICATIONS

Power: G-Lock Type Battery
4pin XLR 12-16V
4pin DC OUT 12V
No. of battery slots: 1
Power Consumption: 18W (12V/1.5A)
Country of Origin: Japan
Warranty: 1 Year

PHYSICAL

Total Dimensions (LxWxH): 14.4 x 26.7 x 35 cm
Total Weight: 2.8 kg

Viewfinder AG-HVF10G
CD-ROM
Mount Cap
Shoulder strap

Pdf not available.

Video not available.
