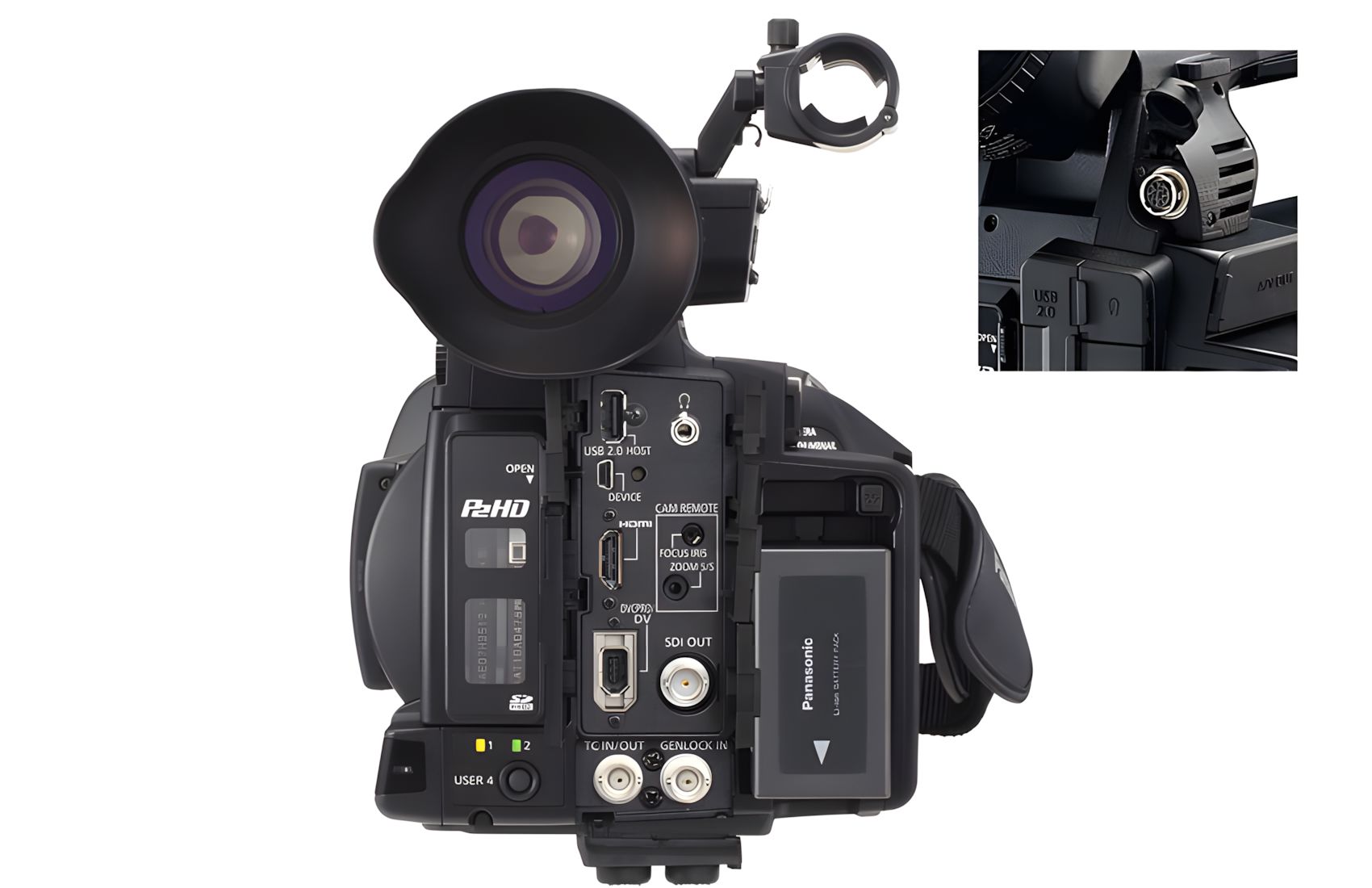

Panasonic Camera

AG-HPX255EJ

MFR# AG-HPX255EJ

Handheld Camera
AVC-Intra 100Mbps
3MOS 1/3"
28-616mm 22X

The AG-HPX255 P2 hand-held camcorder, like its sister model, the AG-HPX250, offers advanced high-performance features including a high-sensitivity 1/3” 2.2 megapixel 3-MOS image sensor, (Ultra Luminance Technology (U.L.T.), and an AVC-Intra codec to enable high-quality recording of Full-HD (1920 x 1080), 10 bit, 4:2:2 full sample images

And exclusive to the HPX255 is a remote terminal that makes it compatible with Panasonic’s AG-EC4 Paint Box remote control. This optional remote control unit has the ability to control virtually all menu, set-up and gamma functions that can be accessed directly through the camcorder’s on-board menu, including shutter, iris, gain, filter positions and detail. The optional EC4 comes with a 10 meter BNC cable that will output the menu onto a monitor. This combines with Genlock input, TC input and output, and HD SDI output to allow multi-camera operation that includes camera control.

Weighing 5.5 pounds, the AG-HPX255 offers a 22X zoom lens for a wide 28mm to 616mm (35mm equivalent) with 3 independent adjustable rings (Zoom/Focus/Iris), which allows it to cover most shooting situations without the need for a wide-angle conversion lens. The 22X lens also features an Optical Image Stabilizer (O.I.S.) function that ensures stable images during shooting. Additional advanced focusing functions, including Focus in Red and Expand.

The AG-HPX255 offers variable frame rate (VFR) capability in 1080p from 1fps to 30fps (17 steps) as well as 720p from fps to 60fps (25 steps) at 60Hz for undercranking/overcranking to create fast or slow-motion effects. This allows the HPX255 to offer a level of performance that approaches shoulder-type P2 models, while providing easy operation for image production and broadcasting use.

• 10-bit, 4:2:2, full-resolution, independent-frame, AVC-Intra 100
• 1/3" 2.2M 3MOS imager U.L.T. (Ultra Luminance Technology)
• 22X wide HD fixed lens
• Mechanical zoom, 3 rings (Zoom/Focus/Iris)
• HD/SD formats, frame rates, Variable Frame Rates (720p/1080p)
• Professional input/outputs, including Genlock, timecode, HDSDI, HDMI
• Easy Operation with 4 user buttons
• Digital Zoom (2X/5X/10X)
• Flash Band Compensation (FBC)
• Dynamic Range Stretch (DRS)
• Built-in SMPTE time-code generator/reader
• 4-position ND optical filter controls
• Auto focus with face detection, white balance, mode display, zebra display, color bar, tally lamps, slow shutter and synchro-scan shutter functions
• Widescreen LCOS color viewfinder and LCD color flip-out monitor
• Two P2 card slots
• Power consumption of only 15 watts
• Turbo-speed one-push auto-focus
• Seven-mode selectable gamma, such as cine-like mode, for rich gradation
• Scene file, user buttons, and waveform/vectorscope display functions
• The one-clip recording function records multiple cuts in a single clip
• Pre-rec, loop rec, one-shot rec and interval rec capability
• Text memos and shot markers can be added
• 5-year limited warranty program (1 year + 4 additional years with registration)
• Support for the optional proxy recorder (FOCUS FS-P250) for proxy recording and wireless connection¹
• USB 2.0 (Host/Device) and IEEE 1394a (AVC)² interface

^1. Optional FOCUS FS-P250 (coming soon) and optional AJ-WM30 are required
^2. IEEE 1394a input/output are not available for AVC-Intra codec files

Source: http://pro-av.panasonic.net/en/sales_o/broch_pdf/ag-hpx255_250_e.pdf

STATUS

Status: Discontinued
Availability: Available on order: 15 Business Days
Camera Type: Handheld Camera
Studio Camera
HD Camera

VIDEO SPECIFICATIONS

Slow Motion: No

LENS SYSTEM

Sensor Type: 3MOS
Sensor Size: 1/3" (crop factor 7.21)
Sensor Resolution: 2.2MP x3
Lens Mount: Fixed
Focal Length (35mm equivalent): 28mm to 616mm (35mm equivalent)
Optical Zoom: 22X
Max Aperture: Zoom out: F1.6 to F11
Zoom in: F3.2 to F22
Filter Diameter: 72mm
Built-in ND Filters: Yes

CONNECTIONS

Video outputs: HD-SDI x1
HDMI x1
Composite (CVBS) x1
Audio inputs: 3-pin XLR x2
Audio outputs: Jack 3.5mm x1
RCA x2
Embedded Audio SDI x1
Embedded Audio HDMI x1
PC Connections: Firewire 6pin (Big Size)
USB2.0
USB2.0 Host
Other Connections: TC IN (BNC)
TC OUT (BNC)
Genlock input (BNC)
RCU Connector

GENERAL FEATURES

Shutter speed: 1/25sec to 1/2000sec
Min. Illumination: 0.2LUX
Internal Live Streaming: No
LCD: 3.45"
Viewfinder: 0.45"

MORE SPECIFICATIONS

Power: Panasonic CGA-D54S Type Battery
No. of battery slots: 1
Power Consumption: 15W (7.2V/2.08A - 7.9V/1.89A)
Country of Origin: Japan
Warranty: 5 Years

PHYSICAL

Total Dimensions (LxWxH): 18 x 19.5 x 43.8 cm
Total Weight: 2.5 kg

Battery 5400mAh
Battery charger
AC adaptor
AC cable
DC cable
Remote control
CD-ROM
Eye Cap
Shoulder strap
Microphone holder
