DJI Wireless

SDR Transmission 2 Switchable

MFR# CP.TR.00000055

in-Store Price: 315,92€ + VAT

Online Price: 303,28€ + VAT

Wireless Video Transceiver
1 x SDR Transceiver with Switch
HDMI 4K Input/Output
Up to 2160p 60P

Not in stock
Available on order: 15 Business Days

DJI SDR Transmission 2
Multi-Group Wireless Video Transceiver
Go Small, Connect All

Ready for Complex Sets
DJI SDR Transmission 2 advances SDR technology with stronger interference resistance, better image quality, and greater range [1]. Even on crowded sets, it maintains a high-bitrate, low-latency feed. A TX/RX switchable transceiver design and Ronin series [2] compatibility bring pro-grade performance to a compact, lightweight form factor.

1 TX to 8 RX With Control, Multi-Group Transmission
Auto Channel 2.0 for Seamless, Stable Feed
Pairing-Free Connection for Fast Camera Switching
TX/RX Switchable for Flexible Deployment
Supports Ronin Monitoring & Control
DCI 4K/60fps 10-bit HDR Wireless Transmission

More Reliable for Larger Sets
1 TX to 8 RX With Control, Multi-Group Transmission

1 TX to 8 RX With Control
A single transmitter feeds up to eight receivers, each with remote control. Directors and DPs get a high-resolution feed, while operators and focus pullers can adjust settings and control the camera remotely.
Multi-Group Transmission
Run up to five transmitters and 40 receivers at the same time. Even in complex on-set environments, the wireless camera feed stays stable without sacrificing 4K image quality

Auto Channel 2.0
Auto Channel 2.0 takes over channel management on set. With Auto Mode enabled, transceivers recognize one another and intelligently coordinate frequencies. More accurate spectrum scanning and conflict diagnostics allow each unit to hop frequencies seamlessly as conditions change, maintaining a stable connection despite interference, even with multiple systems running side by side.

SDR, Evolved
DCI 4K Monitoring
SDR Transmission 2 transmits DCI 4K/60fps, 10-bit HDR [6], and H.265 video at bitrates up to 50 Mbps [7]. The result is rich detail, smooth color transitions, and clear highlights and shadows, with consistent image quality across multiple cameras.

Up to 4 km Range
Video transmission reaches up to 4 km [8]. From open stadiums to dense mountain forests, and through demanding car-to-car shots or FPV drone work, it sustains a reliable link where you need it most.

Latency as Low as 35 ms
Even with higher image quality, latency stays as low as 35 ms [9]. That keeps monitoring and remote commands, like focus pulls and gimbal moves, responsive.

Flexible by Design
Compact Body, Serious Capability

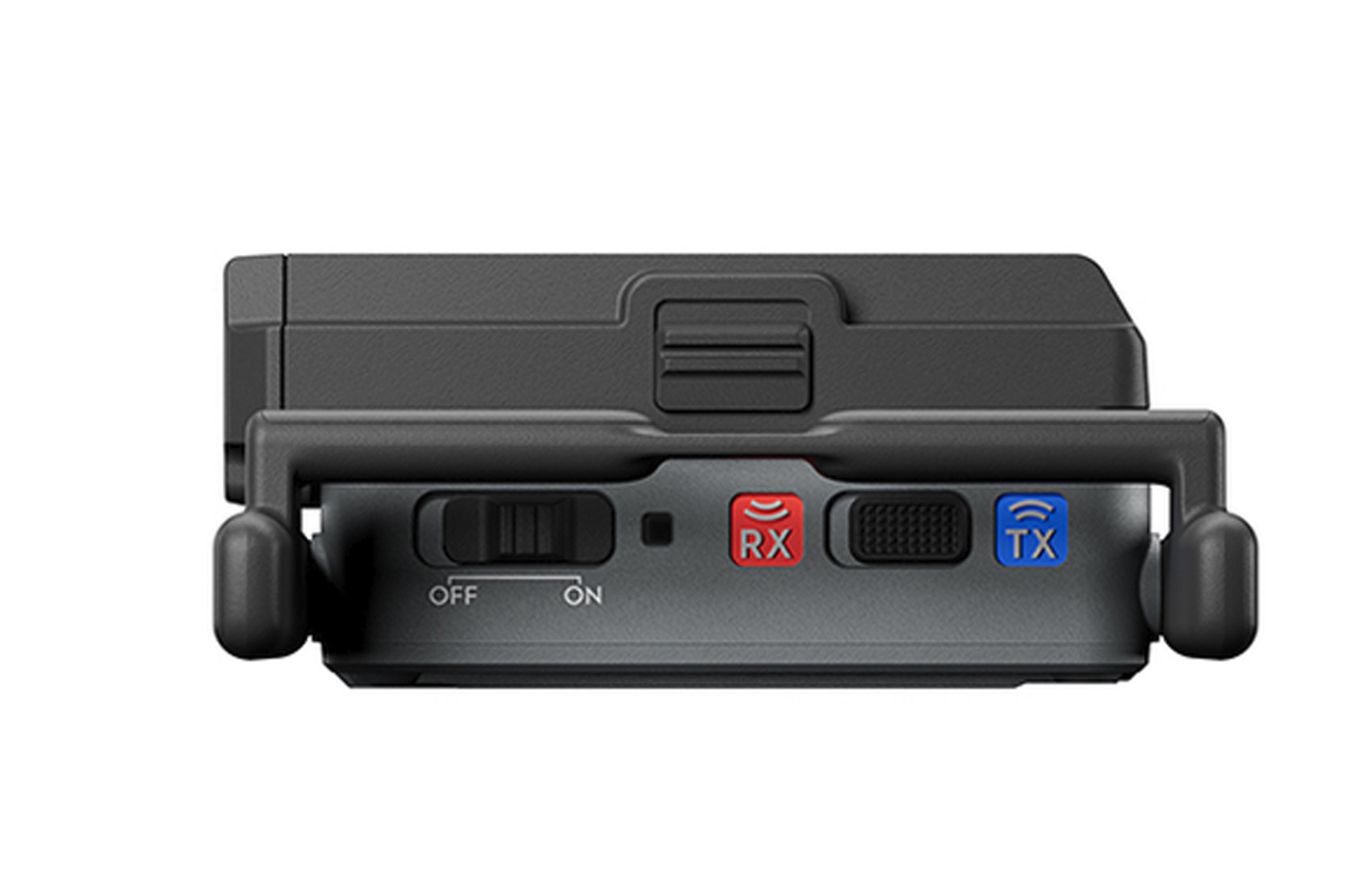

TX/RX Switchable
Switch between transmitter and receiver on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for.

Expansion Plate
Provides one SDI, one HDMI, and four USB-C ports. It also supports metadata transmission via SDI from mainstream cinema cameras like ARRI and RED.

Approx. 136g Unit

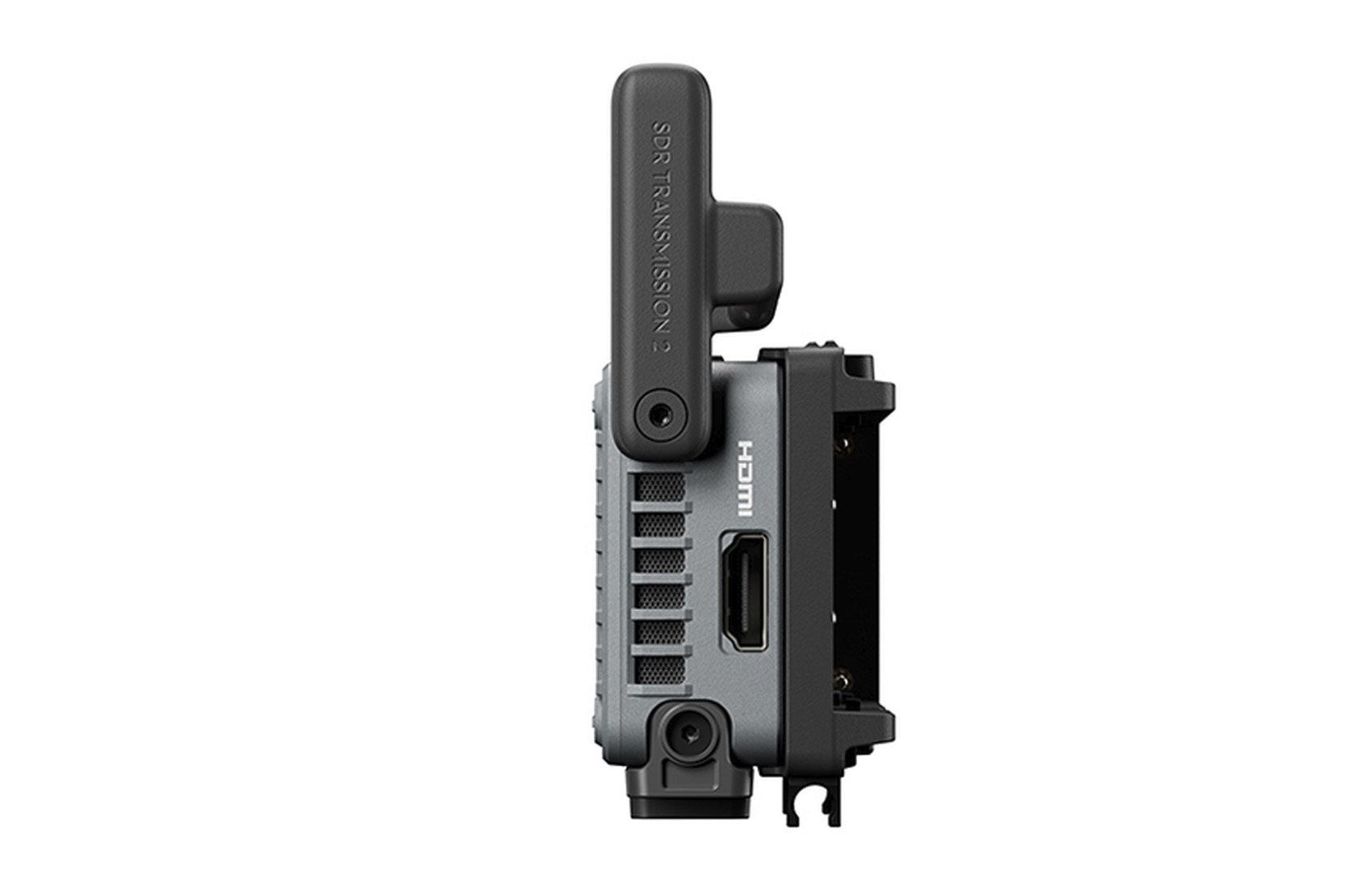

The unit provides one HDMI and two USB-C ports. Its lightweight body reduces the load on handheld gimbals and mounts easily across a wide range of camera setups.

Transceiver Cage
For car mounts and other outdoor setups, the cage adds rugged protection with plenty of mounting points. It locks the unit firmly onto a wide range of gimbals and rigs.
