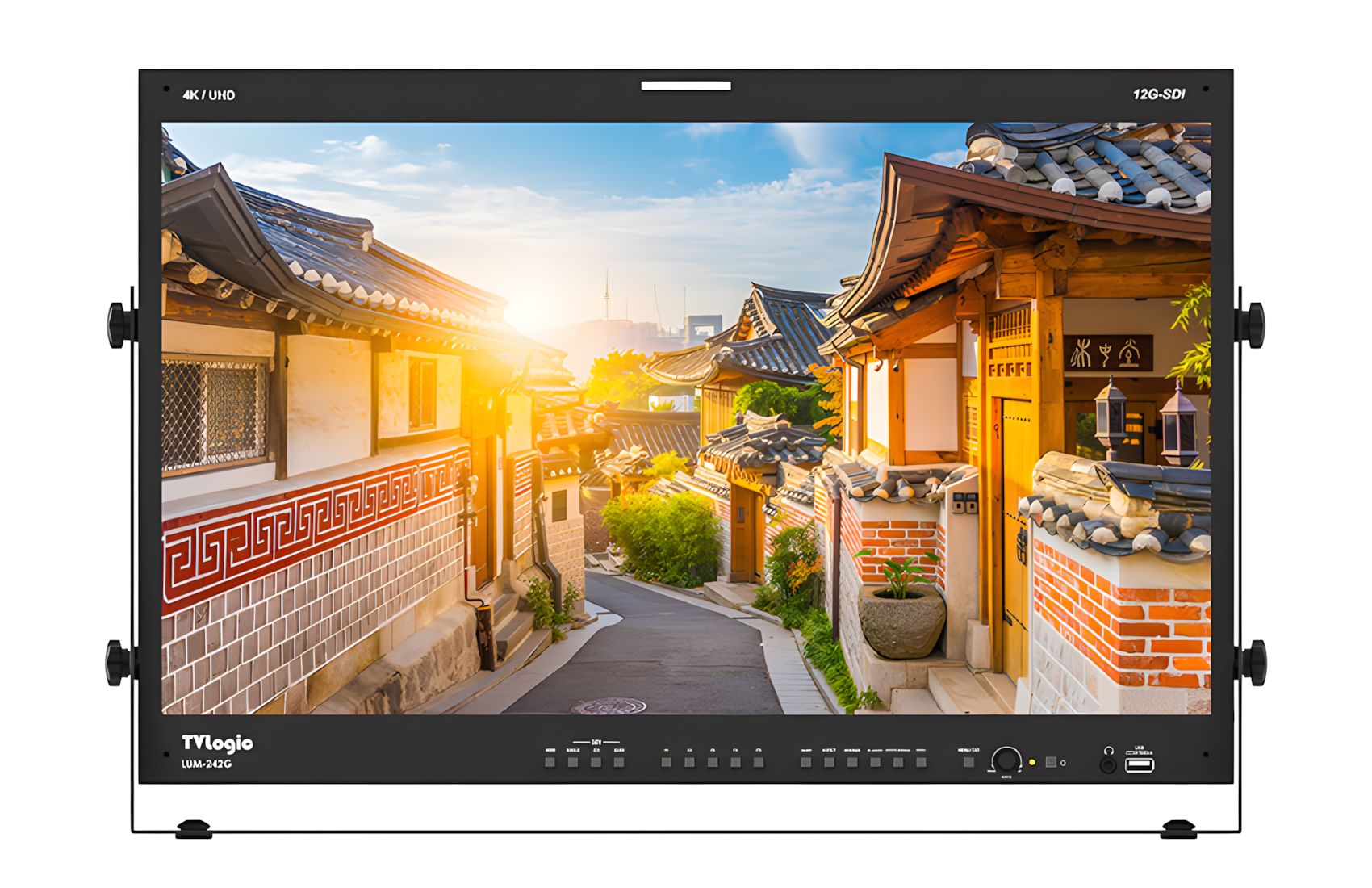

TVLogic Monitor
LUM-242G
MFR# TVL-LUM-242G
BLK# 395-0062
in-Store Price: 4.756,56€ + VAT
Online Price: 4.566,29€ + VAT
- Preview Monitor
- LCD IPS 24" 3840x2160Pixel
- 12G/HD/SD-SDI IN/OUT
- HDMI 4K up to 3840x2160 50P/60P
- Ethernet and USB connections
- Contrast: 1200:1 - Brightness: 500nits
- Focus Assist / WFM / Vectorscope
- HDR Emulation
A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.
* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function
And in TVLogic monitors, HDR Emulation function includes the control parameters below;
* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Monitor Type
-
Preview Monitor
PANEL
- Panel Size
-
24"
- Panel Type
-
LCD IPS
- Panel Aspect Ratio
-
16:9
- Input Resolutions
-
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
- Frames Supported
-
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
25P/50i @720x576Pixel
30P/60i @720x480pixel
- Contrast
-
1200:1
- Brightness
-
500 nits
- Colors
-
1.07billion
- Viewing Angle
-
178 Degrees

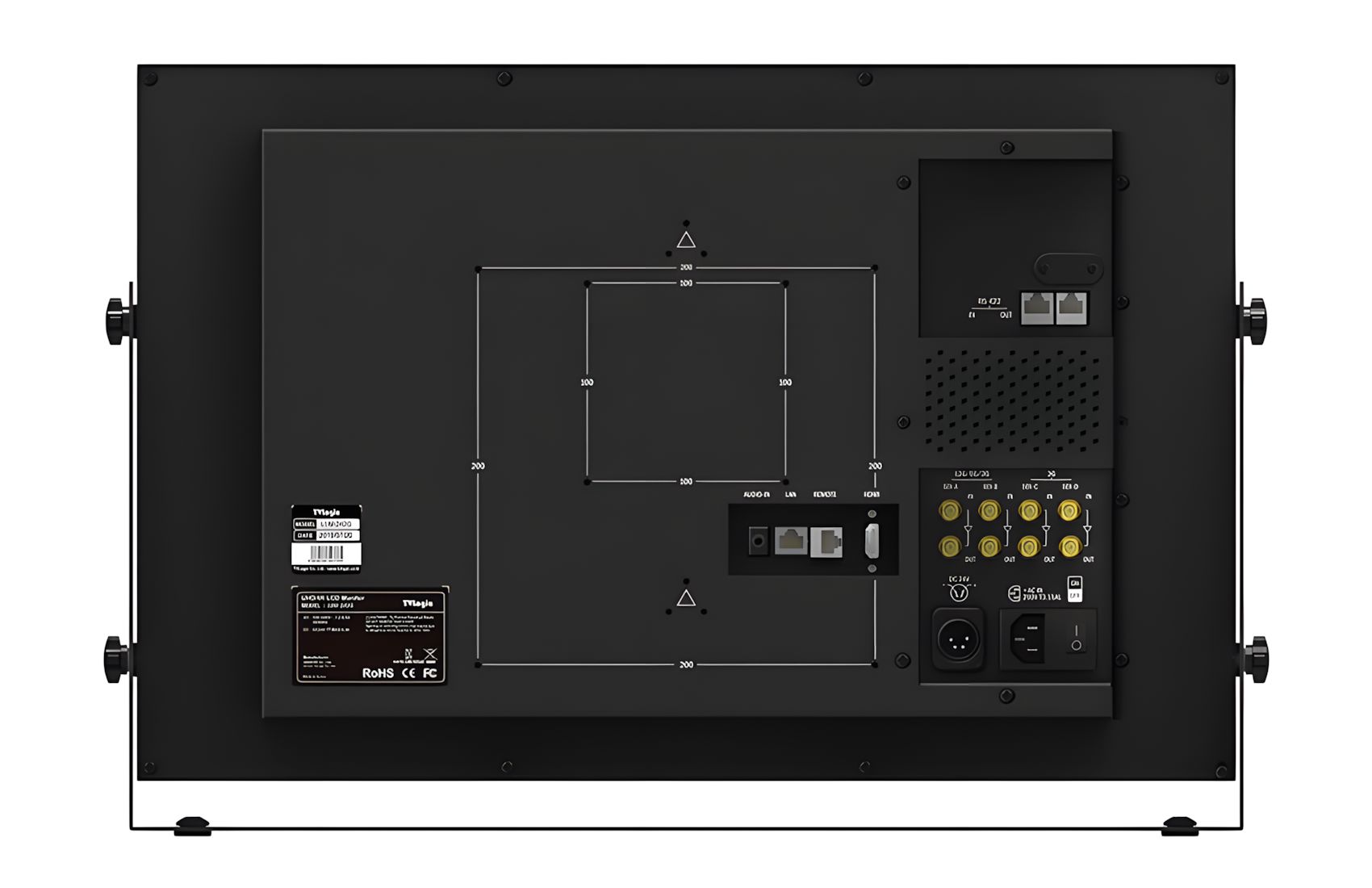

CONNECTIONS
- Video inputs
-
12G/3G/HD/SD-SDI (BNC) x2
3G/HD/SD-SDI (BNC) x2
HDMI 4K x1
- Video outputs
-
12G-SDI LOOP x2
3G-SDI LOOP x2
- Audio inputs
-
Jack 3.5mm x1
Embedded audio SDI x4
Embedded audio HDMI x1
- Audio outputs
-
Jack 3.5mm x1
Embedded Audio SDI x4
- PC Connections
-
USB
Ethernet RJ-45
GENERAL FEATURES
- Monitor Features
-
Waveform
Vectorscope
Focus Assist
Zoom
Blue Only
Overlay - Scan Mode
Guides - Safety Marker
Audio Meters
Timecode Display
- Tally
-
Yes
- Speakers
-
Yes
MORE SPECIFICATIONS
- Extras
-
HDR Emulation.
- Power
-
4pin XLR DC input
AC 220V
- Power Consumption
-
Not specified (12V or 220V)
- Country of Origin
-
Korea
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 58.6 x 38.8 x 15 cm
- Total Weight
- 10.3 kg
- Product Dimensions
- 552x360x98 withound stand
- Monitor
- AC Power Cord
- Stand
- General Features
- General_Features.pdf
