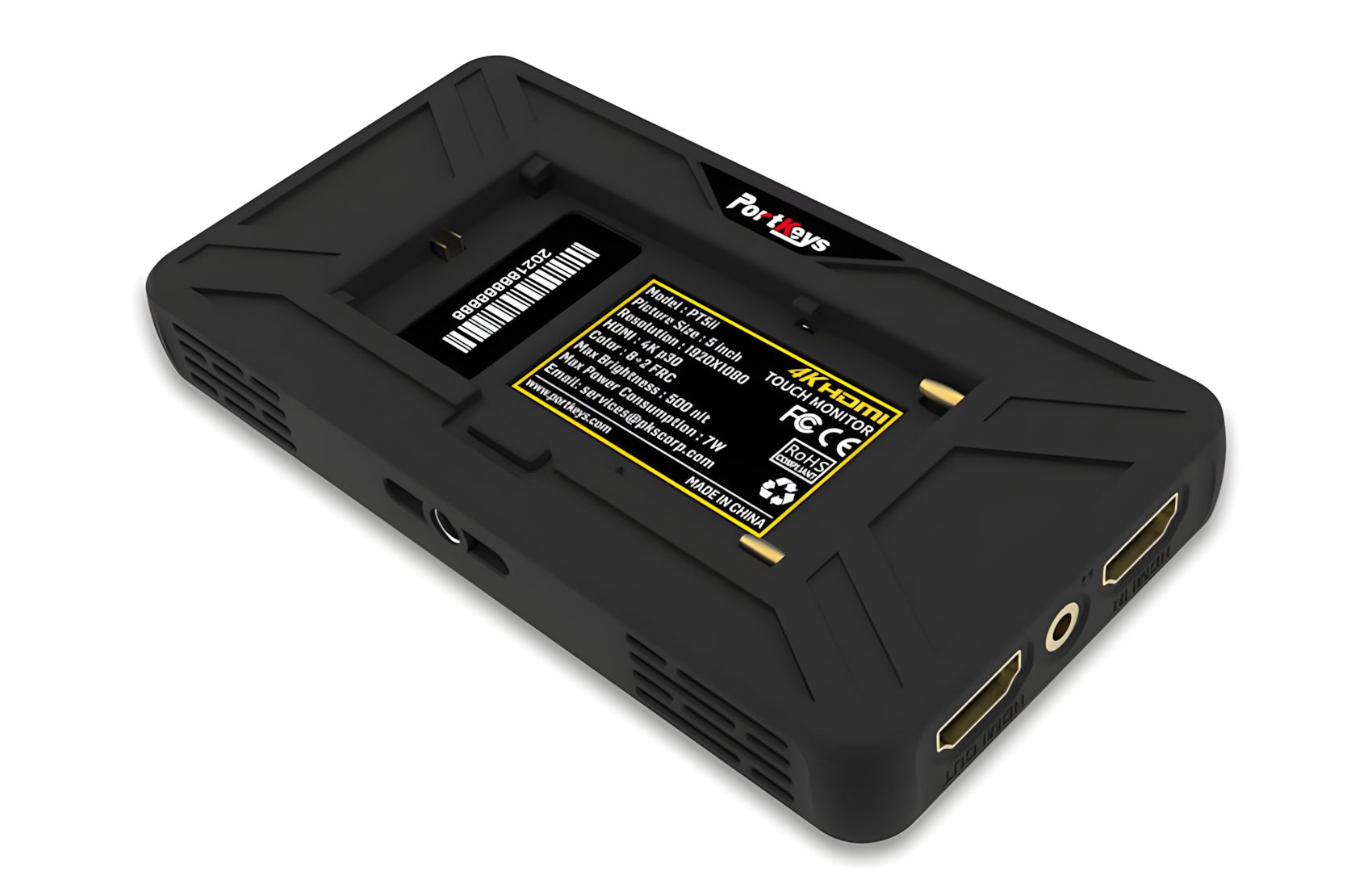

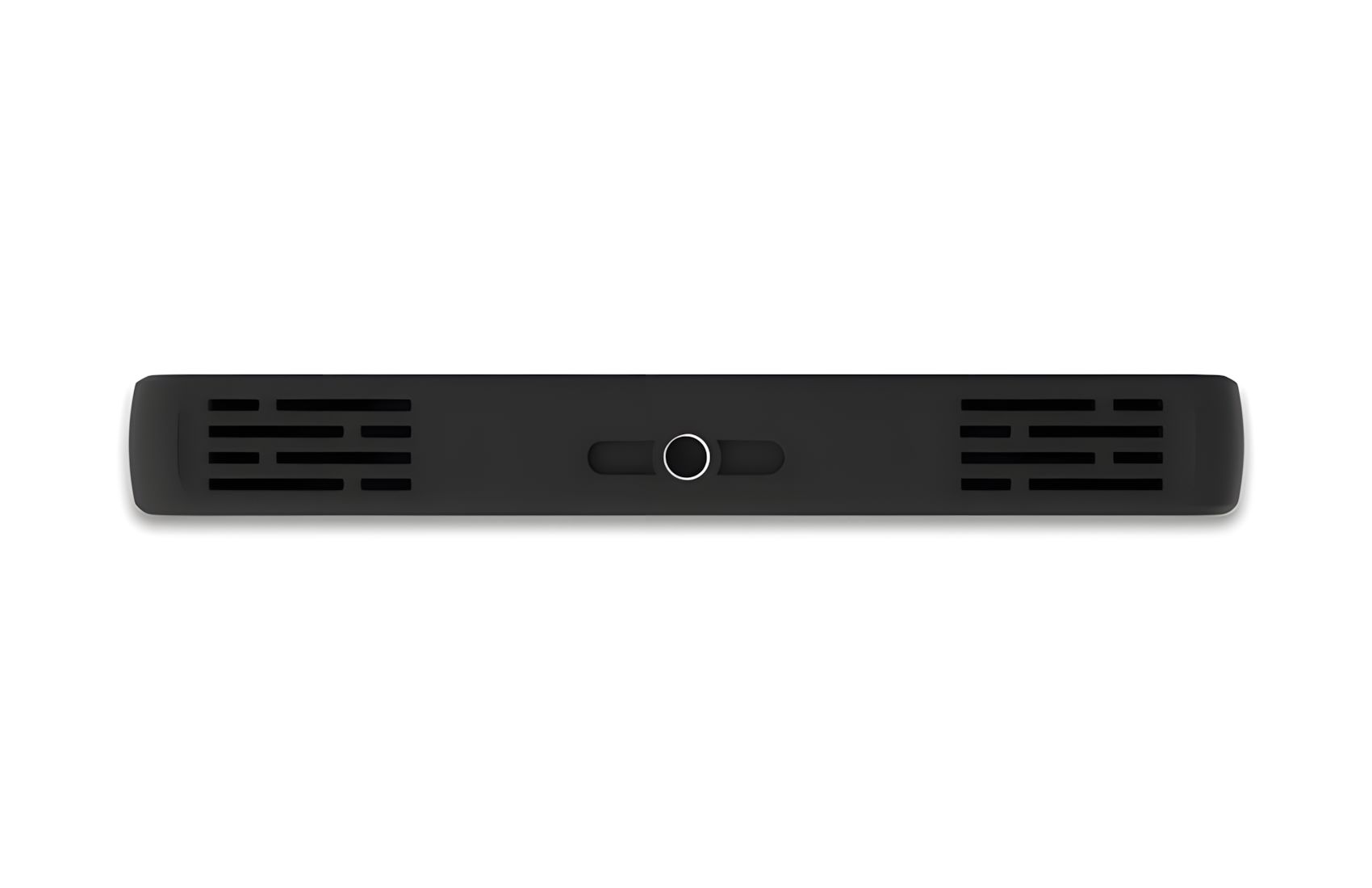

Portkeys Monitor
PT5 II 5-Inch 4K HDMI
MFR# PK-PT5-II
BLK# 591-0013
in-Store Price: 142,30€ + VAT
Online Price: 136,60€ + VAT
- On-Camera Monitor
- LCD 5" 1920x1080Pixel
- 4K HDMI IN and OUT
- 10-bit Color Depth
- USB for Firmware updates
- Contrast:1000:1 Brightness:500nits
- 3D LUT Support / WFM / Peaking
- High Quality
A compact 5 inch 500nit Brightness touchscreen monitor with a resolution of 1920x1080, for an incredibly low price. Only weighs 137 grams. Dimensions 136x72x17mm, ABS Engineering Plastics.
Advanced functions such as:
3D LUT, RGB en Luma Waveform, Zebra, Anamorphic, Check Field, Grids, Audio Meters, Image Flip, Color Temperature, Peaking, Zooming, Cross Hair, Display Flip, False Color, Histogram, Custom RGB...
Signal Input 4K HDM
Signal Output 4K HDMI
Audio Output 3.5mm Headphone Jack
Upgrade Firmware/Load LUT USB-A
Power Input/Output DC 7.4~24V(support power supply to camera)
Support Battery Model Sony NP-F970/F960/F750/F550,Canon LP-E6
Some specifications:
- Custom 3D LUT monitoring.
- Exposure tools: RGB and Luma Waveform, Zebra, False Color, Histogram.
- Focusing tools: Peaking, Zooming.
- Framing tools: Check Field, Grids, Image Flip, Cross Hair.
- Audiometers and battery level.
- Display adjustments: Anamorphic, Color Temperature, Contrast, Sharpness, Brightness, Tint, Backlight, Display Flip, Underscan.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Monitor Type
-
On Camera Monitor
PANEL
- Panel Size
-
5"
- Panel Type
-
LCD with LED Backlight
- Panel Resolution
-
Full HD 1920x1080pixels
- Panel Aspect Ratio
-
16:9
- Input Resolutions
-
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:9 aspect ratio)
UHD: 3840x2160pixels
4K: 4096x2160pixels
- Frames Supported
-
24P @4096x2160Pixel
24P/25P/30P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
50P/50i/60P/60i @720x576Pixel
50P/50i/60P/60i @720x480pixel
- Contrast
-
1000:1
- Brightness
-
500 nits
- Color Depth
-
10-bit
- Viewing Angle
-
178 Degrees
CONNECTIONS
- Video inputs
-
HDMI 4K x1
- Video outputs
-
HDMI 4K x1
- Audio outputs
-
Jack 3.5mm x1
- PC Connections
-
USB
GENERAL FEATURES
- Monitor Features
-
Waveform
Histogram
Zebra
Peaking
Zoom
False Color
Image Flip
3D LUT Support
RGB Parade
- Speakers
-
No
MORE SPECIFICATIONS
- Power
-
Sony NP-F970 Type battery
Sony NP-F960 Type battery
Sony NP-F550/F570 Battery
- No. of battery slots
-
1
- Power Consumption
-
6Watt (7-24V)
- Country of Origin
-
China
- Warranty
- 6 Months
PHYSICAL
- Total Dimensions (LxWxH)
- 13.6 x 7.2 x 1.7 cm
- Total Weight
- 140 gr
- 1x PT5 II Monitor

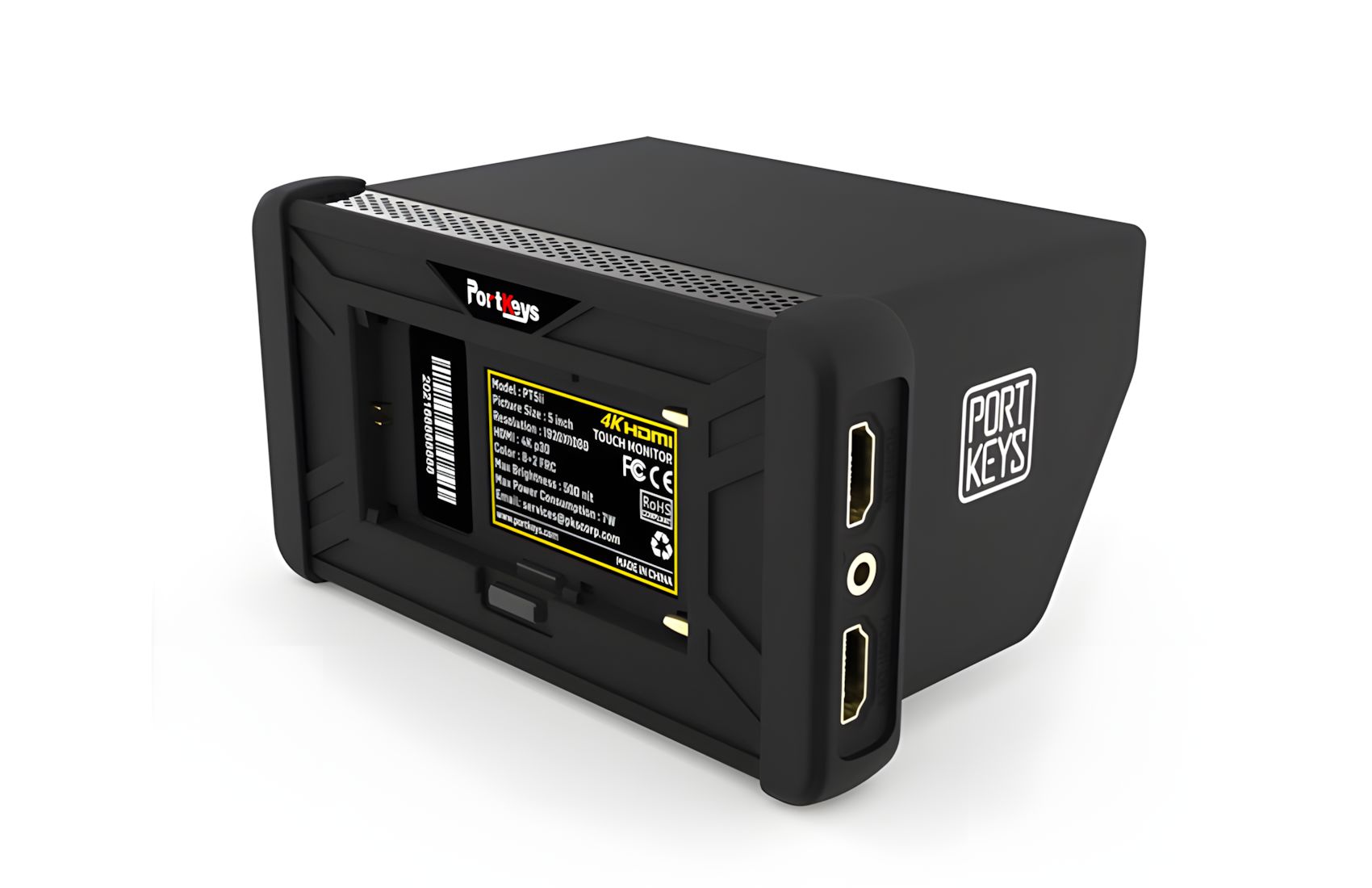

- 1x Sun Shade
- 1x Sun Shade Rubber Cover (Left)
- 1x Sun Shade Rubber Cover (Right)
- 1x HDMI-A to HDMI-D Cable
- 1x HDMI-A to HDMI-A Cable
- 1x Monitor Holder Mount
- 1x Safety Box
- General Features
- General_Features.pdf
