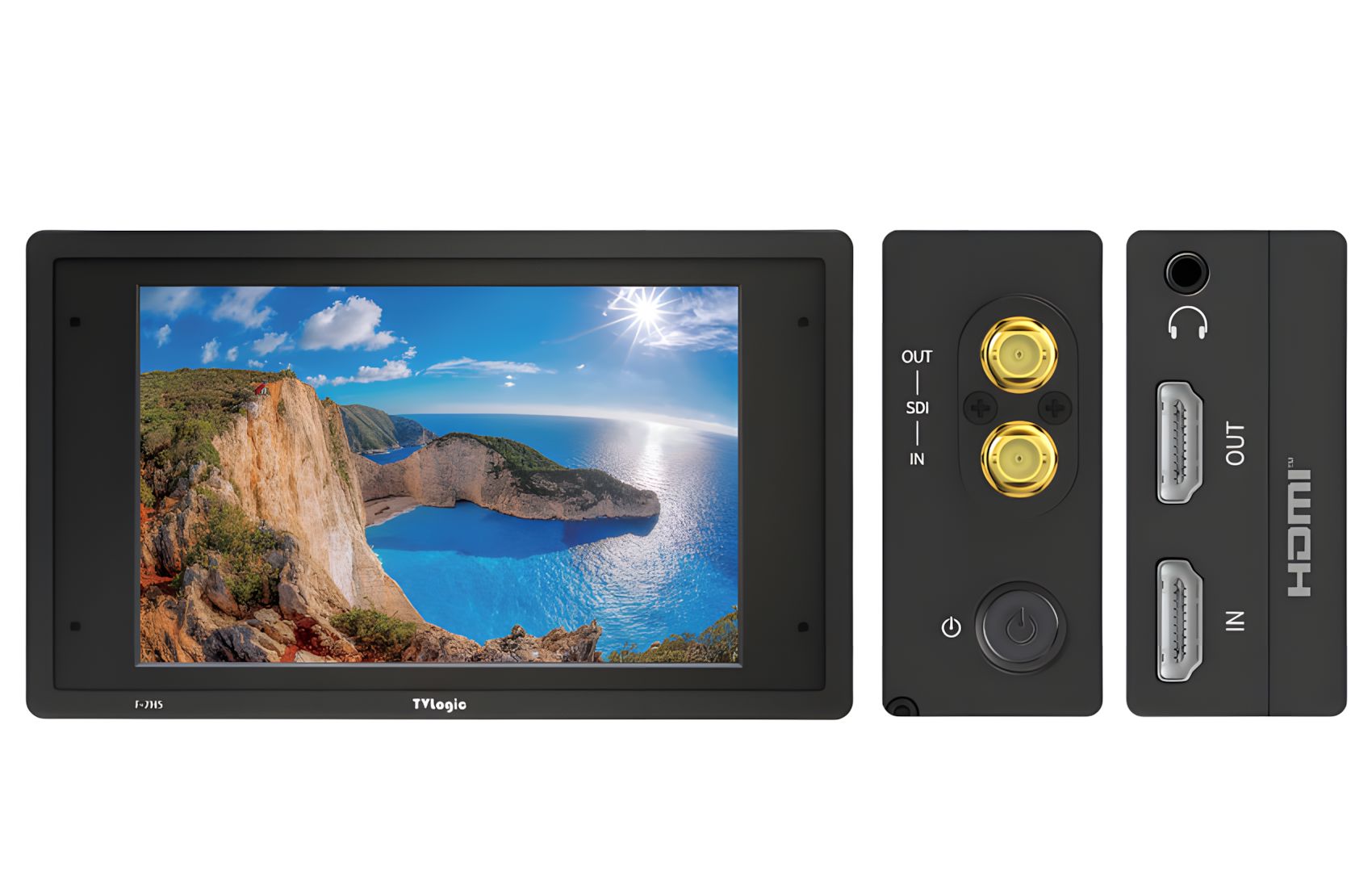

TVLogic Monitor
F-7HS
MFR# TVL-F-7HS
BLK# 395-0086
in-Store Price: 1.357,81€ + VAT
Online Price: 1.303,49€ + VAT
- On-Camera Monitor
- LCD 7" 1920x1080Pixel
- 3G/HD/SD-SDI IN/OUT
- HDMI IN/OUT
- USB for Firmware updates
- Contrast: 1200:1 - Brightness: 1800nits
- Focus Assist / WFM / Image Flip
- High Quality
The F-7HS 7" Full HD Monitor is a High Brightness Field Monitor with Enhanced Sharpness, a 7" 1920x1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine. With the high-quality picture and professional features, F-7HS shows the best performance anywhere.
PRODUCT HIGHLIGHTS
- 7’’ Full HD Resolution (1920 x 1080)
- Luminance up to 1,500nits
- HDMI ↔ SDI Cross Conversion
- HDR Emulation (PQ, HLG, S-Log3)
- Custom 3D LUT Import by USB Flash Drive
- Various Built-in Camera LUTs
- ARRI Metadata
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Monitor Type
-
On Camera Monitor
PANEL
- Panel Size
-
7"
- Panel Type
-
LCD IPS
- Panel Resolution
-
Full HD 1920x1080pixels
- Pixel Density (PPI)
-
323
- Panel Aspect Ratio
-
16:10
- Input Resolutions
-
SD 576i PAL(16:9)
SD 480i NTSC(16:9)
HD 720: 1280x720pixels(16:9 aspect ratio)
HD 1080: 1920x1080pixels(16:10 aspect ratio)
- Frames Supported
-
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P @1280x720Pixel
50P/50i @720x576Pixel
60P/60i @720x480pixel
- Contrast
-
1200:1
- Brightness
-
1800 nits
- Colors
-
1.07 Bilion
- Color Depth
-
10-bit
- Viewing Angle
-
160 Degrees

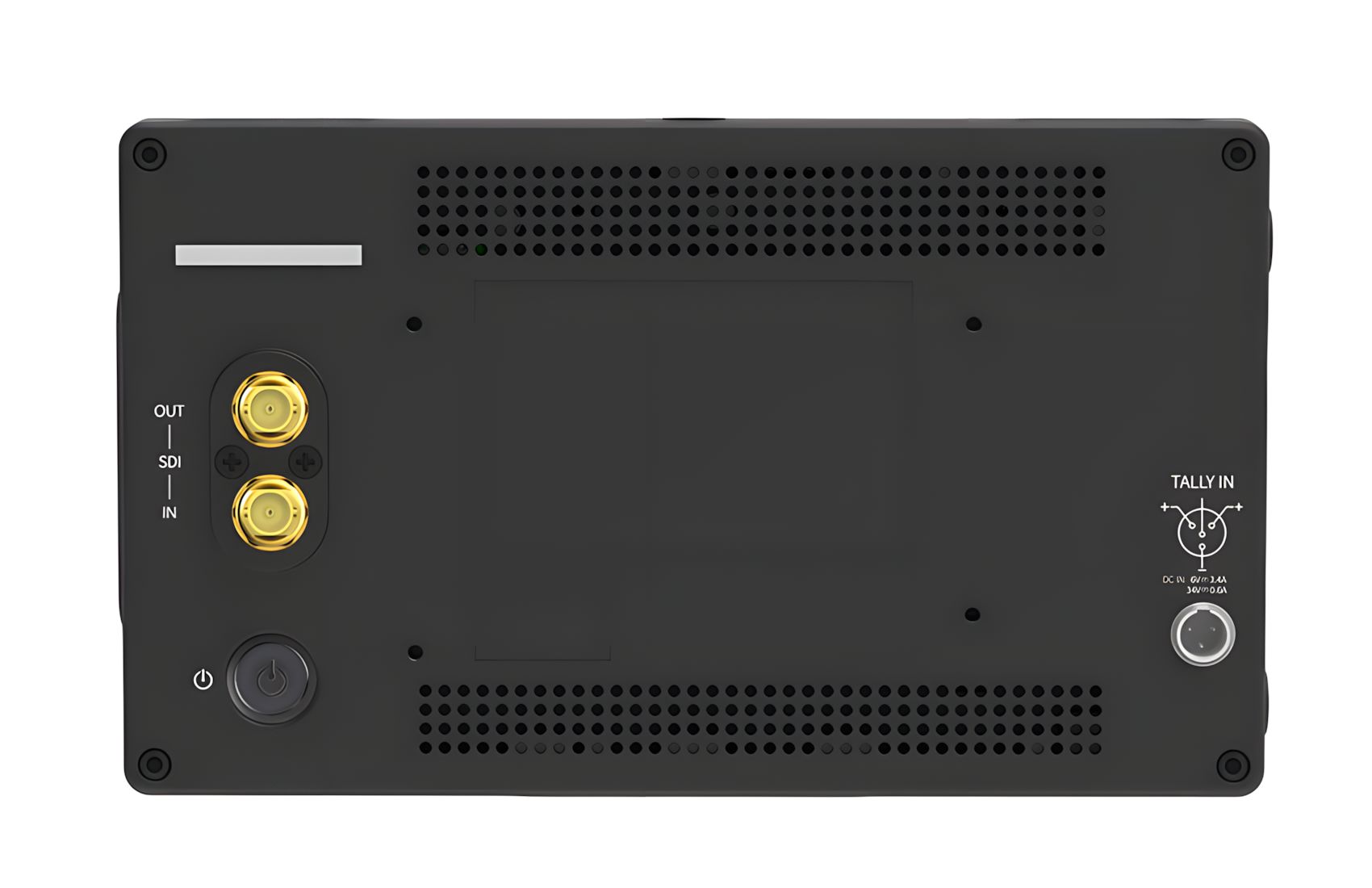

CONNECTIONS
- Video inputs
-
3G/HD/SD-SDI (BNC) x1
HDMI x1
- Video outputs
-
3G-SDI x1
HDMI x1
- Audio inputs
-
Embedded audio SDI x1
Embedded audio HDMI x1
- Audio outputs
-
Jack 3.5mm x1
Embedded Audio SDI x1
Embedded Audio HDMI x1
- PC Connections
-
USB
GENERAL FEATURES
- Monitor Features
-
Waveform
Vectorscope
Focus Assist
Zoom
Blue Only
Image Flip
Guides - Safety Marker
3D LUT Support
Audio Meters
Cross Convertion
Timecode Display
- Speakers
-
No
MORE SPECIFICATIONS
- Extras
-

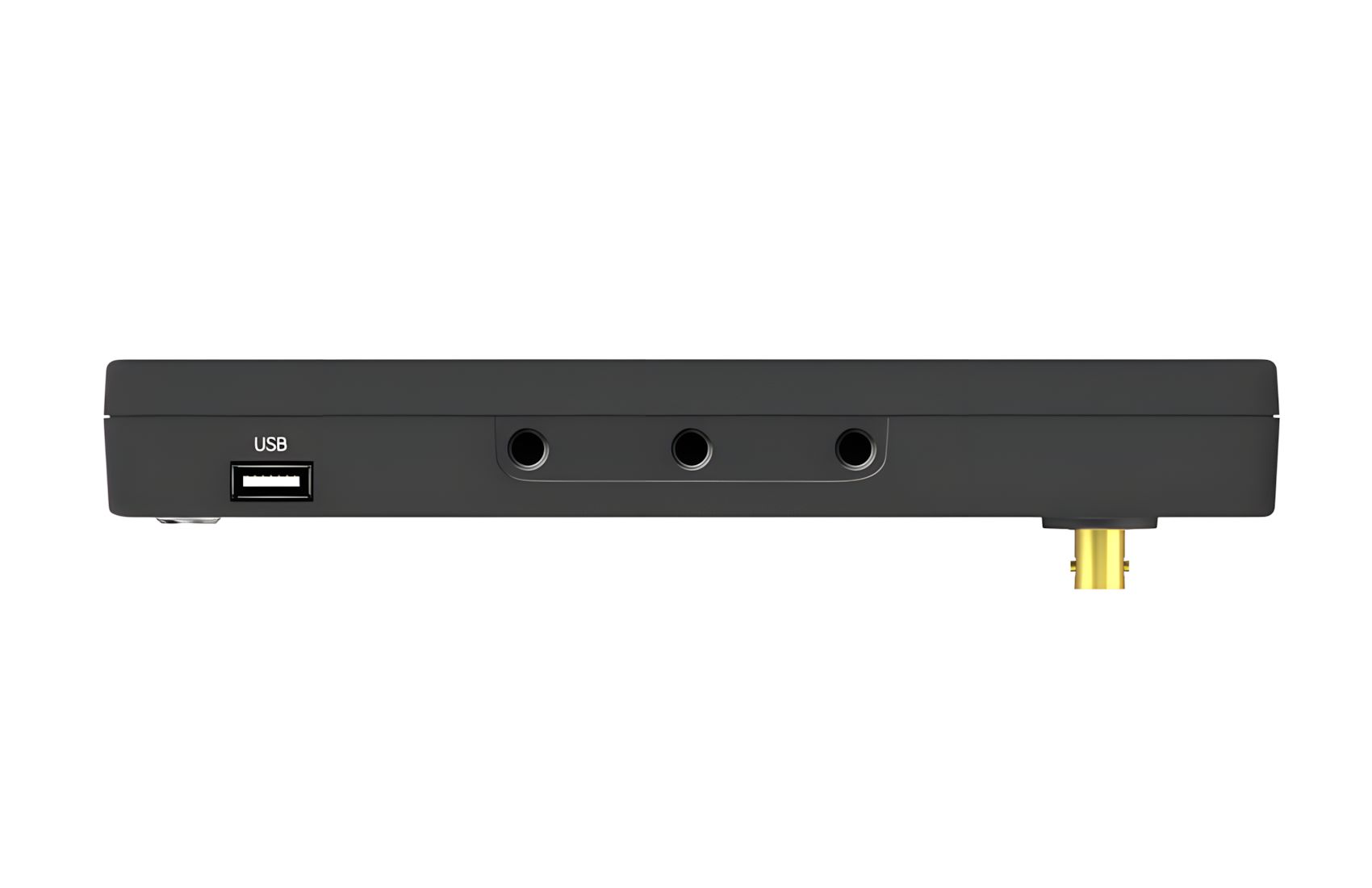

Firmware Update through USB-A.
4x 1/4" Mounting Threads.
HDR Support.
- Power
-
Power adapter
DC input 12V
- Power Consumption
-
21W (12V/1.8A)
- Country of Origin
-
Korea
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 22.1 x 12.5 x 8.3 cm
- Total Weight
- 800 gr
- TVLogic 7" FHS HDR Monitor
- D-Tap Cable
- Camera Mount
- General Features
- General_Features.pdf
