TVLogic Monitor
F-10H
MFR# TVL-F-10H
in-Store Price: 2.857,81€ + VAT
Online Price: 2.743,49€ + VAT
- On-Camera Monitor
- LCD 10.1" 1920x1200Pixel
- 3G/HD/SD-SDI IN/OUT
- HDMI IN/OUT
- 1x RJ45 LAN & 1x RJ45 GPI Ports
- Contrast: 1100:1 - Brightness: 1400nits
- Focus Assist / WFM / Vectorscope / Image Flip
- High Quality

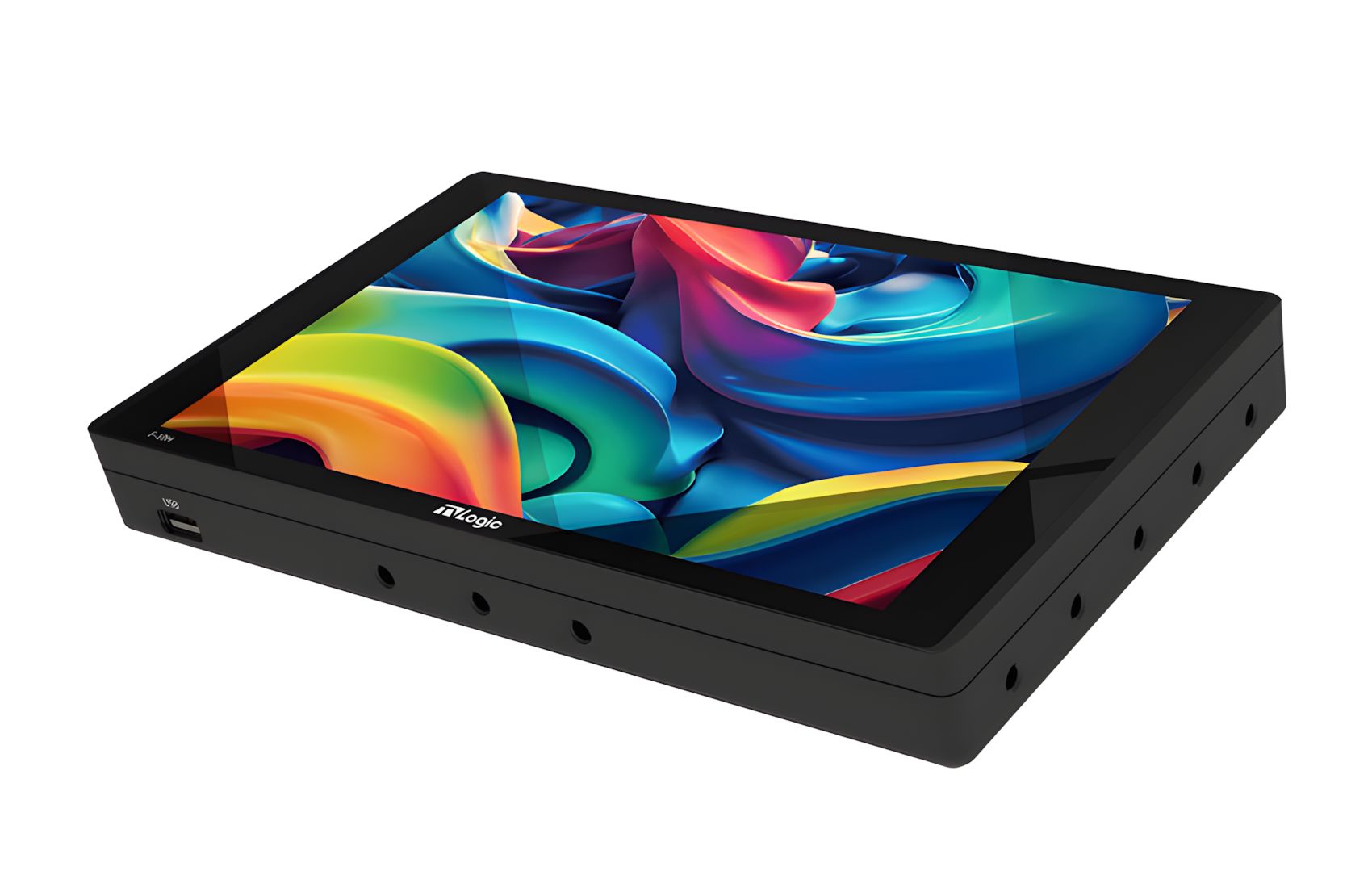

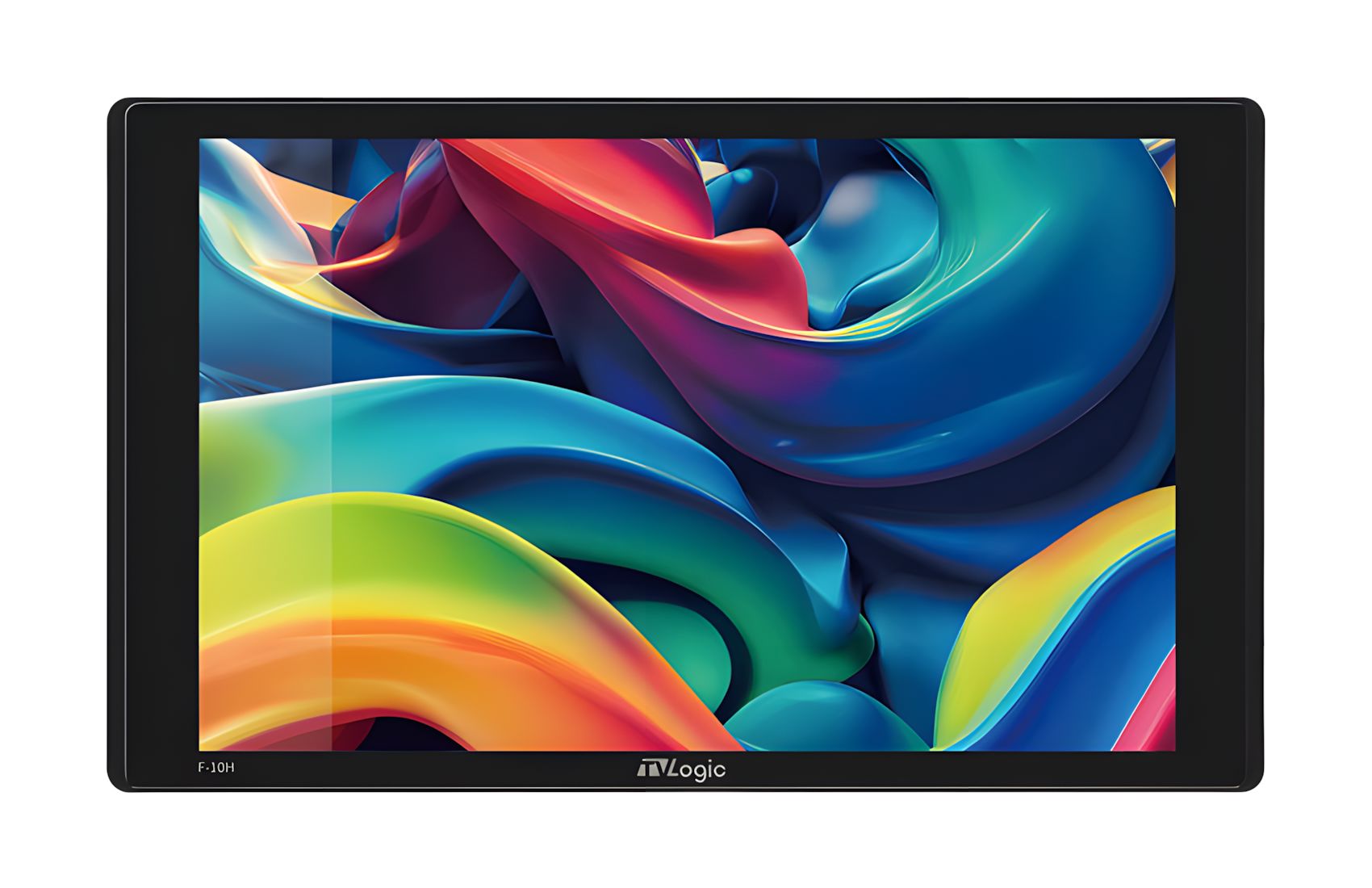

F-10H : 10" HDR High Brightness Field Monitor
10” Full HD Field Monitor engineered for extreme outdoor environments.
Featuring a 1400nit ultra-bright display and a strengthened glass front, the F-10H ensures exceptional visibility and protection in direct sunlight and challenging field conditions.
Its slim, lightweight aluminum body offers portability without compromising durability.
Equipped with advanced tools like 3D LUT import, HDR, ARRI metadata display, Horizontal Level Meter, and precise waveform monitoring, the F-10H is designed to meet the demands of professional cinematographers, DPs, and field crews in any shooting scenario.
Product Highlights
• 10”, Full HD Resolution (1920×1200)
• Max Luminance 1400nits
• DCI-P3 Coverage 95%
• Tempered Glass Treatment
• HDR (PQ / HLG / Slog3)
• Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)
• Custom 3D-LUT Import
• Sharpness + Peaking Boost
• ARRI Metadata Display
• Scan / Anamorphic Desqueeze / Zoom / Split Zoom
• 3x 3G SDI (1x 3G SDI Selectable I/O)
• HDMI 2.0 ↔ SDI Cross Conversion
• Luma(Y') Zone Check (Zebra / Color)
• H/V Flip, Auto Flip
• Horizontal Meter
• Waveform / Vectorscope
• DC 12V ~ 34V
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Monitor Type
-
On Camera Monitor
PANEL
- Panel Size
-
10.1"
- Panel Type
-
LCD IPS
- Panel Resolution
-
1920x1200pixels
- Panel Aspect Ratio
-
16:10
- Input Resolutions
-
HD 720: 1280x720pixels(16:10 aspect ratio)
HD 1080: 1920x1080pixels(16:10 aspect ratio)
- Frames Supported
-
50P/60P 1280x720Pixel.
25P/30P/50P/50i/60P/60i @1920x1080Pixel
- Contrast
-
1100:1
- Brightness
-
1400 nits
- Colors
-
16.7 Million
- Color Depth
-
8-bit
- Viewing Angle
-
170 Degrees
CONNECTIONS
- Video inputs
-
3G/HD/SD-SDI (BNC) x2
HDMI x1
- Video outputs
-
3G-SDI x2
HDMI x1
- Audio inputs
-
Jack 3.5mm x1
Embedded audio SDI x1
Embedded audio HDMI x1
- Audio outputs
-
Jack 3.5mm x1
Embedded Audio SDI x1
Embedded Audio HDMI x1
- PC Connections
-
USB
GPI
Ethernet RJ-45
GENERAL FEATURES
- Monitor Features
-
Waveform
Vectorscope
Focus Assist
Zebra
Zoom
Image Flip
3D LUT Support
Audio Meters
HDR (high dynamic range)
MORE SPECIFICATIONS
- Extras
-
Battery Plates not included
Firmware Update through USB.
HDR Support.
- Power
-
V-Lock Type Battery
DC input 12V
- No. of battery slots
-
1
- Power Consumption
-
20Watt(12V/1.6A)
- Country of Origin
-
Korea
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 25.8 x 15.4 x 3 cm
- Total Weight
- 1.2 kg
- TVLogic F-10H 10" On-Camera Monitor
- D-Tap Cable
- Camera Mount
- General Features
- General_Features.pdf
