Radial Converter
DI Box USB Pro
- DI Box Active
- For In Home/Stage Recording
- Impedance & Signal Matching
- >90dB Dynamic Range

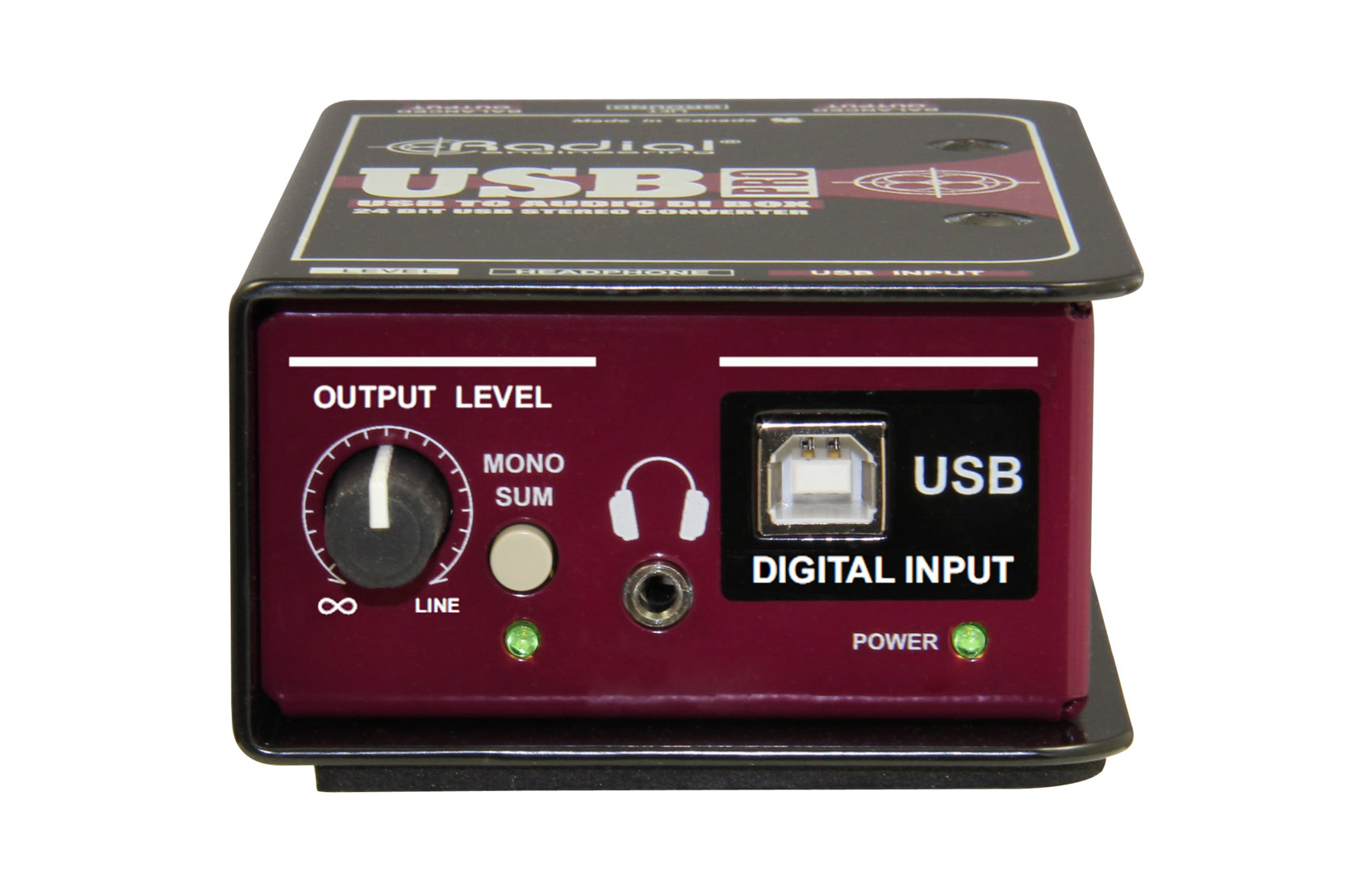

USB Laptop Direct Box
The USB-Pro is a high-resolution stereo digital audio converter and direct box that is designed to connect to any computer and seamlessly convert digital audio tracks to a pair of balanced analog outputs.
- High Performance 24bit/96kHz digital audio converter
- Plug & Play, no drivers required
- 3.5mm headphone output to test signals

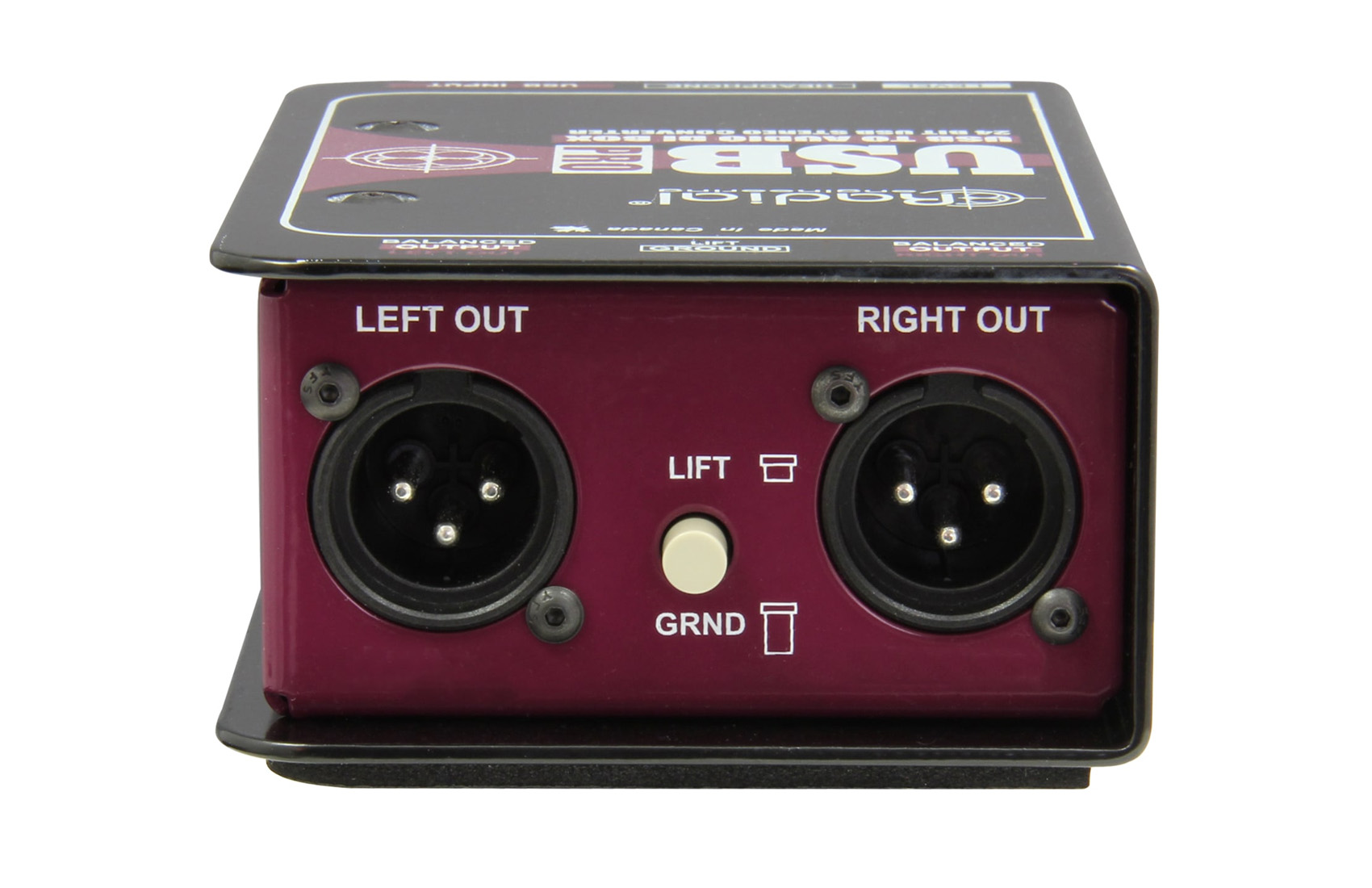

- Balanced XLR outputs to feed a mixer or PA

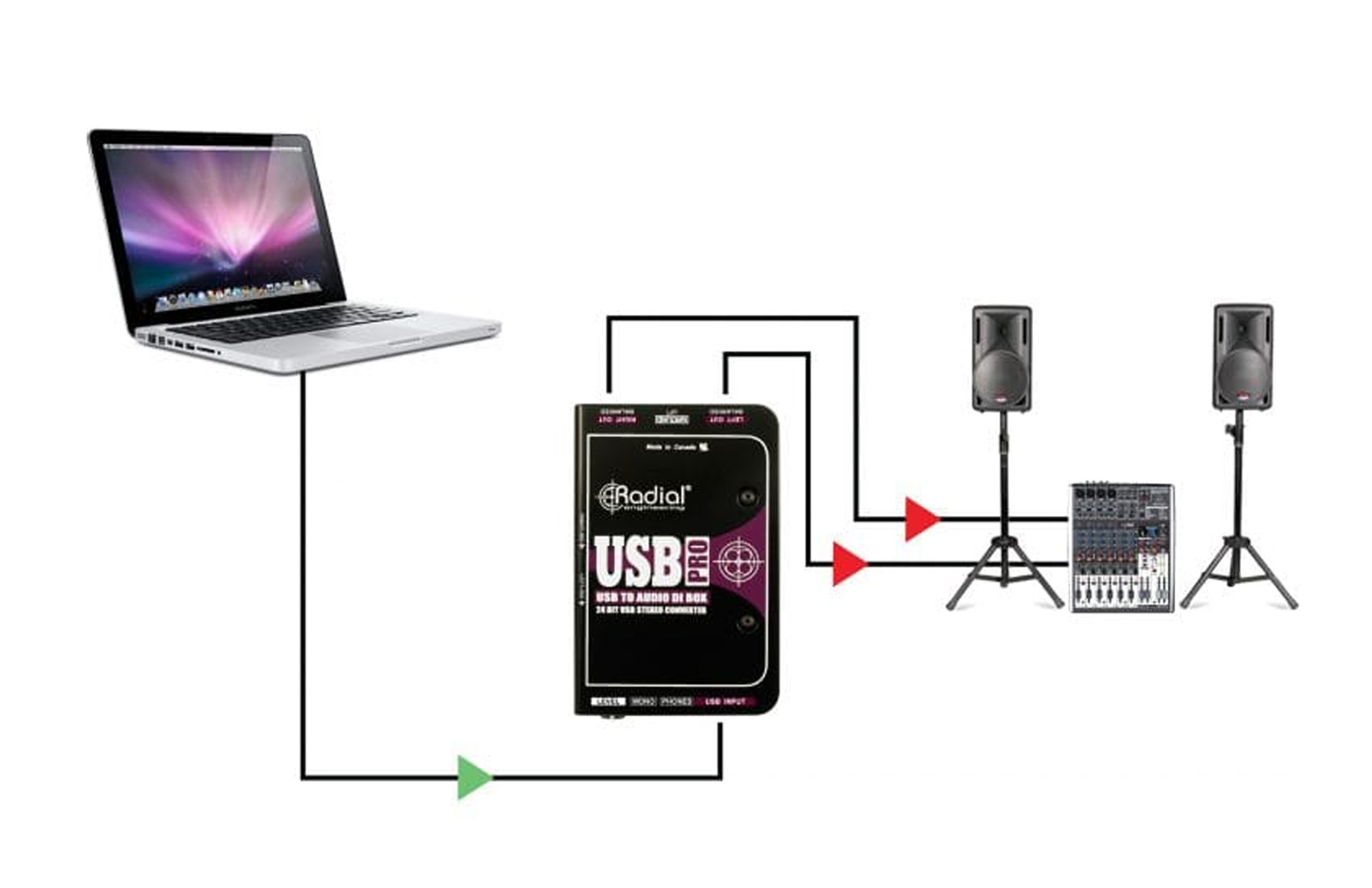

Connect your laptop to a pro audio system
Whether you are playing backing tracks on stage, giving an audio presentation, or performing the role of DJ at an event, the USB-Pro is the easiest way to provide a high-quality, noise-free connection between a laptop and any sound system. Designed for plug-and-play simplicity, only a standard USB Type-B cable (sold separately) is required to connect your laptop and the USB-Pro. It requires no proprietary drivers to operate. Once connected, the USB-Pro will automatically be listed as an available sound card in the audio settings of all popular operating systems, including Windows and Mac, and transport audio via 24bit/96kHz digital-to-analog converters to ensure signal quality is maintained. A stereo pair of balanced XLR outputs allows you to connect to a microphone preamplifier, PA system, mixing console, or even a powered speaker, with an on-board level control for quick and easy volume adjustments. Should any noise be encountered, ground lift switches are provided, and isolation transformers can be inserted into the signal path to eliminate hum and buzz from ground loops, for a clean connection to the PA.
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Converter Type
-
Audio Signal Processor
CONNECTIONS
- Audio Output
-
3-Pin XLR Analog
Jack 3.5mm Phones
- PC Connections
-
USB-B
MORE SPECIFICATIONS
- Extras
-
Single Channel
Output Impedance: 250Ω nominal
ower: USB bus powered 500mA maximum
- Country of Origin
-
Canada
- Warranty
- 3 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 12.7 x 8.4 x 5.1 cm
- Total Weight
- 700 gr
- DI Box
-
Pdf not available.
