Teradek Wireless

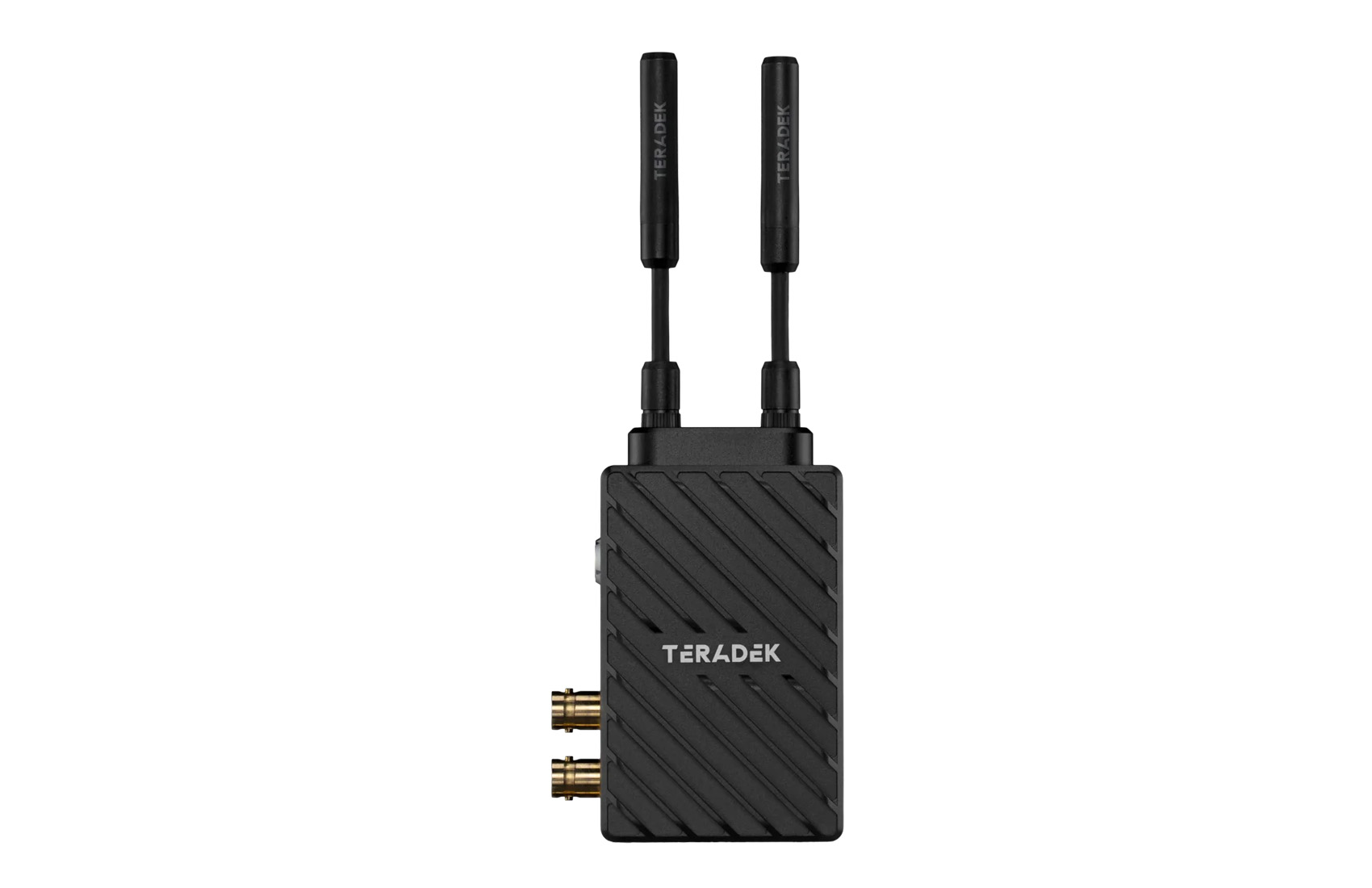

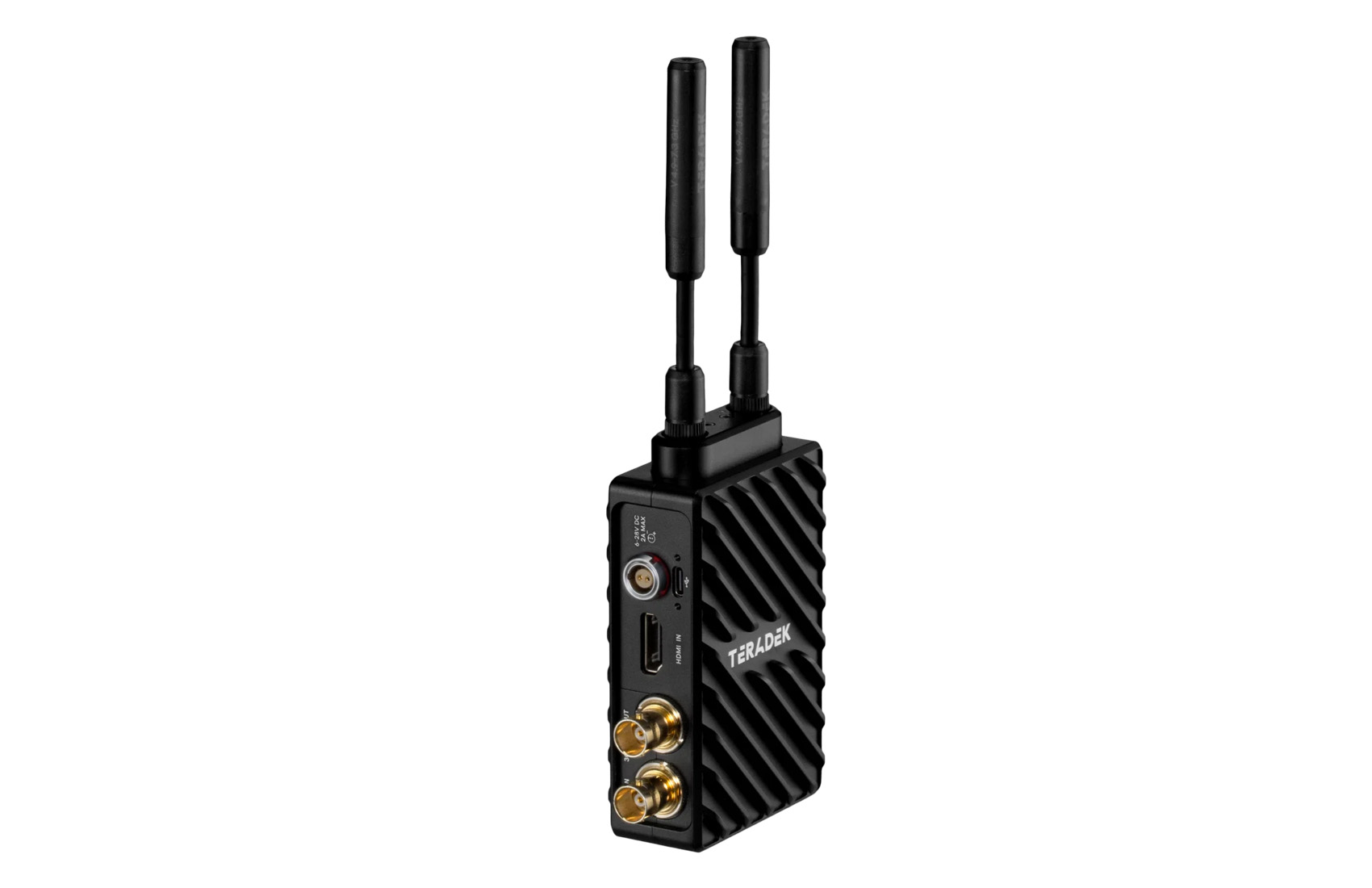

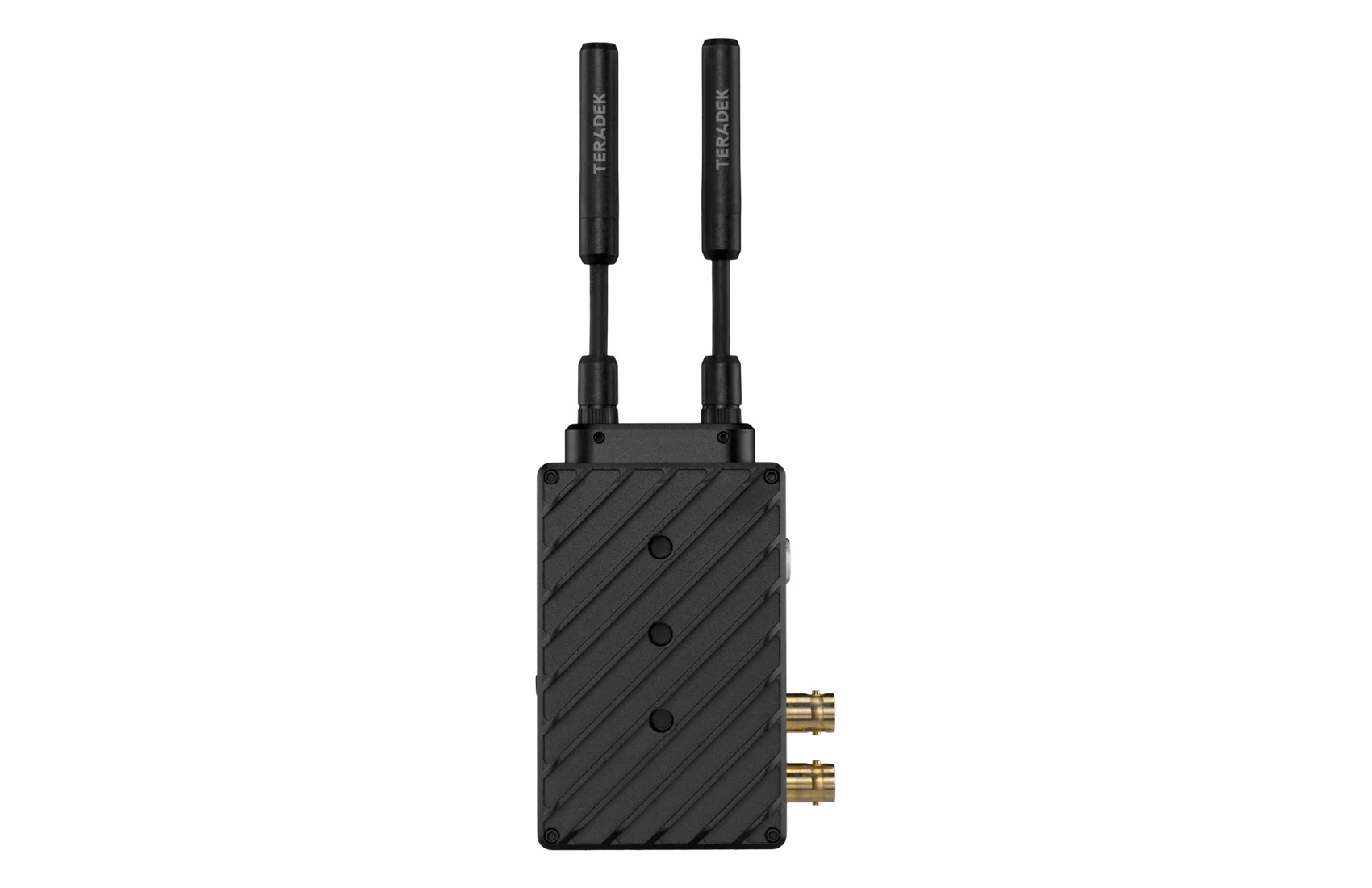

Bolt-6-LT-MAX-TX

MFR# 10-2281

in-Store Price: 6.567,27€ + VAT

Online Price: 6.304,57€ + VAT

Wireless Video Transmitter
New 6 GHz Frequency Band
3G/SD-SDI & HDMI Connectors
Range: 1524m line of sight

Not in stock
Available on order: 15 Business Days

Bolt 6 LT TX is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.

The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT TX can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Source: https://teradek.com/products/bolt-6-lt-tx?variant=45122276491442

STATUS

Status: New
Availability: Available on order: 15 Business Days
Type of Wireless: Wireless Video Transmitter

TRANSMITTER FEATURES

Video inputs (Transmitter): 3G/HD/SD-SDI (BNC)
HDMI 4K
Video outputs (Transmitter): 3G/HD/SD-SDI (BNC)
Audio inputs (Transmitter): 2CH embedded audio HDMI
PC Connections (Transmitter): Micro-USB
Transmitter Mount: M3 Holes
Dimensions(Transmitter): 60x103x33mm
Weight(Transmitter): 0.206KG
Power (Transmitter): 2-Pin Connector 6-28VDC.
9Watts.

WIRELESS FEATURES

Video Resolution: 24P/25P/30P @3840x2160Pixel
24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
50P/60P@1280x720Pixel
50i/50P @720x576Pixel
60i/60P i@720x480Pixel
Range: 1524m line of sight
Wireless Frequency: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz.
DFS Frequencies: 5.270 ~ 5.670 GHz.
RF Output Power (mW): 50.0
Delay (sec): 0.001

MORE SPECIFICATIONS

Extras: 4:2:2 10Bit Video Processing.
HDMI: RGB 4:4:4, 8-bit.
Micro USB for Firmware updates.
Multicast: Up to 6 RX.
Mount: 1/4" holes
Power: Power adapter
Power Consumption: 11 Watt
Country of Origin: USA
Warranty: 1 Year
