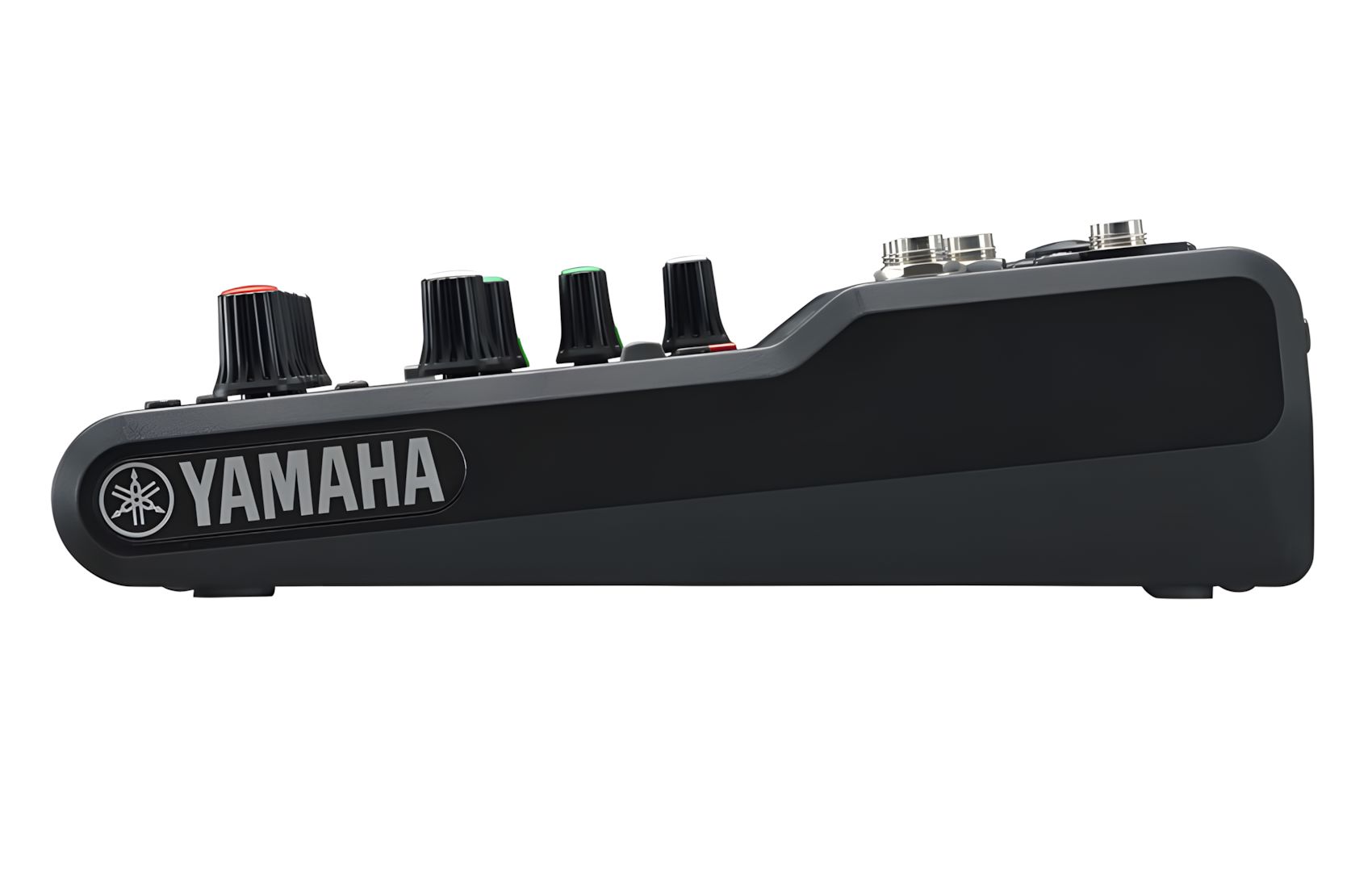

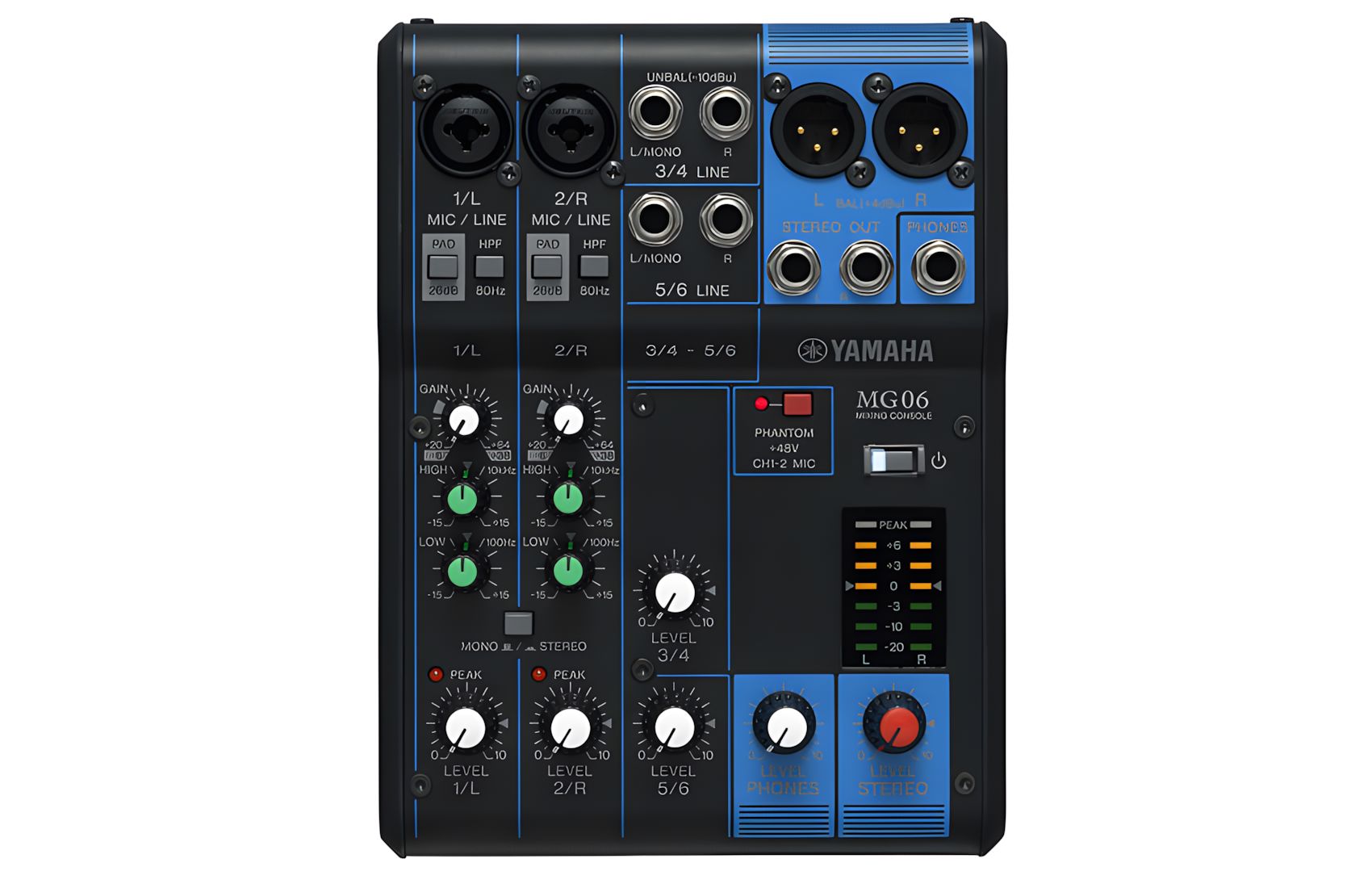

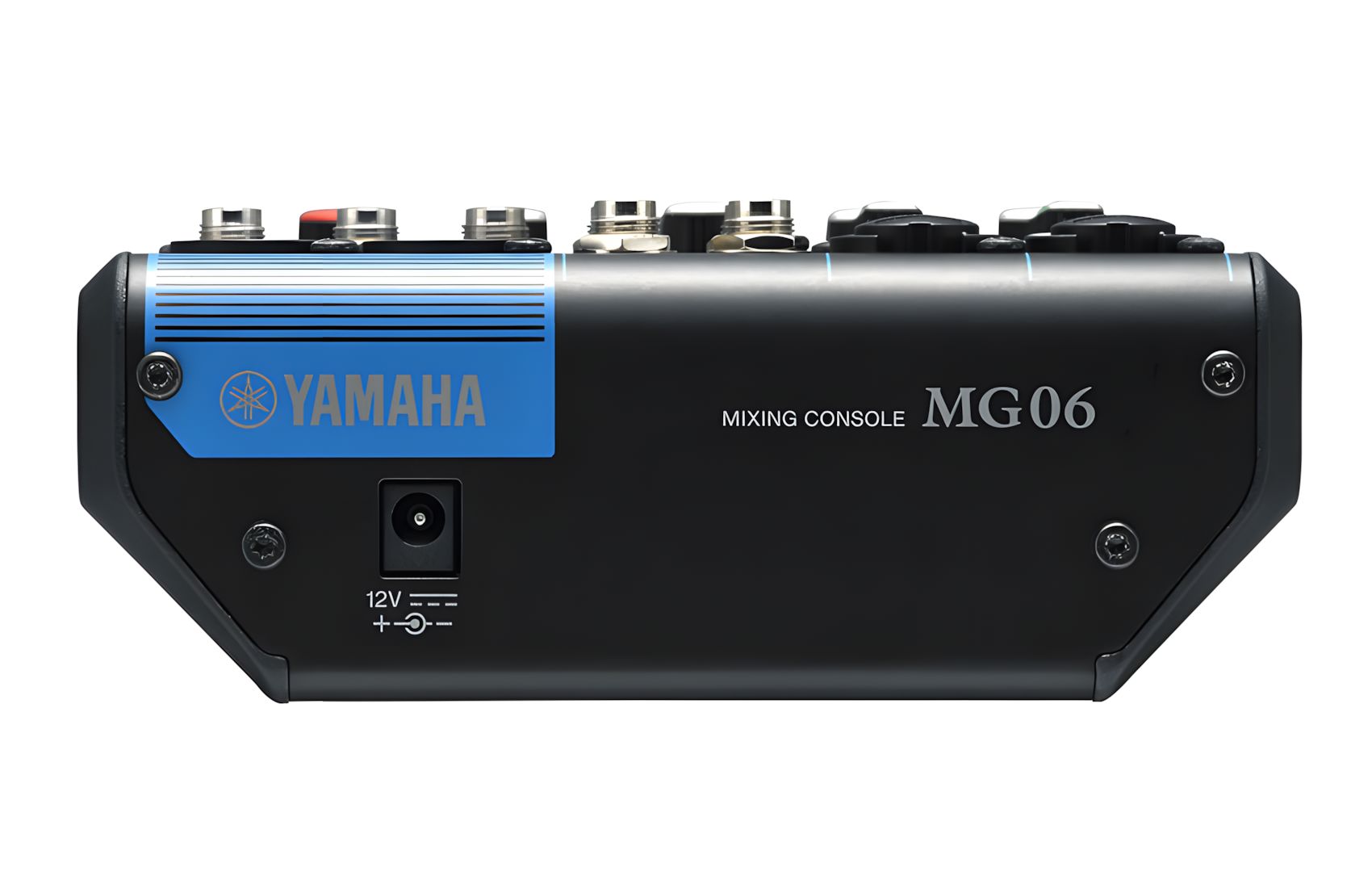

Yamaha Audio Mixer
MG-06
MFR# MG06
BLK# 034-0164
in-Store Price: 116,76€ + VAT
Online Price: 112,08€ + VAT
- Desktop/Portable 6-CH Audio Mixer
- 4x Jack 6.3mm Line inputs
- 2x XLR/Jack 6.3mm MIC/Line inputs
- 2x Jack 6.35mm Line outputs
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
| I/O | Phantom power | +48 V |
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 2 |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| PHONES | 1 | |
| Bus | Stereo: 1 | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono) | |
| EQ HIGH | (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ LOW | (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] | |
General specifications
| Total harmonic distortion | 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min | |
|---|---|---|
| Frequency response | +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) | |
| Crosstalk | -88 dB | |
| Power requirements | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha | |
| Power consumption | 12 W | |
| Dimensions | W | 149 mm (5.9") |
| H | 62 mm (2.4") | |
| D | 202 mm (7.9") | |
| Net weight | 0.9 kg (1.98 lbs.) | |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A | |
| Others | Operating Temperature: 0 to +40˚C | |
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Audio Mixer Type
-
Portable Audio Mixer
- No. of Channels
-
6
- Digital/Analog
-
Analog Mixer
CONNECTIONS
- Audio inputs
-
XLR/TRS Combo (3-pin)
Jack 6.3mm
- Audio Output
-
3-Pin XLR Analog
Jack 6.3mm Line
Jack 6.3mm Phones
GENERAL FEATURES
- Phantom Power 48V
-
Yes
- Digital Effects
-
No
- Equalizer
-
Yes
- Group outputs
-
No
- AUX Outputs
-
No
- PRE Fader
-
No
- Audio Meters
-
Yes
- Peak indicator
-
Yes
- Mount
-
Desktop
- Frequency Response
-
+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
MORE SPECIFICATIONS
- Power
-
Power adapter
- Power Consumption
-
12Watt (12V/1.0A)
- Country of Origin
-
Japan
- Warranty
- 2 Years
PHYSICAL
- Total Dimensions (LxWxH)
- 14.9 x 6.2 x 20.2 cm
- Total Weight
- 900 gr
- Mixer
- Power adapter
- Manual
-
