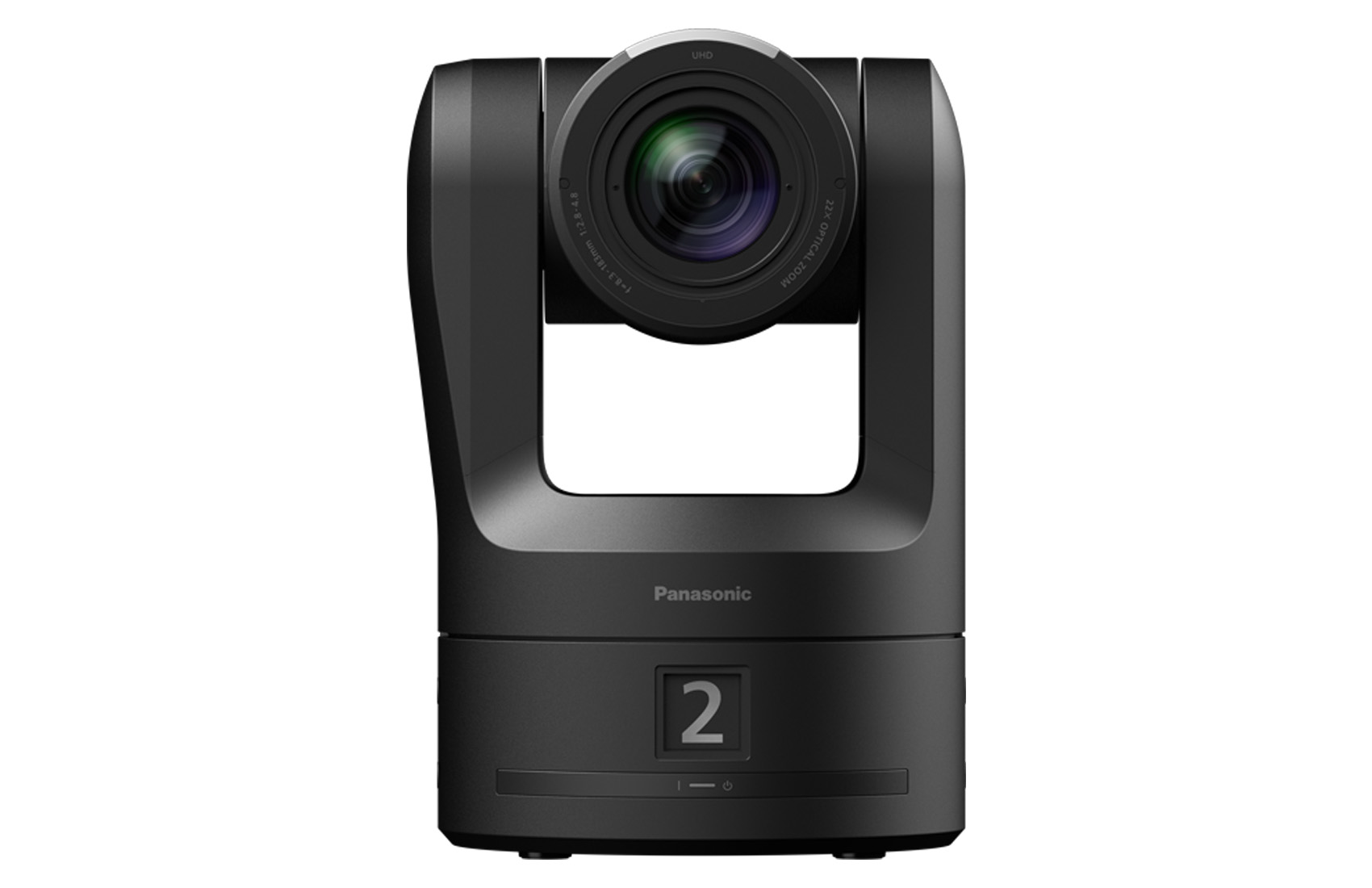

UE210 Black MOS 1.2'' 22X

STATUS

Status

New

Availability

Pre-Order only

Camera Type

4K Camera

VIDEO SPECIFICATIONS

Max Video Resolution

4K

LENS SYSTEM

Sensor Type

MOS

Sensor Size

1/2" (crop factor 5.41)

Sensor Resolution

14MP (Effective).
4K 3840x2160pixels

Lens Mount

Fixed

Focal Length (35mm equivalent)

22.5mm to 500mm (35mm equivalent)

Optical Zoom

22X

Max Aperture

F2.8 to F4.8

Image Stabilizer

Yes

Built-in ND Filters

Yes

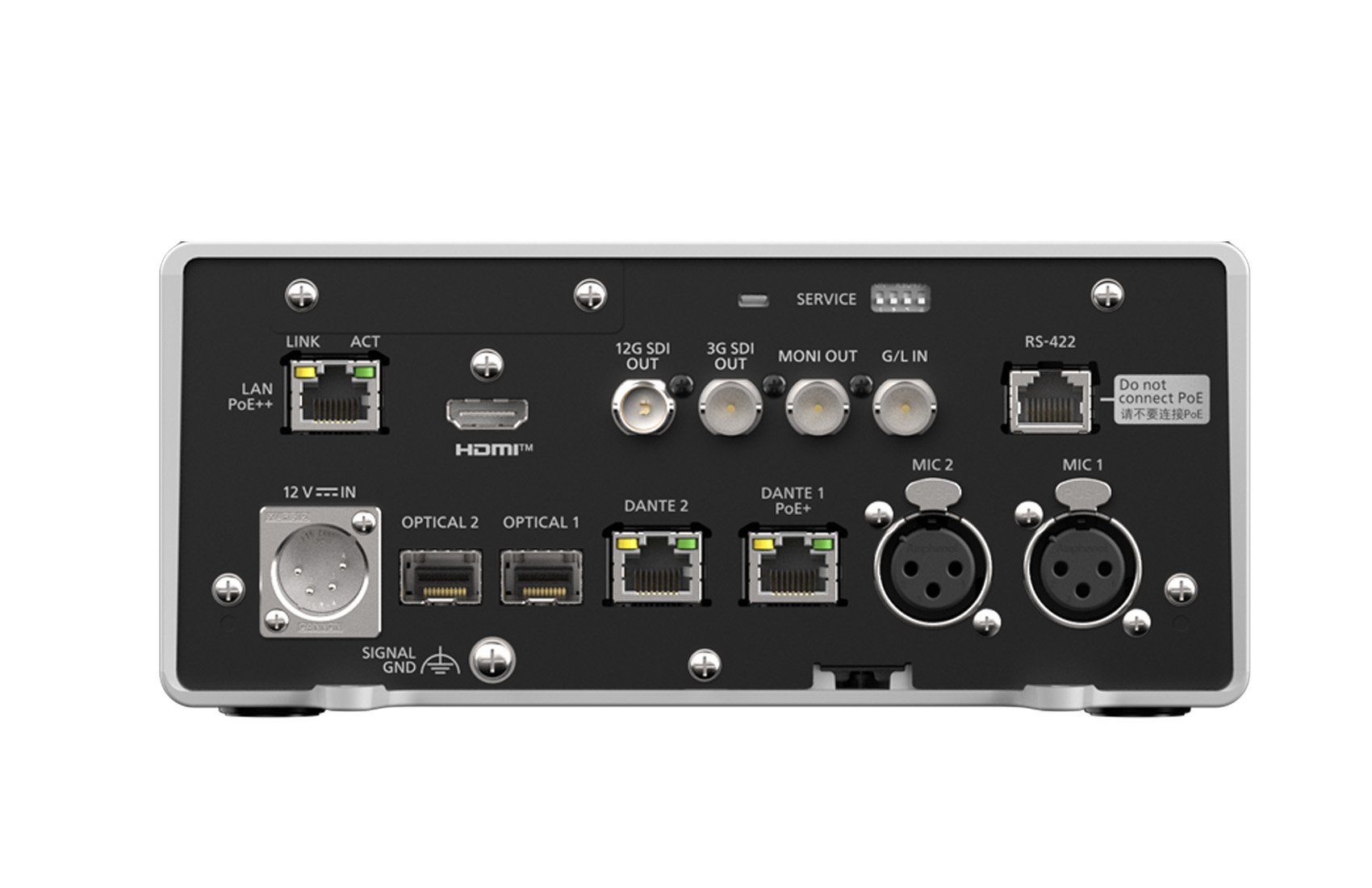

CONNECTIONS

Video outputs

12G-SDI
3G-SDI

No. of Video outputs

1/1/1

Audio inputs

3-pin XLR

No. of Audio inputs

2

Audio outputs

Embedded Audio SDI
Embedded Audio HDMI

PC Connections

USB
RS-422
Ethernet RJ-45 PoE
SMPTE Hybrid Fiber Optic with SMPTE ST 2110 connector (Male)

Other Connections

Genlock input (BNC)

GENERAL FEATURES

Pan/Tilt Operation

Yes

Pan/Tilt Speed

Min: 0.004degrees/sec.
Max: 400degrees/sec.

Pan Range

+/- 175degrees

Tilt Range

-30 to +210degrees

HDR (High Dynamic Range)

Yes

MORE SPECIFICATIONS

Extras

Dante Audio RJ-45 (input: 4ch, output: 4ch)

Power

Powered through ethernet cable (PoE)

Power Consumption

Not Specified.
Power Supply: 10.8 to 13.2 VDC.
PoE: 42 to 57 VDC at 1.2 A.

Country of Origin

Japan

Warranty

1 Year

PHYSICAL

Total Dimensions (LxWxH)

21.2 x 30.8 x 24.8 cm

Total Weight

7.5 kg

Weight Details

7.5Kg(Body Only)
