Marshall Camera
CV574 4K UHD HDMI
- Compact POV HD Camera
- M12 4.0mm 77.2° H.AOV Lens
- 3840x2160 50P/60P
- CMOS 1/2.8" 8.5MP
NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec
Featuring the extremely efficient NDI HX3 codecs gives the miniature CV574 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.
Interchangeable M12 Lenses
Marshall CV574 cameras come with a high-quality 4.0mm (77.2° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Durable, Flexible, Powerful

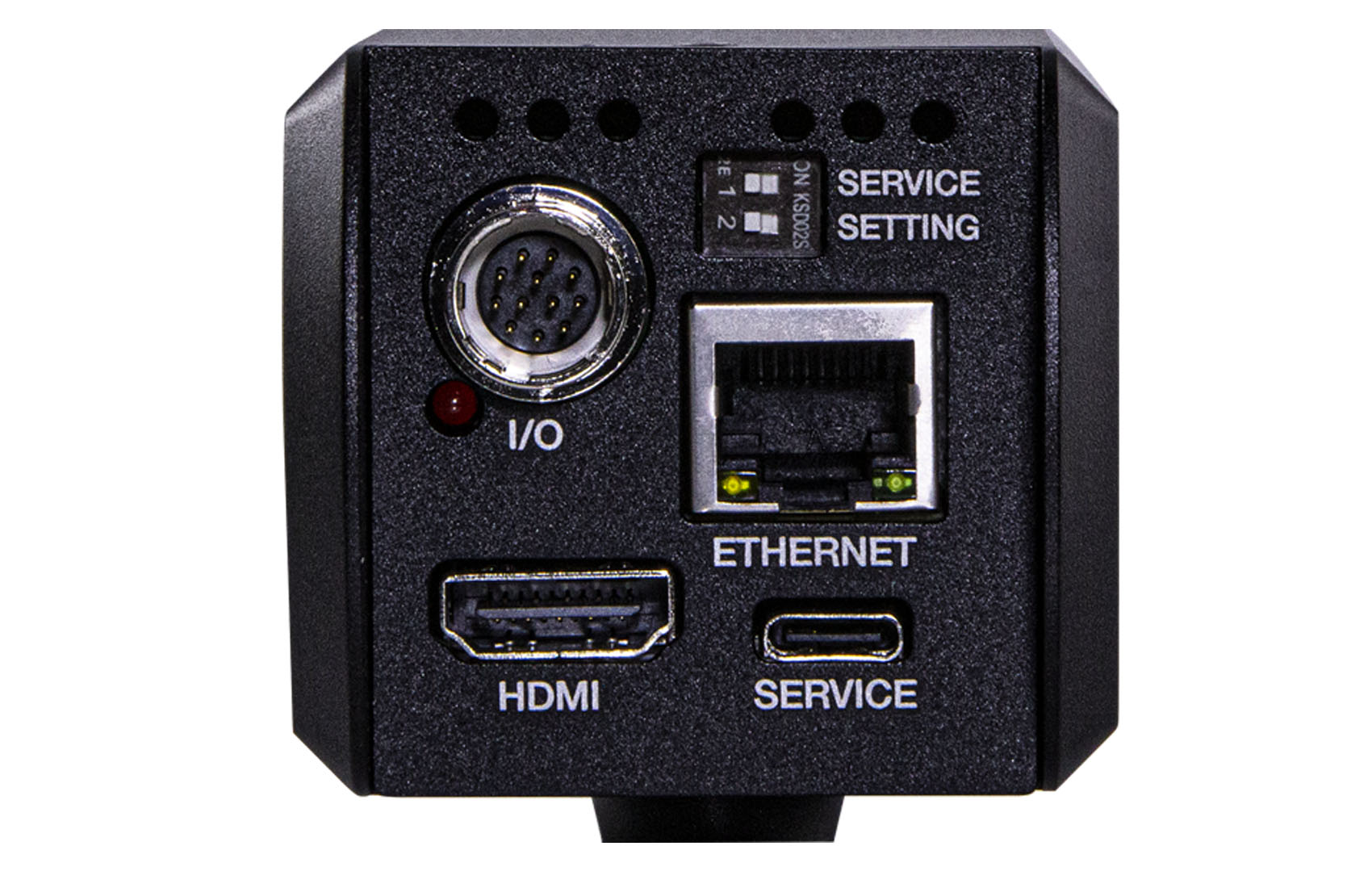

The miniature CV574 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV574 operates with exceptional low-light sensitivity, ensuring a clear Ultra-HD picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Key Features
- 8.46 Megapixel 1/2.8" Sony solid-state image sensor
- CV4804-8MP - Interchangeable 4.0mm lens with 77.2° Horizontal AOV
- 3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25fps
- HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
- One-cable to camera option for power (PoE), video, audio, and remote setting control
- Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
- Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
- PoE over Cat cable or 12V power with included power supply
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Camera Type
-
4K Camera
VIDEO SPECIFICATIONS
- Max Video Resolution
-
4K
- Slow Motion
-
No
- Rec Media
-
No media
STILL IMAGE
- Image Format
-
JPEG
LENS SYSTEM
- Sensor Type
-
CMOS
- Sensor Size
-
1/2.8" (crop factor 6.62)
- Sensor Resolution
-
8.5MP
- Lens Mount
-
M12 Miniature
- Focal Length (35mm equivalent)
-
4mm
- Image Stabilizer
-
No
CONNECTIONS
- Video outputs
-
HDMI
- Audio inputs
-
Jack 3.5mm
- Audio outputs
-
Embedded Audio HDMI
- PC Connections
-
USB
- Other Connections
-
Ethernet RJ45
MORE SPECIFICATIONS
- Extras
-
NDI,VISCA over RS485,IP Control
- Power
-
Powered through ethernet cable (PoE)
- Power Consumption
-
6.7W
- Country of Origin
-
USA
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 9.5 x 5.3 x 5.5 cm
- Dimensions Details
- Body only
- Total Weight
- 764 gr
- Net Weight
- 318 (Body Only)
- CV574 Miniature UHD 4K Camera
- 4.0mm f/1.2.8" 8.5MP M12 Lens
- Specifications
- Marshall-CV574-Specifications-6ac620209c2f1.pdf
