BlackMagic PC-Box

UltraStudio Mini Replay-12G

MFR# BDLKULSDZMINREP12G BLK# 492-0209

in-Store Price: 435,00€ + VAT

Online Price: 417,60€ + VAT

Video PC-Box for Capture/Playback
12G/HD/SD-SDI Key/Fill OUT
12G/HD/SD-SDI Input & Monitor
16CH Embedded Audio IN/OUT

Not in stock
Available on order: 15 Business Days

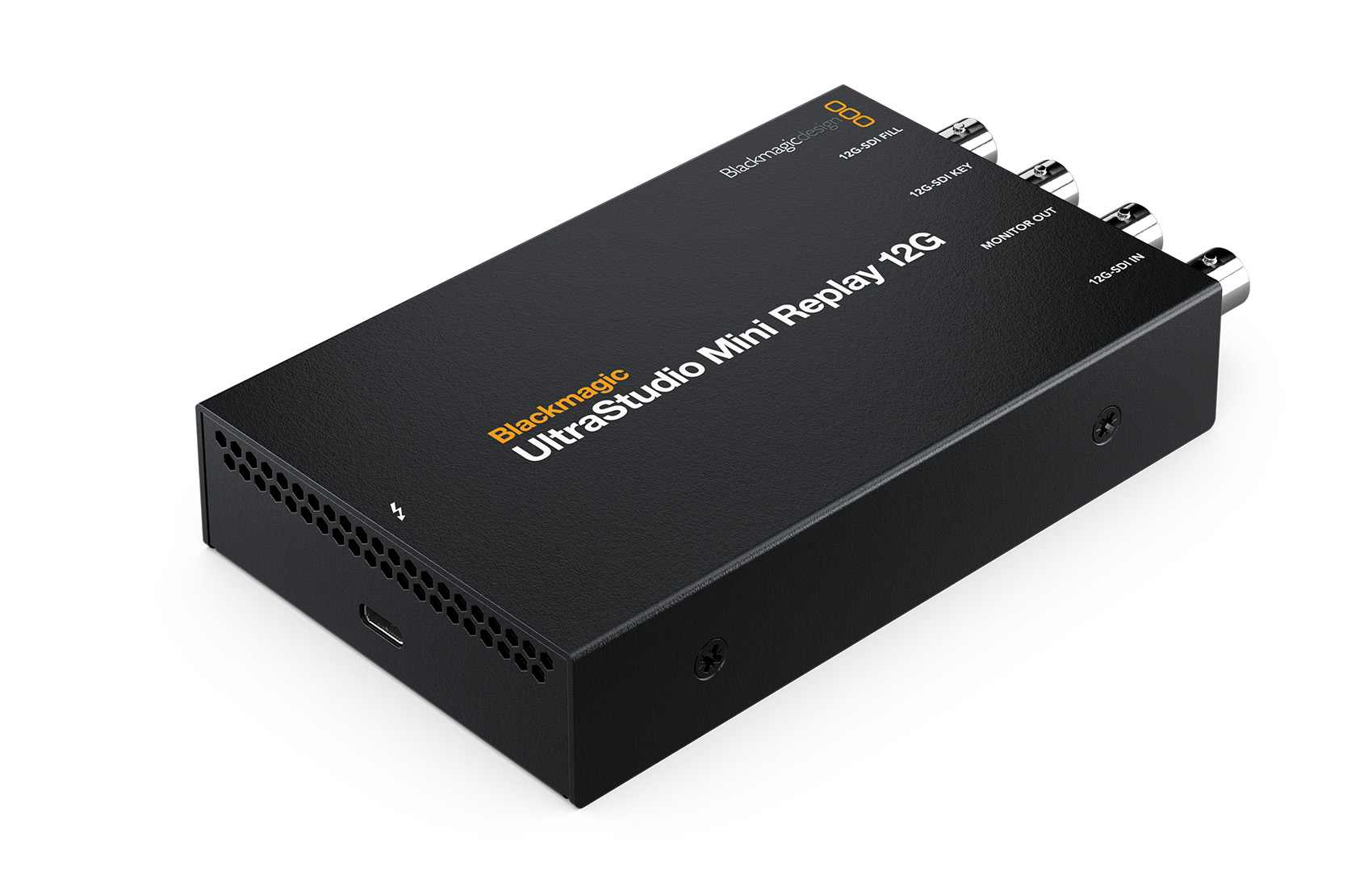

UltraStudio Mini Replay 12G is a compact capture and playback solution for Thunderbolt™ computers that’s perfect for broadcast graphics, AI image processing and live action replay! It connects using a single Thunderbolt cable and provides both capture and playback. There’s both a fill and key output for keying graphics in switchers, plus a separate output for monitoring. UltraStudio Mini Replay 12G has multi-rate 12G-SDI connections which support HD for broadcast video use as well as the latest Ultra HD video standards up to 2160p60.

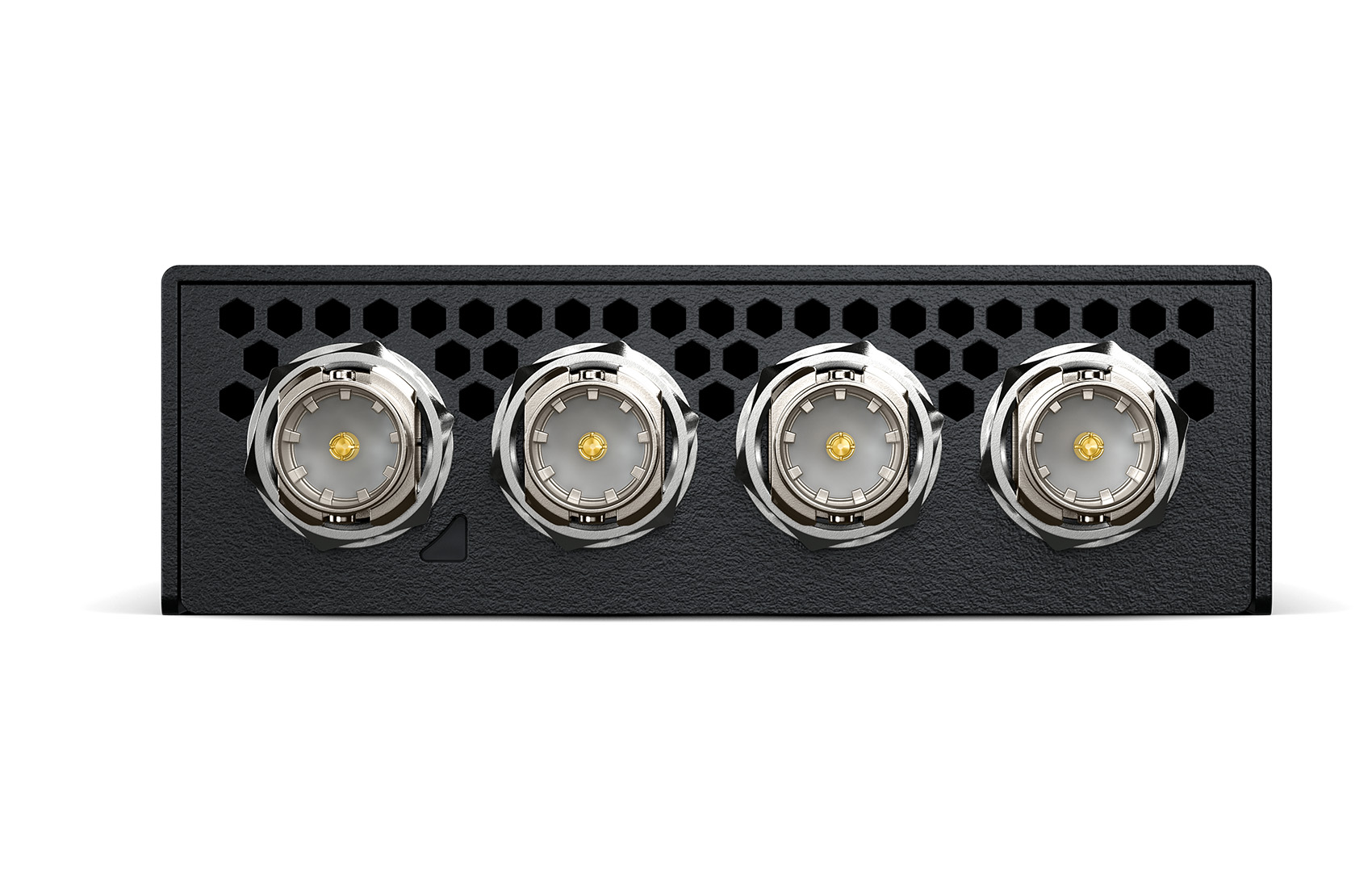

Connections

SDI Video Inputs 1

SDI Video Outputs 2

SDI Fill Outputs 1

SDI Key Outputs 1

SDI Monitor Outputs 1

SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.

SDI Audio Inputs
16 channels embedded audio on SDI input.

SDI Audio Outputs
16 channels embedded audio on SDI output.

Computer Interface

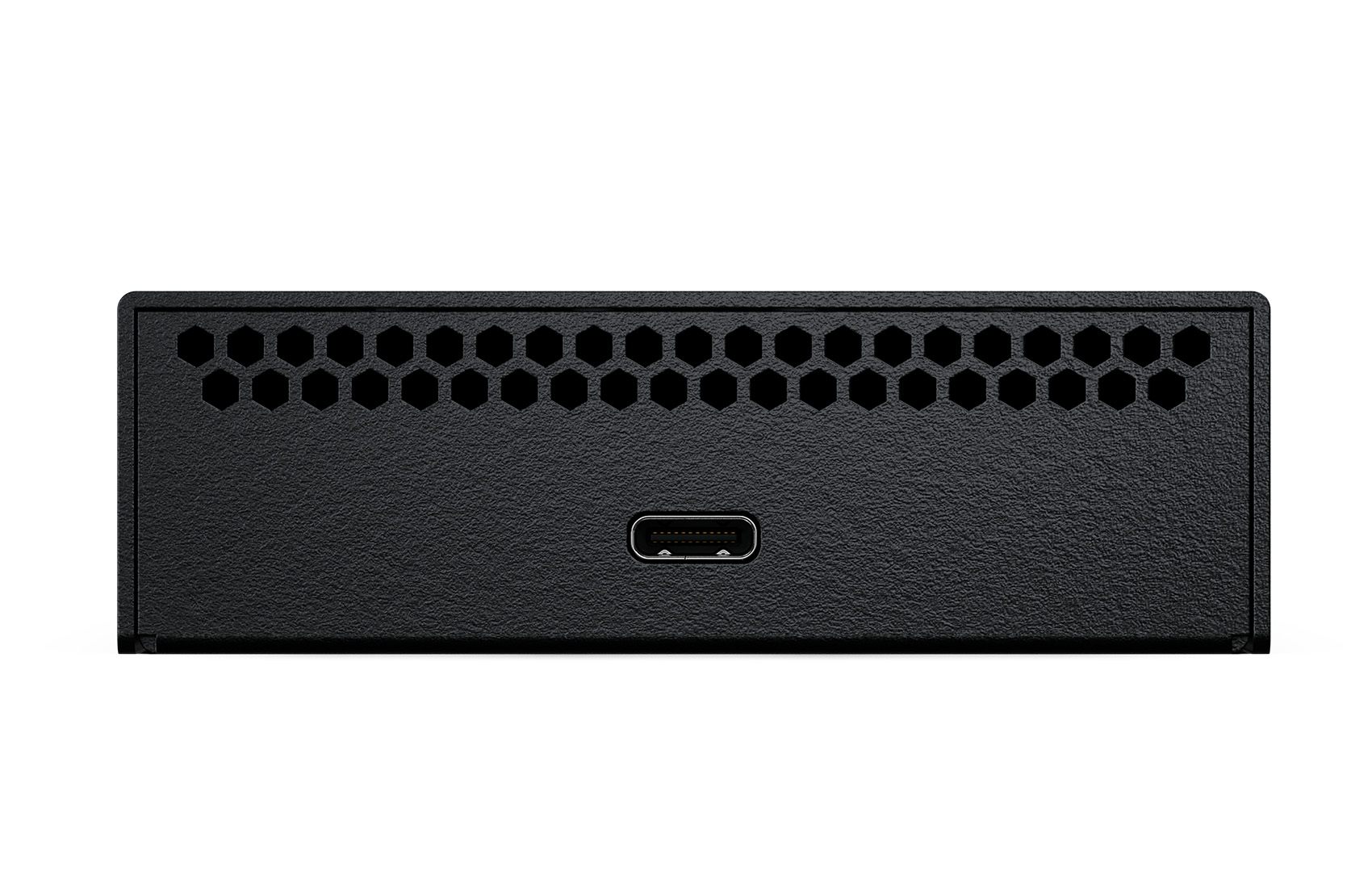

Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)

Source: https://www.blackmagicdesign.com/products/ultrastudiomini/techspecs/W-DLUS-16

STATUS

Status: New
Availability: Available on order: 15 Business Days
PC-Box Type: Video PC-Box

CONNECTIONS

Video inputs: 12G/SDI
No. of Video inputs: 1
Video outputs: 12G-SDI
No. of Video outputs: 2/ 1->(Fill) / 1->(Key) /1-> (Monitor)
Audio outputs: Embedded Audio SDI
PC Connections: Thunderbolt 4.0

GENERAL FEATURES

Max Resolution Supported: 4K: 4096 x 2160pixels (16:9 aspect ratio)
Frames Supported: 24P/25P/30P/50P/60P @4096x2160Pixel
24P/25P/30P/50P/60P @3840x2160Pixel
24P/25P/30P/50i/50P/60i/60P @1920x1080Pixel
50P/60P @1280x720Pixel
Operating System Supported: Windows 10
Windows 11
MAC OS Tahoe
MAC OS Sequoia
Software Supported: Adobe Premiere
Apple Final Cut
Avid Media Composer

MORE SPECIFICATIONS

Extras: 4:4:4 12bit
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer
Final Cut
Power: Through Thunderbolt
Power Consumption: 15W
Country of Origin: Australia
Warranty: 1 Year
