Datavideo PC-Box
4K HDMI to USB-C Capture CAP-4
- Video PC-Box for Capture
- HDMI 4K input & Loop out
- Up to 4K 3840x2160pix
- Embedded audio

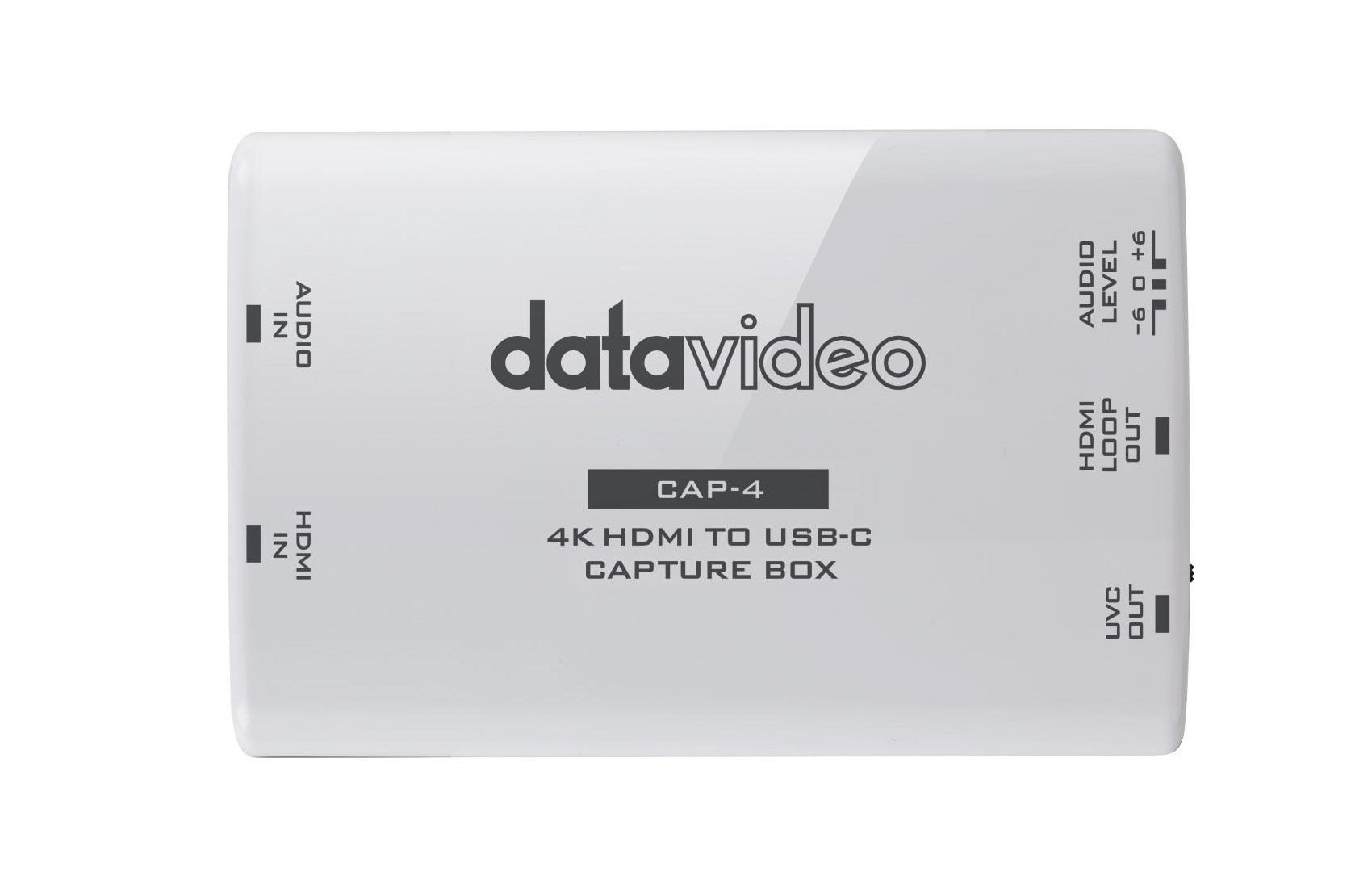

Datavideo CAP-4 4K HDMI to USB-C Capture Box
The Datavideo CAP-4 is a high-performance 4K HDMI capture device designed for professional video production, live streaming, and content creation. Supporting 4K 2160p at 50/60fps, it ensures the video with stunning clarity and detail. Equipped with USB-C 3.2 Gen 2 interface for high-speed data transfer, the CAP-4 offers plug-and-play simplicity across multiple operating systems.
Its versatile audio mixing options allow seamless integration of HDMI-embedded and external line-in audio. Compact, powerful, and easy to use, the CAP-4 is the perfect choice for capturing high-quality video with minimal setup.
USB-C 3.2 Gen 2 Interface
The CAP-4 comes equipped with a high-speed USB-C 3.2 Gen 2 interface, delivering blazing-fast data transfer rates of up to 10Gbps.
Plug-and-Play
Enjoy hassle-free setup with the CAP-4's plug-and-play functionality. Whether you're a seasoned professional or a novice creator, get started instantly across various operating systems.
Compatible with Various Operating Systems
Windows: AMcap, Google Meet, OBS (Open Broadcast Software), TeamViewer, Xsplit Broadcaster, Zoom.us, Potplayer
Linux: VLC, OBS
MAC OS: OBS, VLC
Compatible with Various Operating Systems
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
CONNECTIONS
- Video inputs
-
HDMI
- No. of Video inputs
-
1
- Video outputs
-
HDMI LOOP
USB-C
- No. of Video outputs
-
1/1
- Audio inputs
-
Jack 3.5mm
Embedded audio HDMI
- No. of Audio inputs
-
1/ 1(2-Channel)
- PC Connections
-
USB
GENERAL FEATURES
- Max Resolution Supported
-
4K: 3840 x 2160pixels (16:9 aspect ratio)
- Frames Supported
-
25P/30P/50P/60P @3840x2160Pixel
25P/30P50P/60P @2560x1440Pixel
25P/30P/50P/60P/120P@ 1920x1080Pixel
50P/60P@1280x720Pixel
- Operating System Supported
-
Windows 10
Windows 11
MAC OS High Sierra
- Software Supported
-
VLC
Teamviewer
OBS
MORE SPECIFICATIONS
- Extras
-
Video Format:RGB/YUY2/NV12/I420/P010/MJPEG
USB-C: Up tp 10GBps
- Power
-
Through USB
- Power Consumption
-
4.5Watt
- Country of Origin
-
China
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 15.2 x 11.2 x 3.2 cm
- Total Weight
- 75 gr
- Product Dimensions
- 105x68x23mm
- 1 x CAP-2A
- 1 x USB 3.0 Cable
