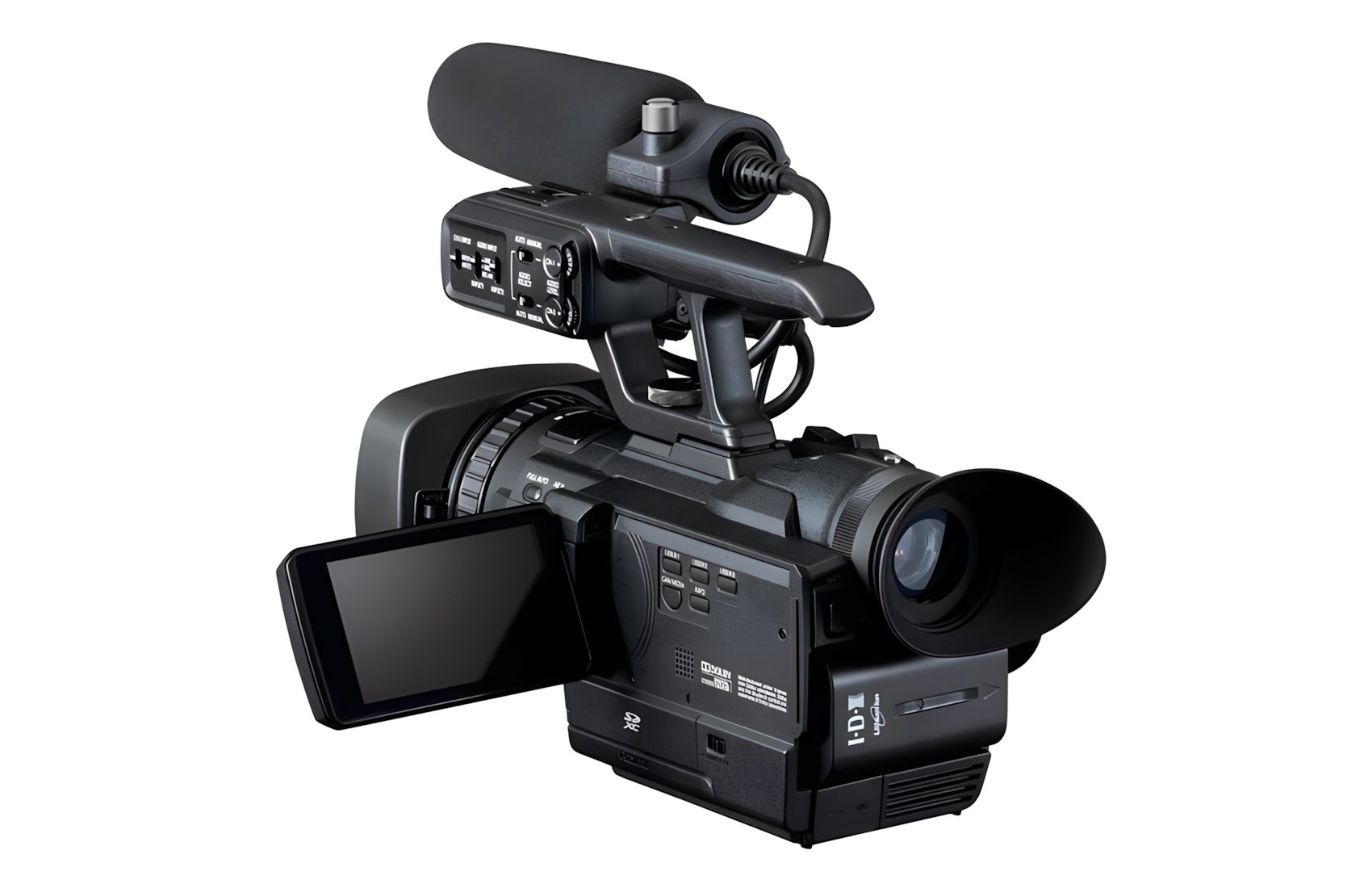

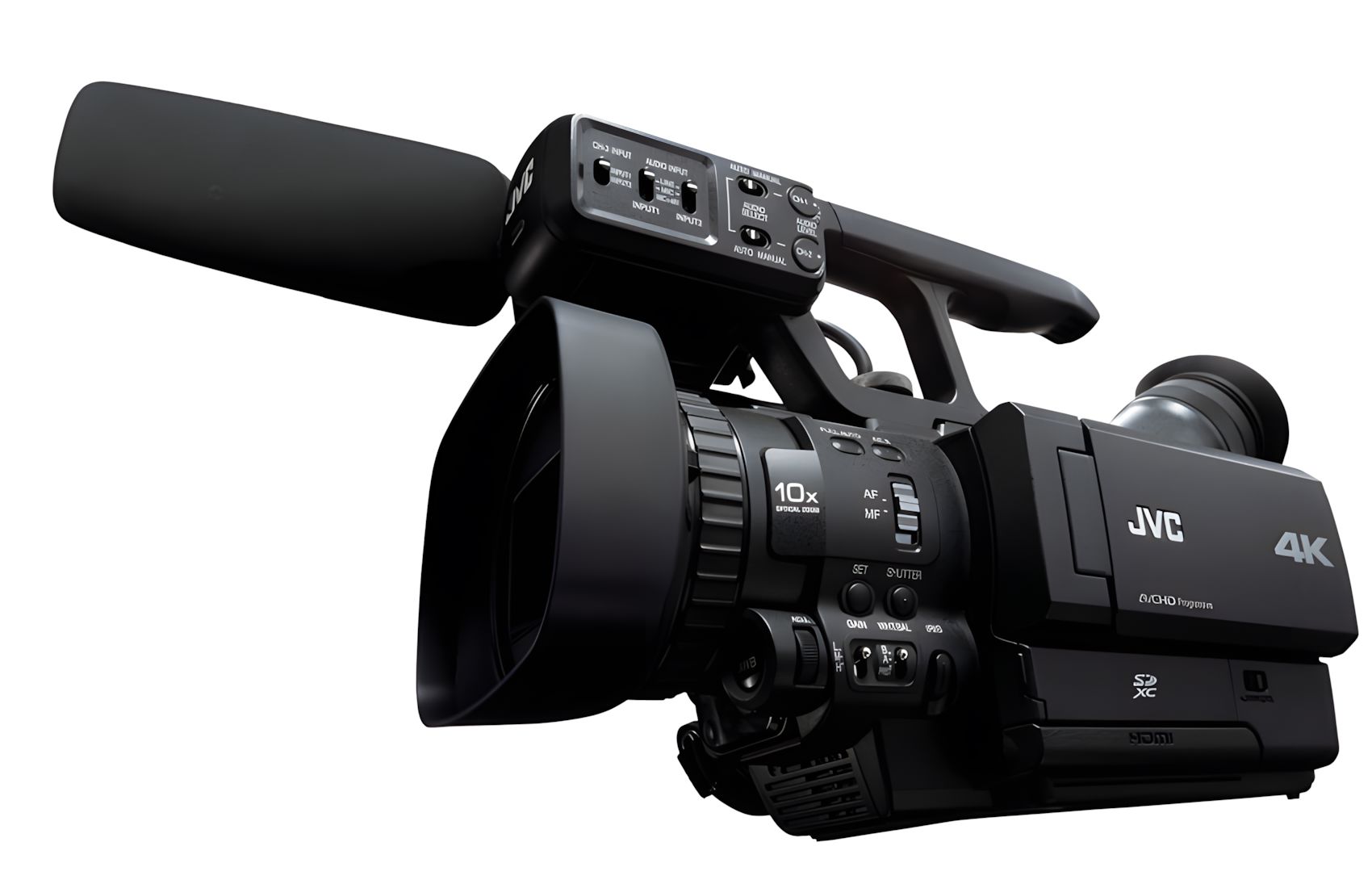

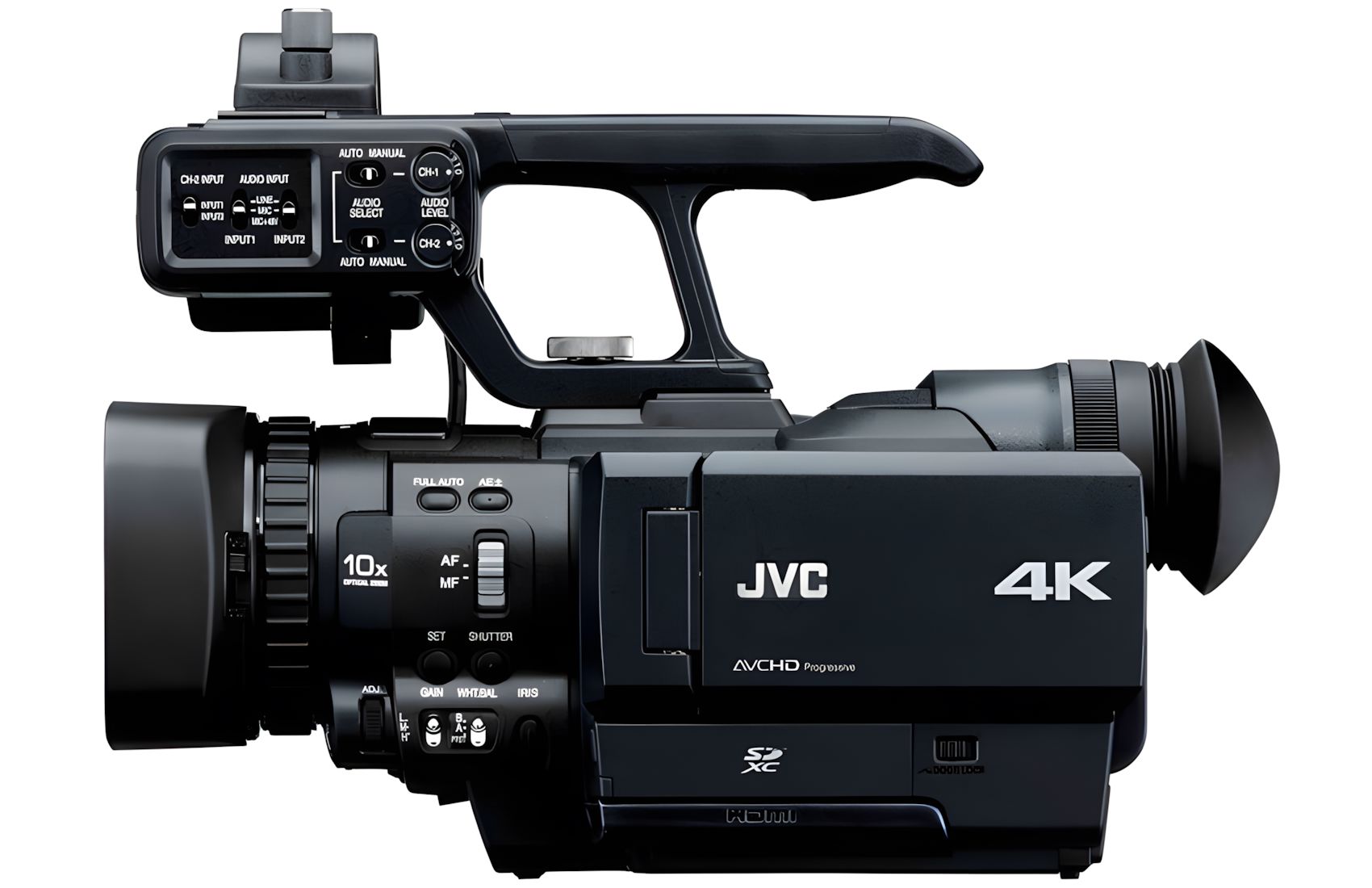

JVC Camera

GY-HMQ10

Handheld 4K Camera
AVCHD 28Mbps/4K H.264 144Mbps
CMOS 1/2" 8.3MP
4K 3840x2160 60P/50P
42-424mm 10X
SD-HC/SD-XC x4
4x HDMI Outputs
XLR Inputs

The GY-HMQ10 is the world's first hand held camcorder capable of capturing and recording real-time video at 4 times the resolution of full HD—3840 x 2160 images at 24p and 50p. Now you can deliver stunning cinema-quality recordings with the same ease of operation as a standard HD video camera.
Great images begin with a great optical system. The GY-HMQ10 employs a razor sharp F2.8 10x zoom lens specifically designed for 4K imaging. A high speed 1/2-inch class CMOS device with 8.3 million active pixels (3840 x 2160) captures live progressive images at up to 50 frames per second. This tremendous amount of data is then processed using an array of custom JVC Falconbrid LSI chips that deBayer the image and provide a live 4K output while simultaneously compressing video for recording onto separate solid state memory cards. 4K recordings up to 2 hours in length can be made using four 32GB SDHC cards.
Operation and form factor are based on JVC's popular GY-HM150 with manual or auto control of focus, iris, gain, shutter, gamma level, color matrix, and white balance.
The GY-HMQ10 also functions as an exceptional HD camcorder thanks to its larger 4K imager and superb optics. It records full HD (1920 x 1080) at 50p or 50i onto a single memory card in the AVCHD format.
Key Features

60p/50p capable 4K (3,840 x 2,160) handheld camcorder
SDHD/SDXC 4-slot simultaneous recording (4K mode at 144Mbps)
4K archive and file merge utility software
Smooth integration with existing NLE systems
Powered by JVC's new Falconbrid processor which allows real-time capture, processing and output of 4K images
Full HD trimming function from 4K content
Live 4K 60p/50p output via HDMI interface

- See more at: http://jvcpro.eu/video/product/154/gy-hmq10e-4k2k-hd-camcorder/#sthash.rCnz7bcm.dpuf

STATUS

Status: Discontinued
Availability: Available on order: 7 Business Days
Camera Type: Handheld Camera
HD Camera
4K Camera

VIDEO SPECIFICATIONS

Slow Motion: No
Rec Media: SD Card x4

LENS SYSTEM

Sensor Type: CMOS
Sensor Size: 1/2" (crop factor 5.41)
Sensor Resolution: 8.3MP
Lens Mount: Fixed
Focal Length (35mm equivalent): 42.4mm to 424mm (35mm equivalent)
Optical Zoom: 10X
Max Aperture: F2.8 to F4.5
Control Rings: 1 Ring(Focus)
Image Stabilizer: Yes
Filter Diameter: 72mm/46mm
Built-in ND Filters: No

CONNECTIONS

Video outputs: Mini HDMI x4
Audio inputs: 3-pin XLR x2
Audio outputs: Jack 3.5mm x1
PC Connections: USB2.0
Other Connections: Remote (Jack 3.5mm)

GENERAL FEATURES

Shutter speed: 1/2sec to 1/4000sec
LCD: 3.5"
Viewfinder: 0.24"

MORE SPECIFICATIONS

Power: JVC SSL-JVC50 Type Battery
Power adapter
No. of battery slots: 1
Power Consumption: 17.5W(7.4V/2.36A - 12V/1.45A)
Country of Origin: Japan
Warranty: 1 Year

PHYSICAL

Total Dimensions (LxWxH): 13.9 x 19.8 x 27.1 cm
Total Weight: 1.7 kg

Battery 4900mAh
AC adaptor
AC cable

Brochure: JVC_GY-HMQ10_Brochure.pdf
Operation Manual: JVC_GY-HMQ10_Manual.pdf
General Features: General_Features.pdf
