Smallrig Adapter
Advanced V-Mount 15mm Rod
MFR# 3203B
BLK# 394-0887
in-Store Price: 107,53€ + VAT
Online Price: 103,23€ + VAT
- Battery Adapter
- V-Lock Plate
- 15mm Rod Adapter
- USB-C (65W), USB-A (36W), D-Tap, 3x DC Out
- Multiple 1/4"-20 & M4 threaded holes
- Power/Charge Indicator Lights
- Supports PD3.0, QC, AFC, Apple, DCP protocols
- Aluminum Material

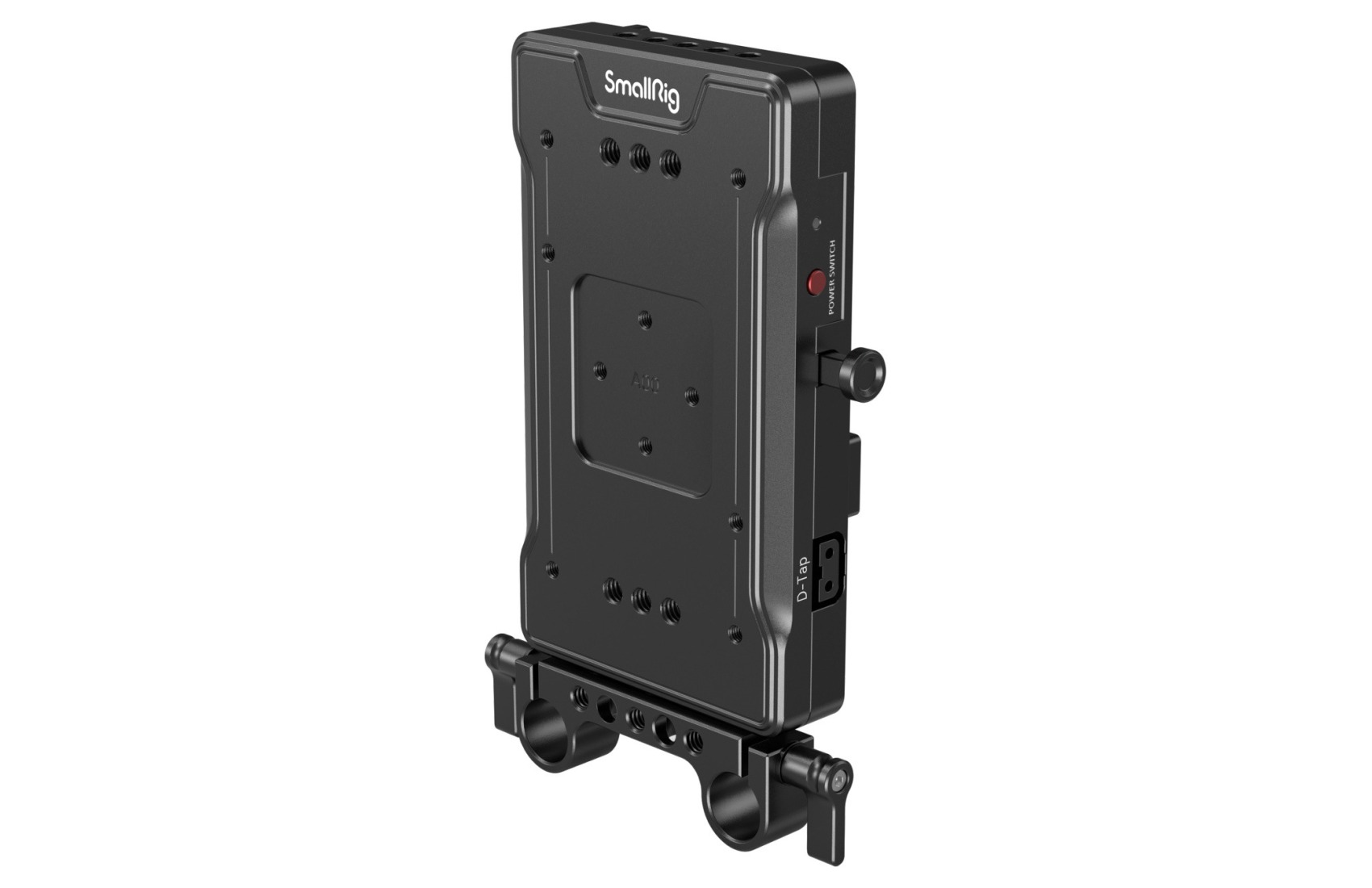

The SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp (3203B) is a versatile power solution for professional camera setups. Compatible with most standard V-mount batteries, this plate offers multiple power output options to supply your camera, monitors, image transmitters, and other accessories.

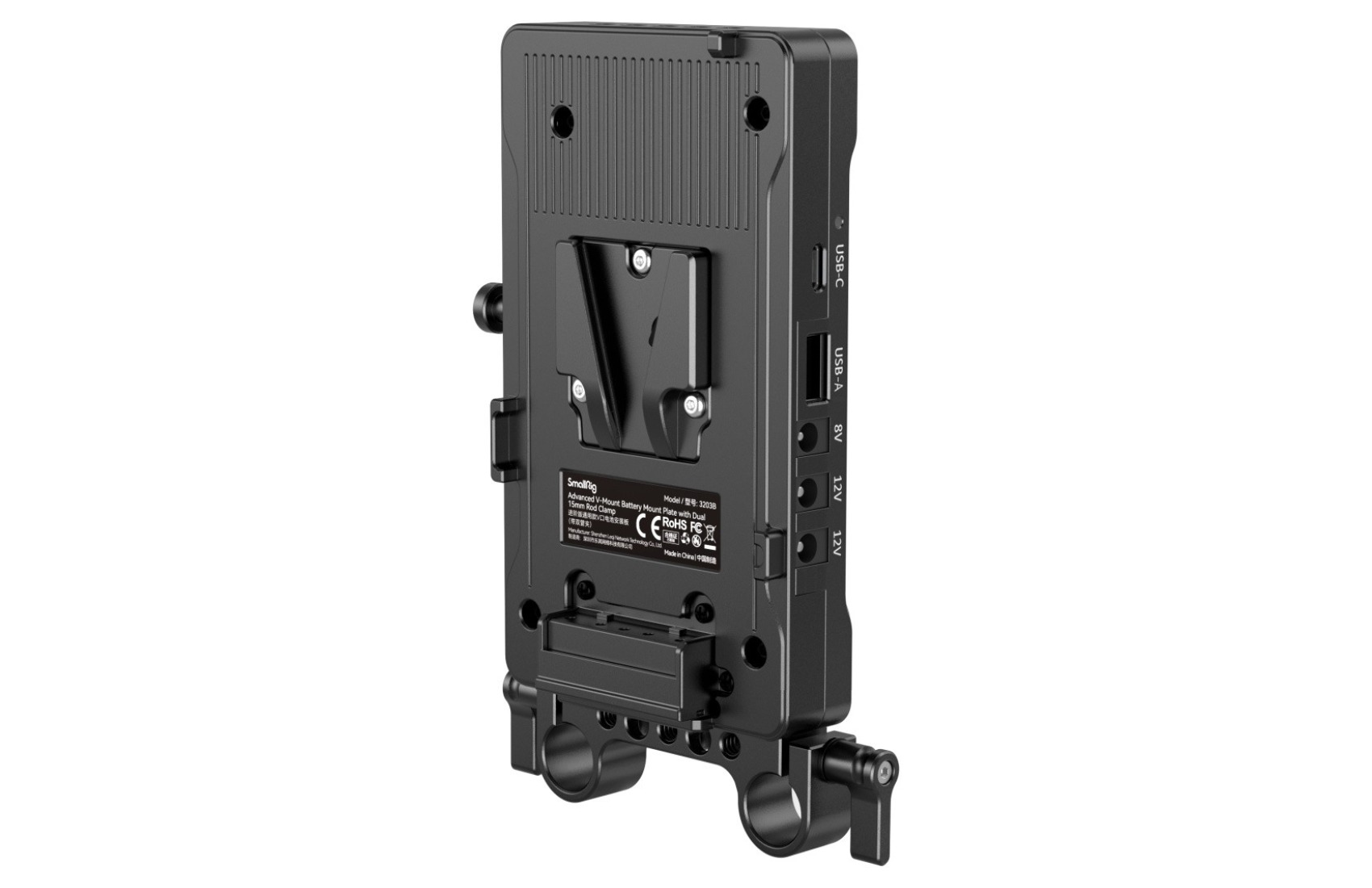

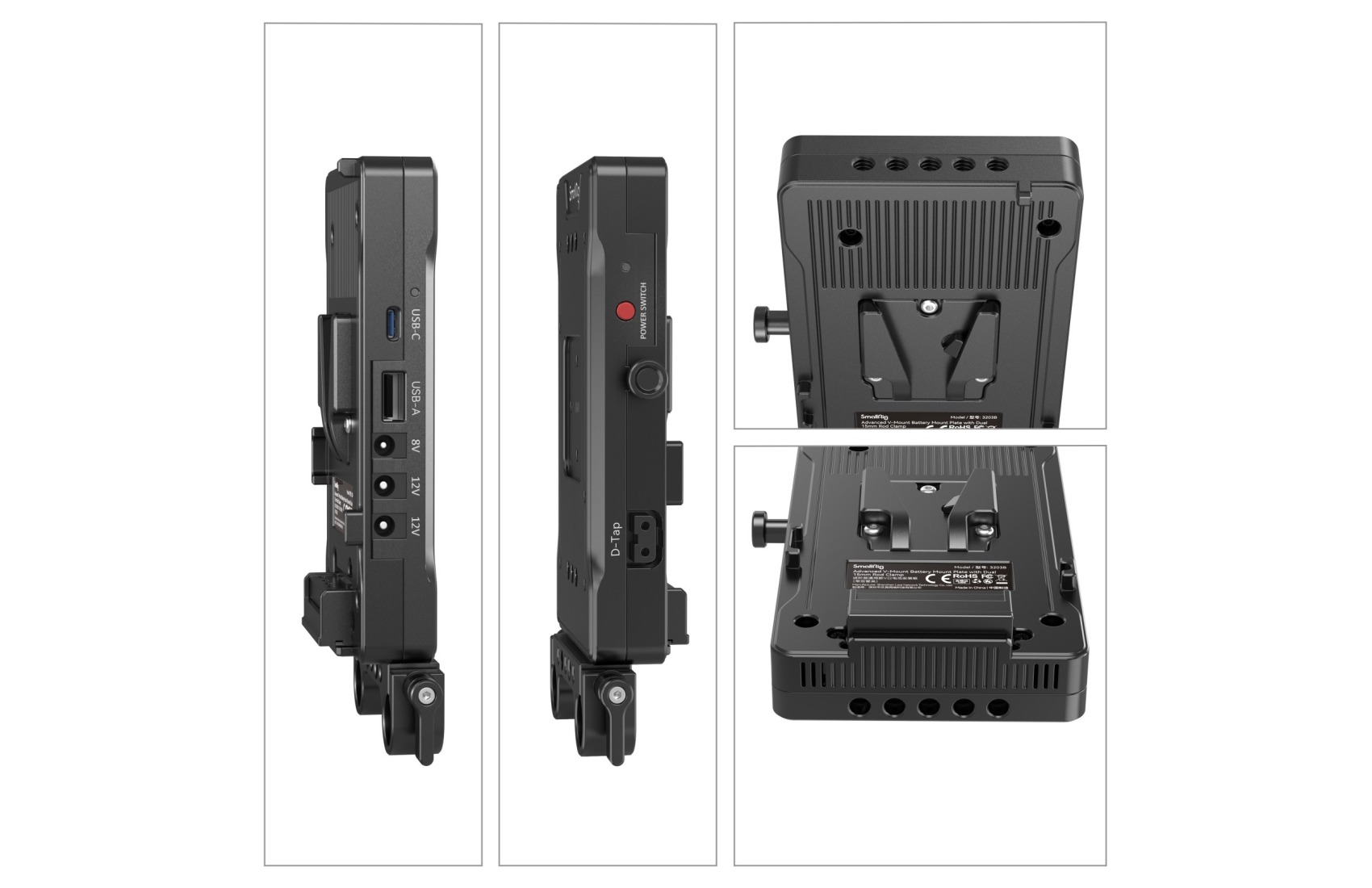

- Features a 65W max USB-C input/output (PD3.0 compatible), 36W max USB-A output, a D-Tap (14.8V) input/output, plus three DC outputs (8V/3A, 12V/3A x2).

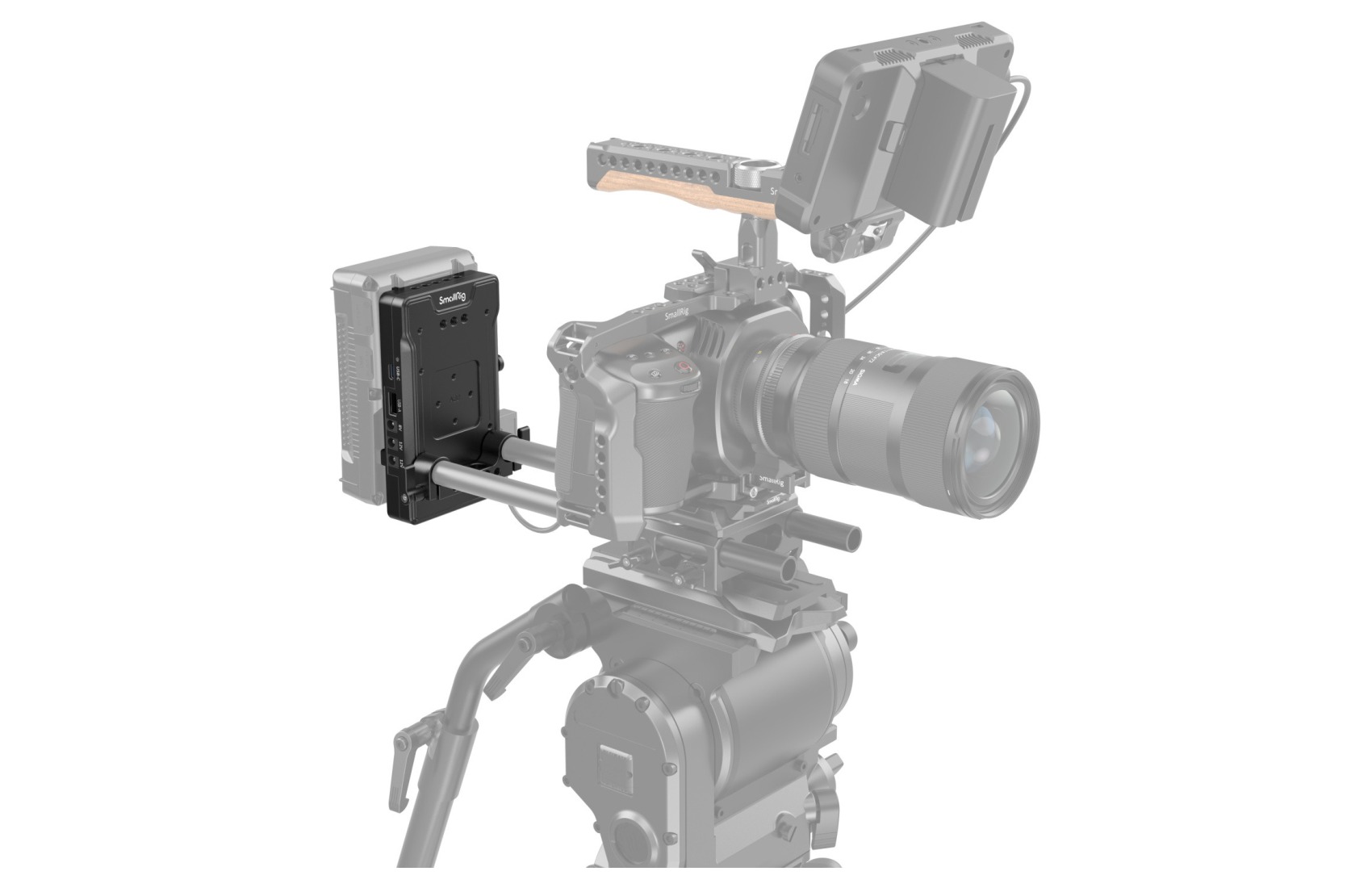

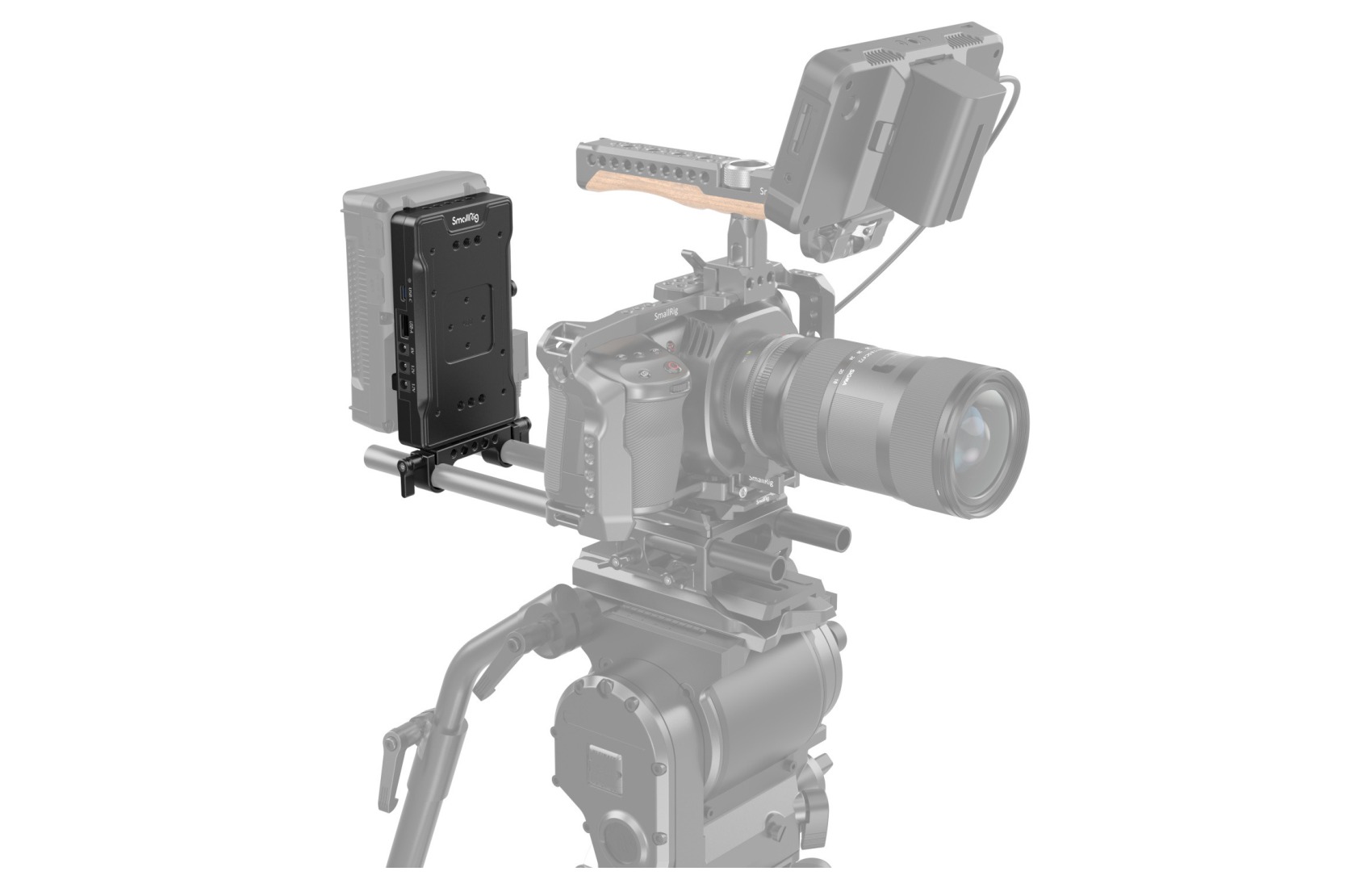

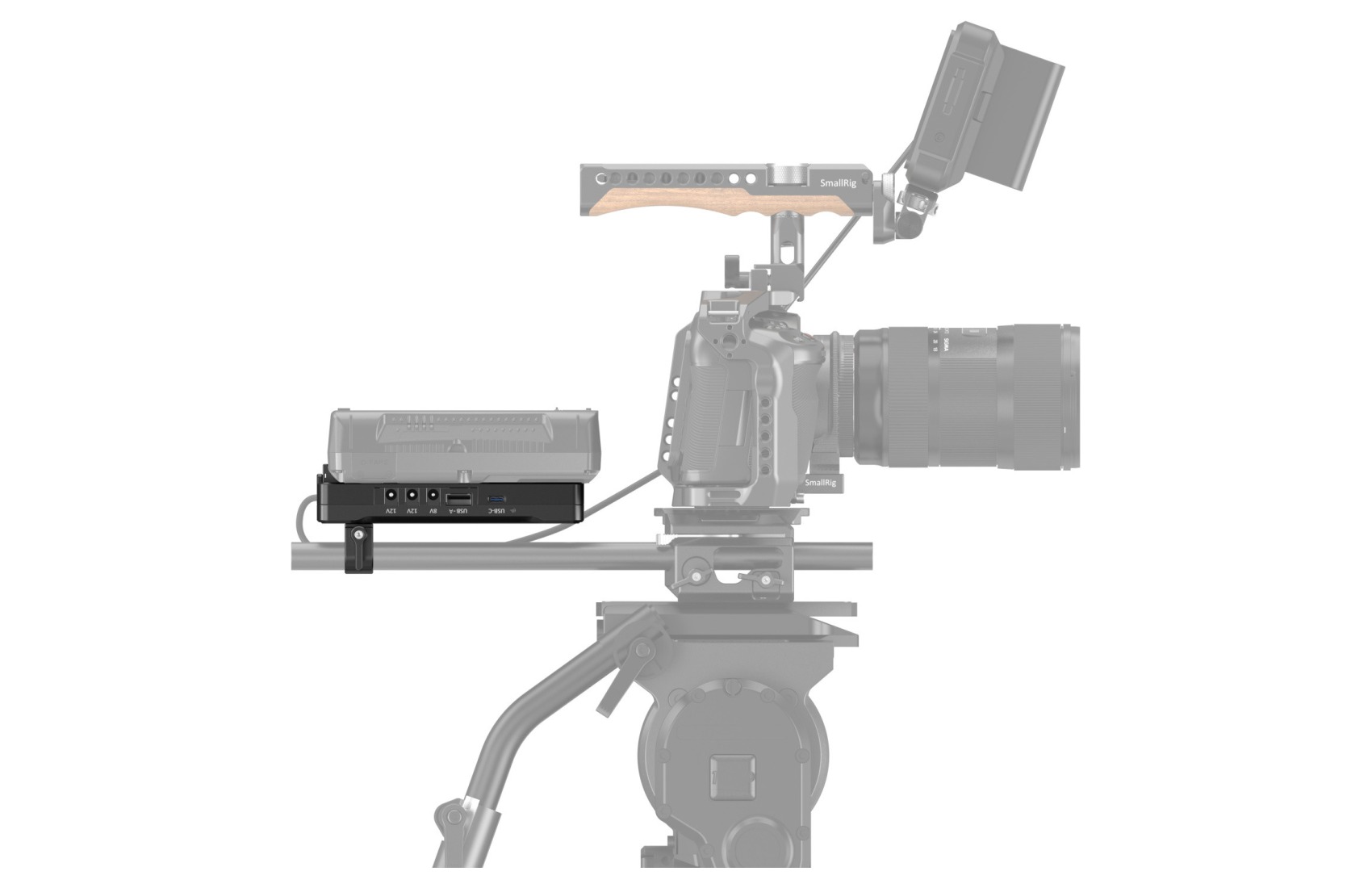

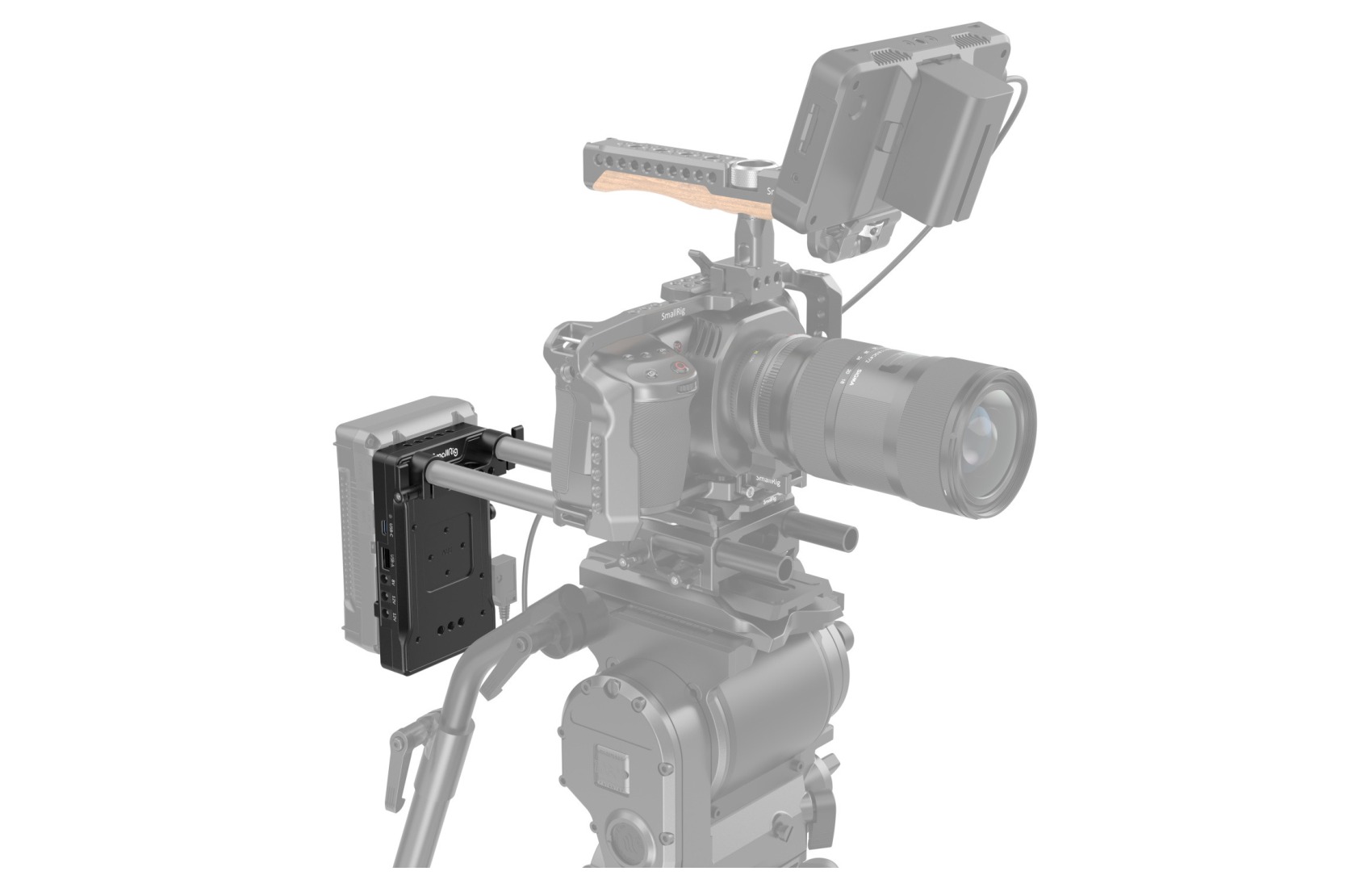

- The dual 15mm rod clamp design allows quick mounting on any 15mm LWS rod system. Multiple 1/4"-20 and M4 threads offer flexible accessory mounting.
- Includes power indicator lights, fast/slow charge status, and an on/off button for convenient control. The robust aluminum alloy construction ensures durability and effective heat dissipation.
Ideal for filmmakers using complex rigs requiring diverse, simultaneous power outputs. V-mount battery required (not included).
Specifications
| Battery Compatibility | V-Mount Battery |
| Material | Aluminum Alloy |
| Dual Rod Diameter | 15mm (for 15mm LWS rod system) |
| Mounting Threads | 1/4"-20, M4 |
| USB-C Input/Output | 65W (max), PD3.0/QC3.0/PPS/AFC/DCP-1.5A/APPLE-2.4A |
| USB-A Output | 36W (max), QC2.0/QC3.0/AFC/DCP-1.5A/APPLE-2.4A |
| D-Tap Input/Output | 14.8V, 11.0V~16.8V, 5A nominal, 10A max |
| DC Output | 8V/3A x1 (DC5521), 12V/3A x2 (DC5525) |
| Input Voltage (Max.) | 16.8V |
| Battery Voltage Range | 11.0V~16.8V |
| Battery Rated Capacity | 3500mAh~20000mAh / 14.8V |
| DC Overcurrent Protection | ≥4.1A |
| Total Maximum Power | 271W (discharging) |
| Charging Indicator | Orange (slow), Ice Blue (fast) |
| Power Indicator | On: powered; Off: off; Blinking: over 65°C |
| Power On/Off Control | Tap: on, Long press 2s: off |
| Compliance | FCC, UKCA, CE, RoHS, ISED, Quality Inspection |
STATUS
- Status
- New
- Availability
- Available on order: 15 Business Days
- Adapter Type
-
Battery Plate
- Battery Type
-
V-Lock
GENERAL FEATURES
- Accessory Mount
-
15mm Rod
- Suitable for
-
Accessories (Monitors, Recorders, Lights)
- External Connections
-
D-TAP
USB-A
USB-C
Barrel 8V
Barrel 12V
- No. of Connections
-
6
- Material
-
Aluminum
MORE SPECIFICATIONS
- Power
-
V-Lock Type Battery
- Country of Origin
-
China
- Warranty
- 1 Year
PHYSICAL
- Total Dimensions (LxWxH)
- 17.4 x 14.5 x 4.7 cm
- Total Weight
- 425 gr

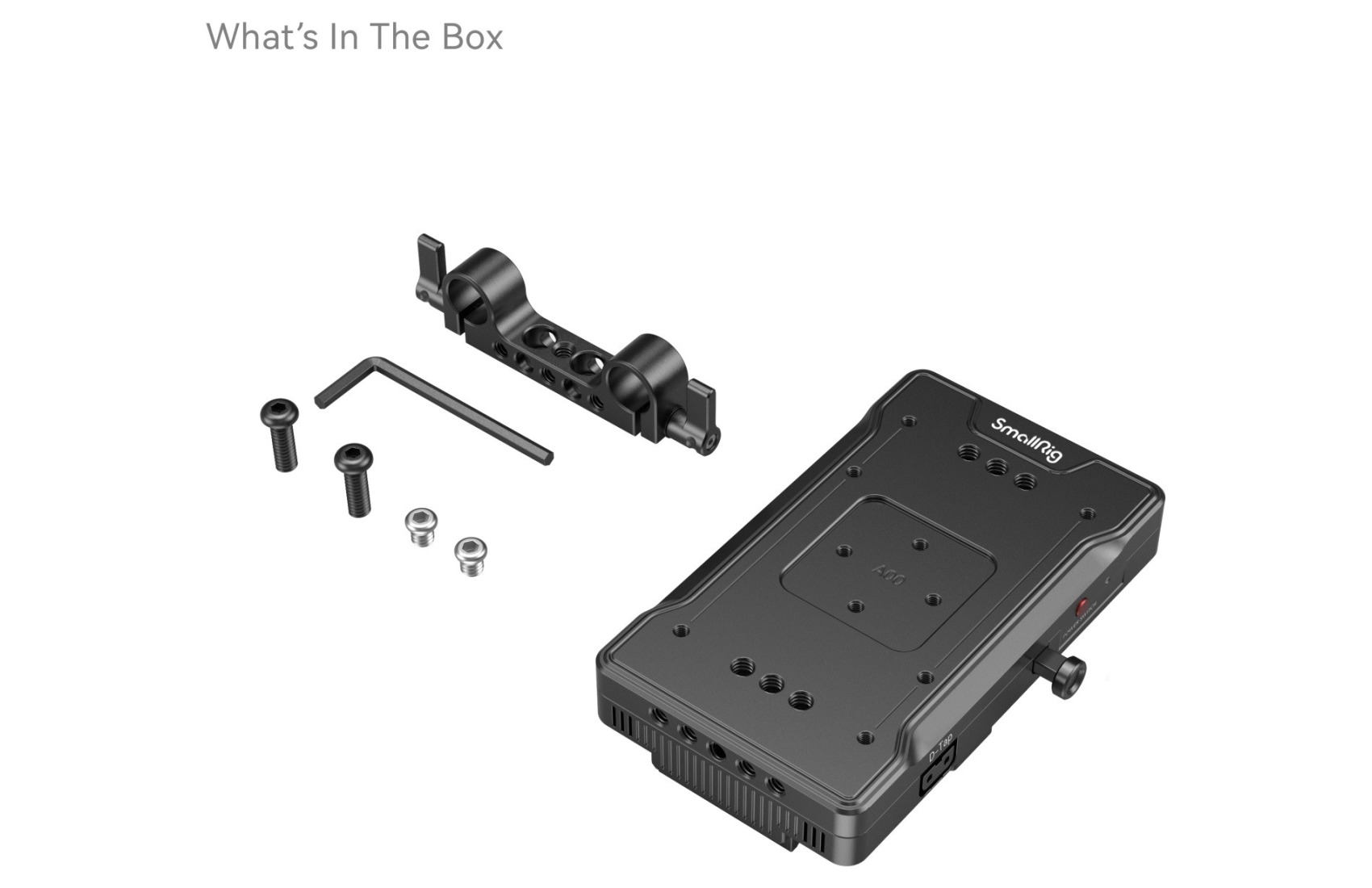

- V-Mount Battery Adapter Plate (Advanced Version) x1
- Dual Rod Clamp x1
- Hex Spanner x1
- Screw x4
- User Manual x1
-
